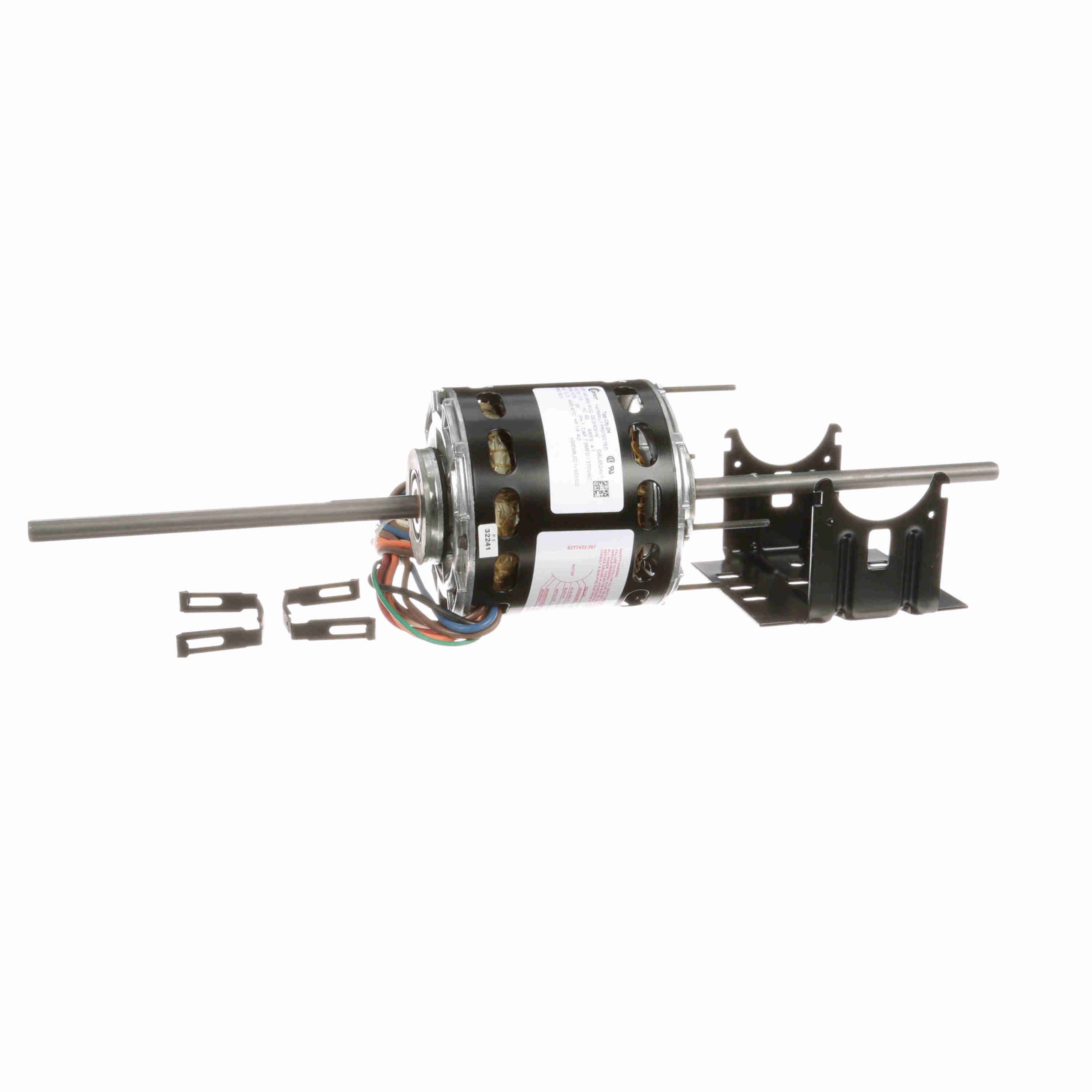

DBL6524V1 – Century 1/4 HP Fan Coil / Room Air Conditioner Motor, 1075 RPM, 115 Volts, 42 Frame, OAO – DBL6524V1

DBL6524V1 – Century 1/4 HP Fan Coil / Room Air Conditioner Motor, 1075 RPM, 115 Volts, 42 Frame, OAO – DBL6524V1

DBL6524V1 Century Fan Coil/Room Air Conditioner Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Fan Coil – Dual Wheel Blower Motor
  • 5″ Diameter – 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Double Shaft with Double Flats
  • 26″ Leads
  • Resilient Base

Century Motors
Regal Beloit

Description

DBL6524V1 – Century 1/4 HP Fan Coil / Room Air Conditioner Motor, 1075 RPM, 115 Volts, 42 Frame, OAO – DBL6524V1

DBL6524V1 Century Fan Coil/Room Air Conditioner Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674018434 Weight: 15 LB
Packaged Length: 26.87 IN Packaged Width: 6.81 IN
Packaged Height: 6.81 IN

Nameplate Specifications

Output HP: 1/4 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 115 V
Current: 4.1 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 42Y Enclosure: Open Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Counterclockwise Lead End
Mounting: Extended Studs Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 21.69 in Frame Length: 4.17 in
Shaft Diameter: 0.500 in Shaft Extension: 8.5 in
