Description

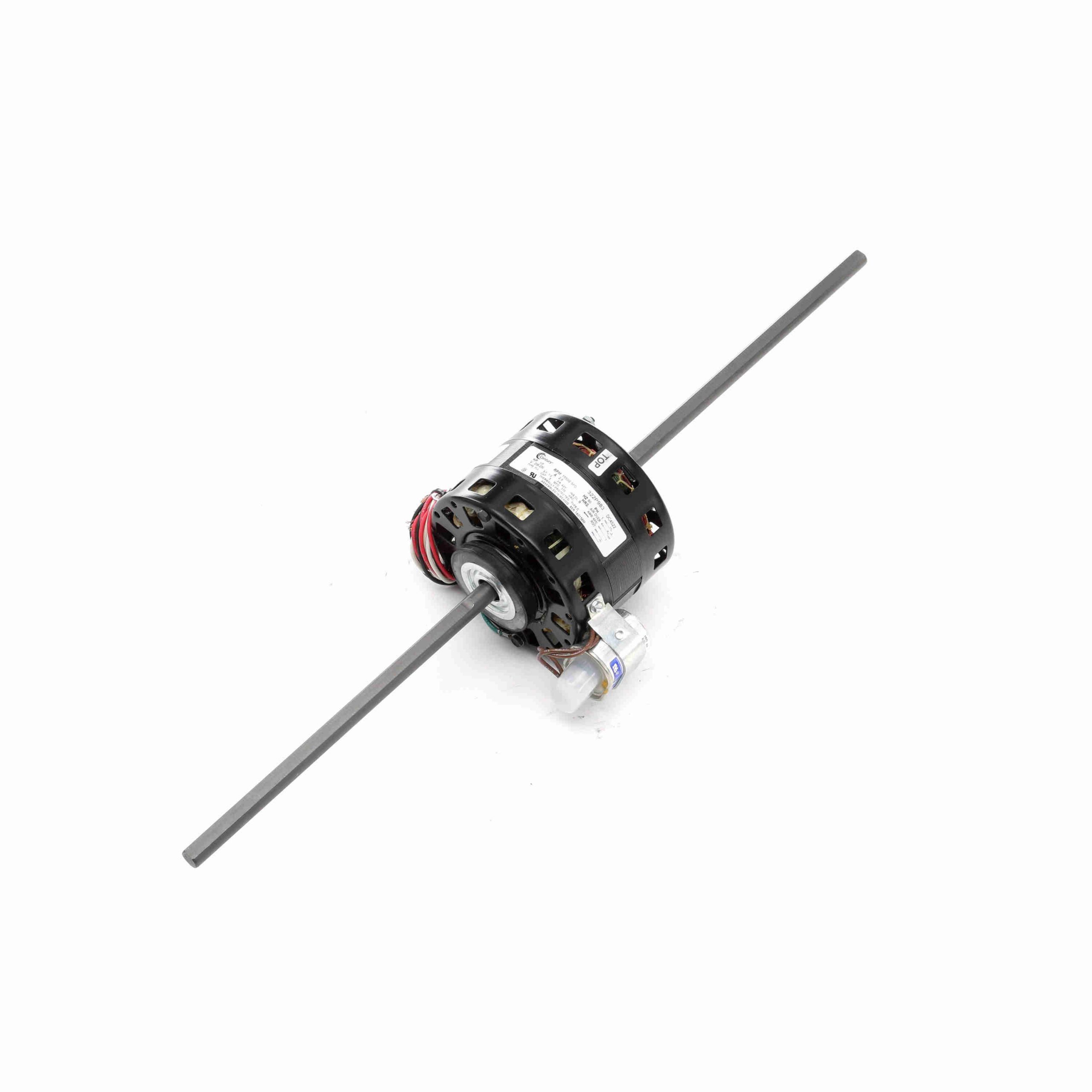

DC4522 – Century 1/5 HP Fan Coil / Room Air Conditioner Motor, 1550 RPM, 2 Speed, 208-230 Volts, 42 Frame, OAO – DC4522
DC4522 Century Fan Coil/Room Air Conditioner Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674018458 |
Weight: |
11 LB |
| Packaged Length: |
27.18 IN |
Packaged Width: |
6.5 IN |
| Packaged Height: |
6.81 IN |
Nameplate Specifications
| Output HP: |
1/5 Hp |
Output KW: |
0.15 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Current: |
2.8 A |
Speed: |
1550 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
42Y |
Enclosure: |
Open Enclosed |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Counterclockwise Lead End |
| Mounting: |
Resilient Rings |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Flat |
| Overall Length: |
24.00 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
10.2X.5X10.2 in |
