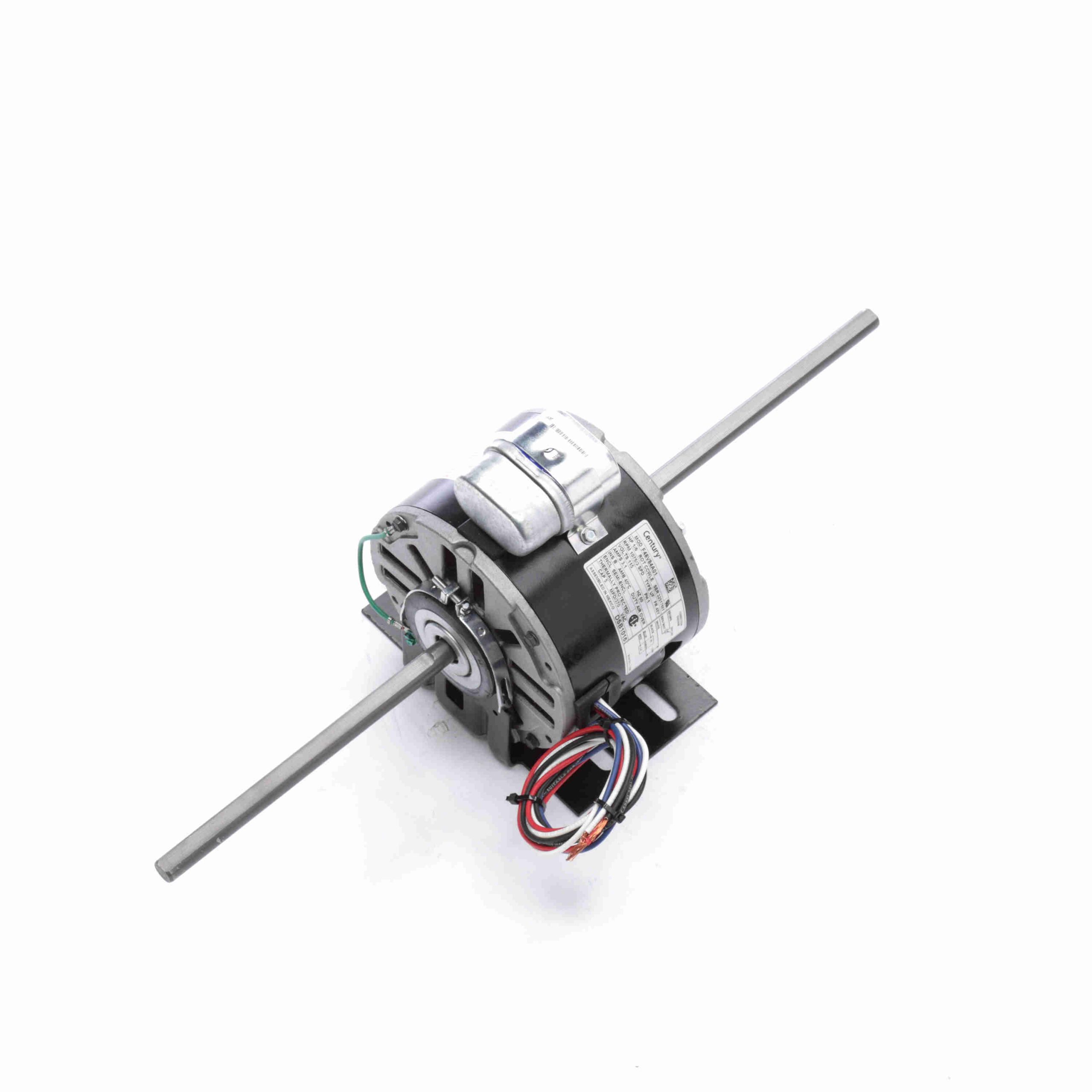

DSB1016 – Century 1/6 HP Fan Coil / Room Air Conditioner Motor, 1075 RPM, 3 Speed, 115 Volts, 48 Frame, Semi Enclosed – DSB1016

DSB1016 – Century 1/6 HP Fan Coil / Room Air Conditioner Motor, 1075 RPM, 3 Speed, 115 Volts, 48 Frame, Semi Enclosed – DSB1016

DSB1016 Century Fan Coil/Room Air Conditioner Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Fan Coil – Room Air Conditioner – Blower Motor
  • 5.6″ Diameter – 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shaft and Lead End End-Frame, Semi-Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Double Shaft with Flat
  • 25″ Leads
  • Reslilient Base

Century Motors
Regal Beloit

Description

DSB1016 – Century 1/6 HP Fan Coil / Room Air Conditioner Motor, 1075 RPM, 3 Speed, 115 Volts, 48 Frame, Semi Enclosed – DSB1016

DSB1016 Century Fan Coil/Room Air Conditioner Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674018618 Weight: 15 LB
Packaged Length: 23 IN Packaged Width: 10 IN
Packaged Height: 9 IN

Nameplate Specifications

Output HP: 1/6 Hp Output KW: 0.13 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.1 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Air Over Insulation Class: B
Frame: 48Y Enclosure: Semi Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Counterclockwise Lead End
Mounting: Resilient Base Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 18.86 in Frame Length: 3.25 in
Shaft Diameter: 0.500 in Shaft Extension: 7.5X.5X7.5 in
