Description

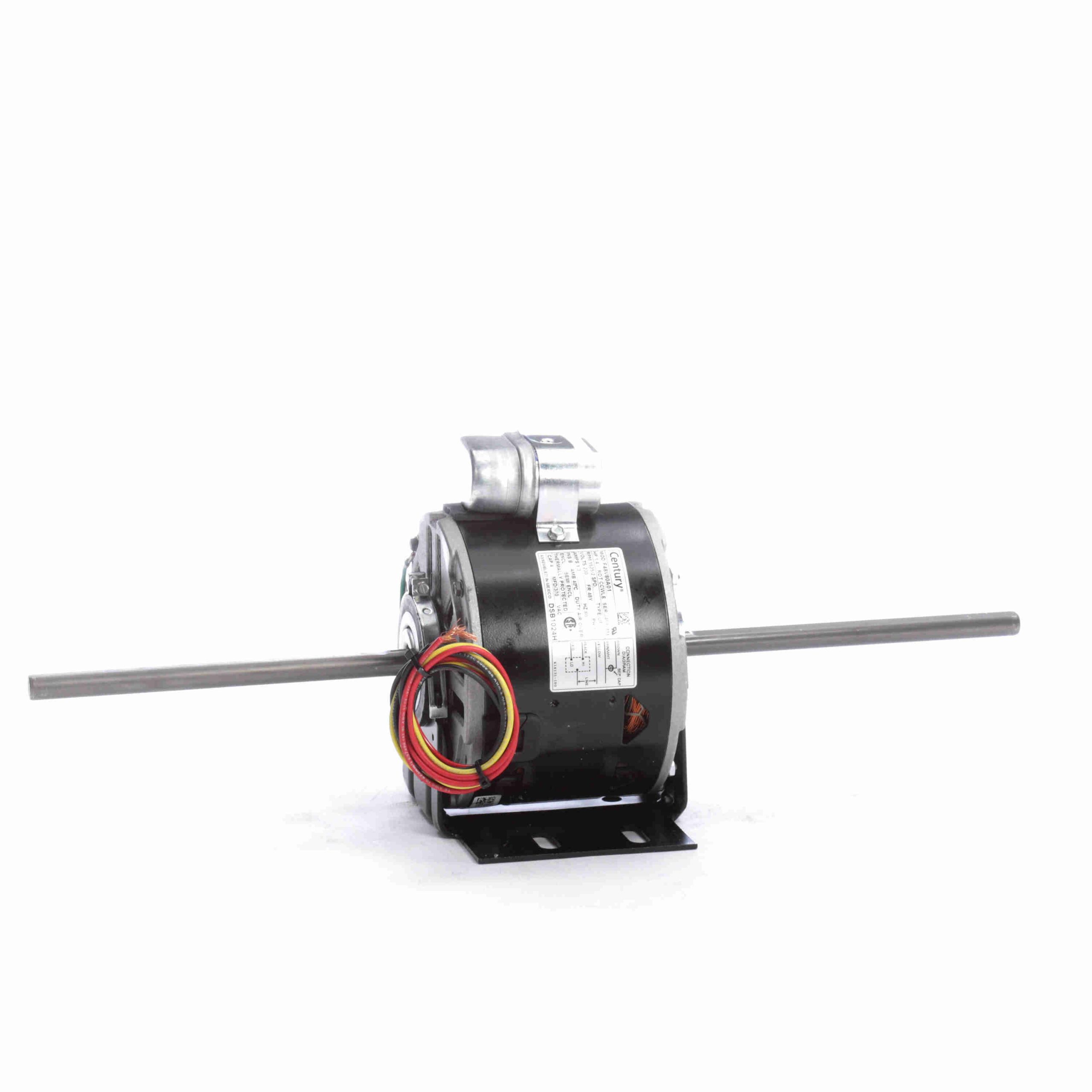

DSB1024H – Century 1/4 HP Fan Coil / Room Air Conditioner Motor, 1625 RPM, 2 Speed, 230 Volts, 48 Frame, Semi Enclosed – DSB1024H
DSB1024H Century Fan Coil/Room Air Conditioner Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674018663 |
Weight: |
13 LB |
| Packaged Length: |
23 IN |
Packaged Width: |
10 IN |
| Packaged Height: |
9 IN |
Nameplate Specifications
| Output HP: |
1/4 Hp |
Output KW: |
0.19 kW |
| Frequency: |
60 Hz |
Voltage: |
230 V |
| Current: |
1.3 A |
Speed: |
1625 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous Air Over |
Insulation Class: |
B |
| Frame: |
48Y |
Enclosure: |
Semi Enclosed |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Counterclockwise Lead End |
| Mounting: |
Resilient Base |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Flat |
| Overall Length: |
19.11 in |
Frame Length: |
3.63 in |
| Shaft Diameter: |
0.500 in |
Shaft Extension: |
7.5X.5X7.5 in |
Century Motors
Regal Beloit
