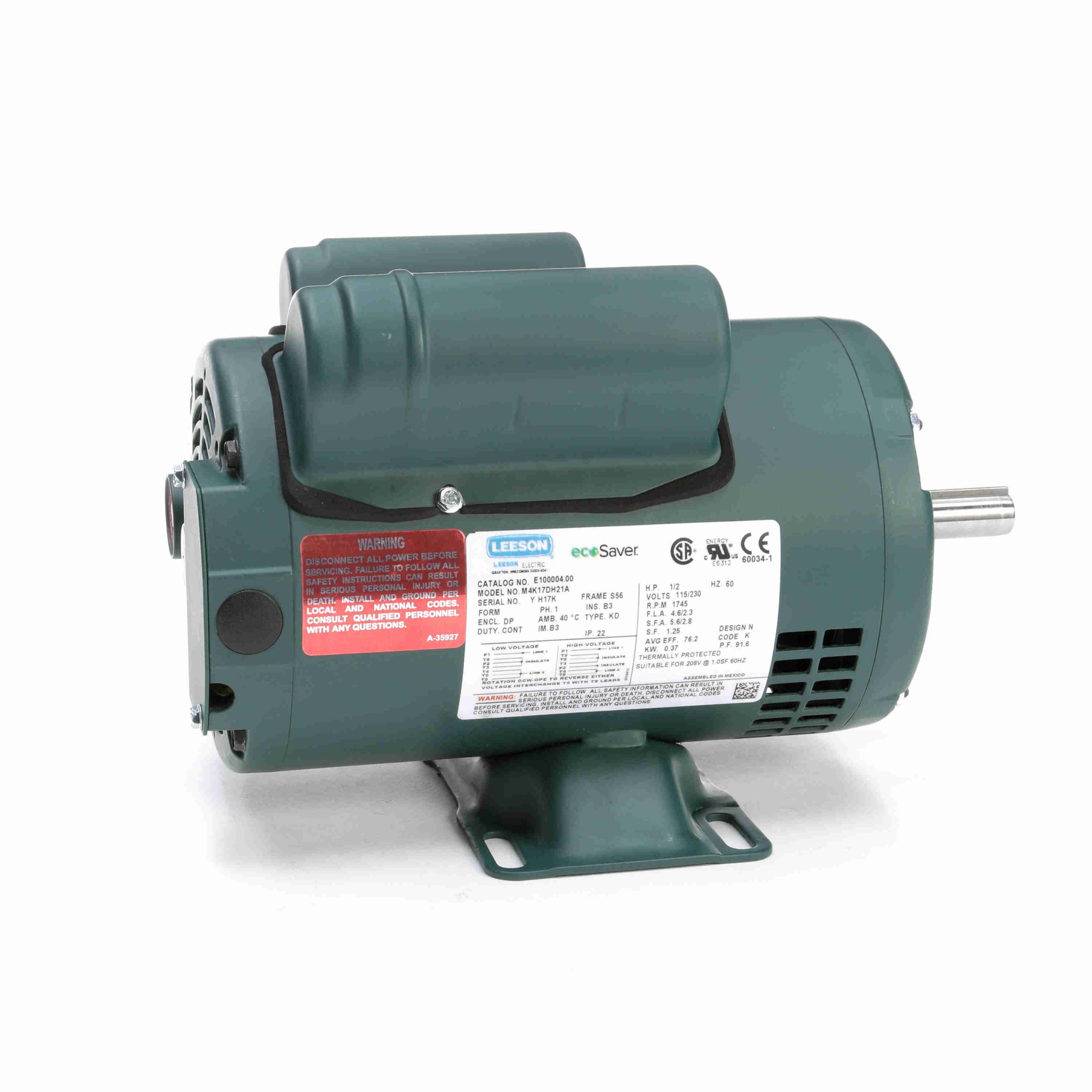

E100004.00 – Leeson 0.50 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – E100004.00

E100004.00 – Leeson 0.50 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – E100004.00

E100004.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Durable rolled steel construction
  • NEMA® design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

Leeson Motors
Regal Beloit

Original price was: $952.00.Current price is: $678.59.

Description

E100004.00 – Leeson 0.50 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – E100004.00

E100004.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720990766 Weight: 23 LB
Packaged Length: 16.12 IN Packaged Width: 10.25 IN
Packaged Height: 9.12 IN

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 4.6/2.3 A Speed: 1745 rpm
Service Factor: 1.25 Phase: 1
Efficiency: 76.2 % Power Factor: 91.6
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: K
Frame: S56 Enclosure: Drip Proof
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.49 in
Frame Length: 7.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 16.20 704.0 75.40 309.0 0 0.00 0.0 0.50
Full Load 2.30 100.0 24.40 100.0 1,745 0.49 91.6 0.50
Locked-Rotor 17.70 770.0 75.60 310.0 0 0.00 0.0 0.50
Break-Down 7.70 335.0 60.40 248.0 1,495 1.52 85.0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 135 % 150 %
Current (Amps) 0.90 1.10 1.50 1.90 2.30 2.60 2.80 3.03 3.40
Rated Output (KW) 0.11 0.20 0.29 0.39 0.49 0.56 0.60 0.65 0.72
Efficiency (%) 0.0 49.3 66.0 73.7 76.2 77.8 77.9 77.8 77.4
Power Factor (%) 51.8 76.8 86.1 89.8 91.6 91.9 92.3 92.5 92.5
Speed (RPM) 1,795 1,785 1,775 1,760 1,745 1,735 1,730 1,720 1,710
Temp. Rise @ FL 0.0 0.0 0.0 0.0 25.0 0.0 30.0 0.0 0.0
Torque (ft-lbs) 0.00 6.10 12.20 18.30 24.40 28.10 30.50 33.00 36.60
