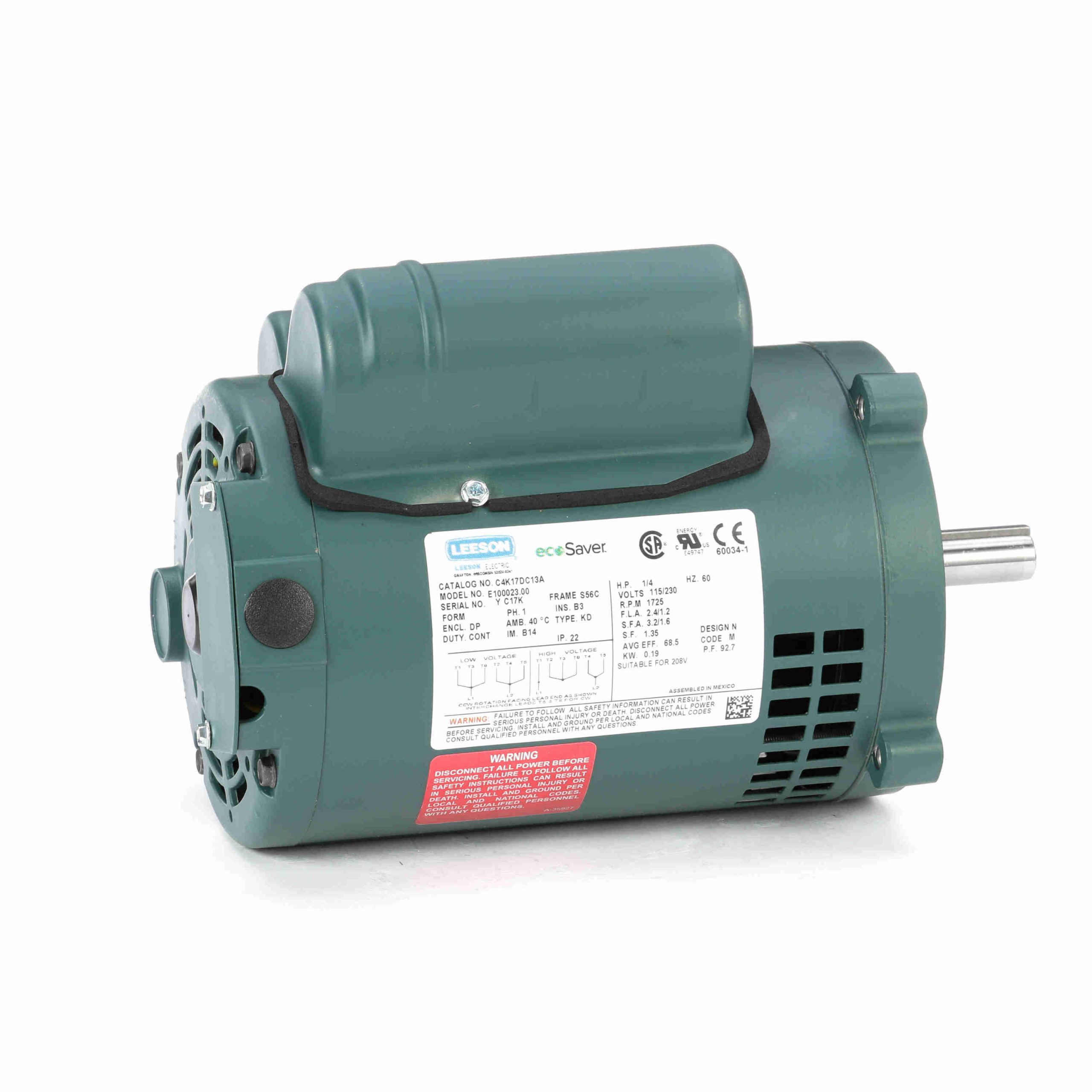

E100023.00 – Leeson 0.25 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56C Frame, ODP – E100023.00

E100023.00 – Leeson 0.25 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56C Frame, ODP – E100023.00

E100023.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Durable rolled steel construction
  • NEMA design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

Leeson Motors
Regal Beloit

Description

E100023.00 – Leeson 0.25 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56C Frame, ODP – E100023.00

E100023.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720036235 Weight: 17 LB
Packaged Length: 13.75 IN Packaged Width: 7.88 IN
Packaged Height: 8.75 IN

Nameplate Specifications

Output HP: 0.25 Hp Output KW: 0.19 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 2.4/1.2 A Speed: 1725 rpm
Service Factor: 1.35 Phase: 1
Efficiency: 68.5 % Power Factor: 92.7
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: M
Frame: S56C Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 10.74 in
Frame Length: 6.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 3.94 328.0 31.00 258.0 1,510 0.80 88.3 0.25
Locked-Rotor 10.70 892.0 40.70 339.0 0 0.00 0.0 0.25
Full Load 1.20 100.0 12.00 100.0 1,745 0.27 92.7 0.25
Pull-Up 10.70 892.0 40.70 339.0 0 0.00 0.0 0.25

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 135 % 150 %
Current (Amps) 0.51 0.64 0.81 1.02 1.20 1.39 1.49 1.60 1.73
Rated Output (KW) 0.07 0.12 0.17 0.21 0.27 0.30 0.32 0.34 0.37
Efficiency (%) 0.0 40.0 57.4 65.7 68.5 71.6 72.1 72.6 73.2
Power Factor (%) 62.4 80.6 88.3 91.3 92.7 92.9 93.2 93.7 93.5
Speed (RPM) 1,795 1,785 1,770 1,760 1,745 1,735 1,730 1,725 1,715
Temp. Rise @ FL 0.0 0.0 0.0 0.0 20.0 0.0 0.0 25.0 0.0
Torque (ft-lbs) 0.00 3.00 6.00 9.00 12.00 13.80 15.00 16.20 18.00
