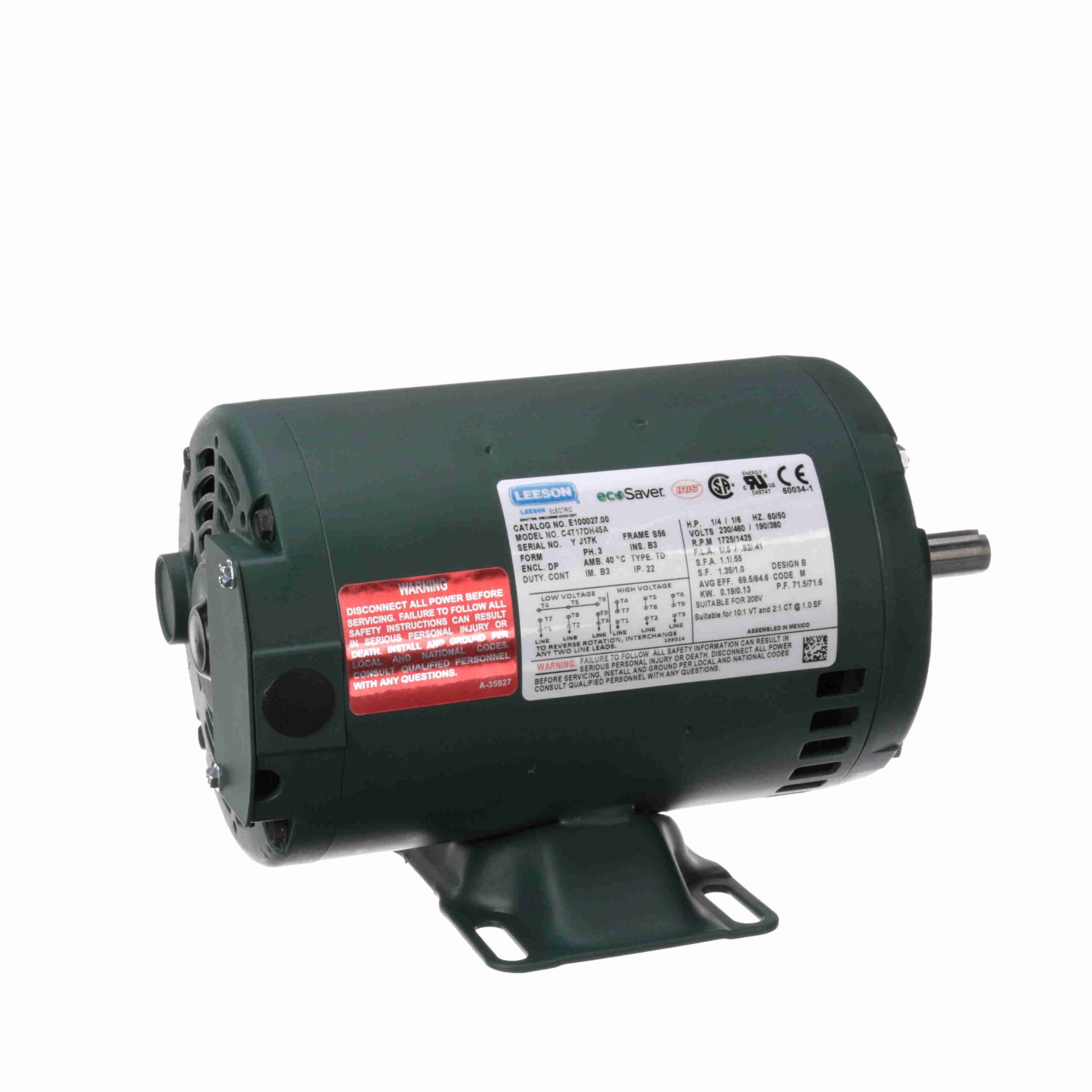

E100027.00 – Leeson 0.25 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56 Frame, ODP – E100027.00

E100027.00 – Leeson 0.25 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56 Frame, ODP – E100027.00

E100027.00 Leeson Three Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Premium efficient ratings
  • Inverter-rated
  • Nameplated for 50 Hz operation
  • UL recognized and CSA certified
  • Class B insulation systems, Class F 140 frame and higher
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Rolled steel and cast iron designs

Leeson Motors
Regal Beloit

Original price was: $708.00.Current price is: $504.66.

Description

E100027.00 – Leeson 0.25 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56 Frame, ODP – E100027.00

E100027.00 Leeson Three Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720041734 Weight: 20 LB
Packaged Length: 11.69 IN Packaged Width: 8.19 IN
Packaged Height: 7.25 IN

Nameplate Specifications

Output HP: 0.25 Hp Output KW: 0.19 kW
Frequency: 60/50 Hz Voltage: 230/460 V
Current: 1.0/0.50 A Speed: 1725 rpm
Service Factor: 1.35 Phase: 3
Efficiency: 69.5 % Power Factor: 71.5
Duty: Continuous Insulation Class: B
Design Code: B KVA Code: M
Frame: S56 Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 20.8 Ohms Mounting: Rigid base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 10.74 in
Frame Length: 6.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 1.90 380.0 52.10 434.0 1,300 1.31 86.8 0.25
Locked-Rotor 3.20 640.0 47.80 398.0 0 0.00 0.0 0.25
Pull-Up 3.10 620.0 44.80 373.0 0 0.00 0.0 0.25
Full Load 0.50 100.0 12.00 100.0 1,740 0.27 71.5 0.25

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 135 % 150 %
Current (Amps) 0.34 0.36 0.39 0.43 0.50 0.51 0.53 0.55 0.60
Rated Output (KW) 0.06 0.12 0.17 0.22 0.27 0.30 0.32 0.35 0.38
Efficiency (%) 0.0 41.3 56.6 64.6 69.5 70.3 71.1 71.6 72.0
Power Factor (%) 23.6 39.8 53.2 63.0 71.5 73.9 76.2 78.5 80.4
Speed (RPM) 1,800 1,780 1,765 1,755 1,740 1,730 1,725 1,720 1,710
Temp. Rise @ FL 0.0 0.0 0.0 0.0 15.0 0.0 0.0 20.0 0.0
Torque (ft-lbs) 0.00 3.00 6.00 9.00 12.00 13.80 15.00 16.20 18.00
