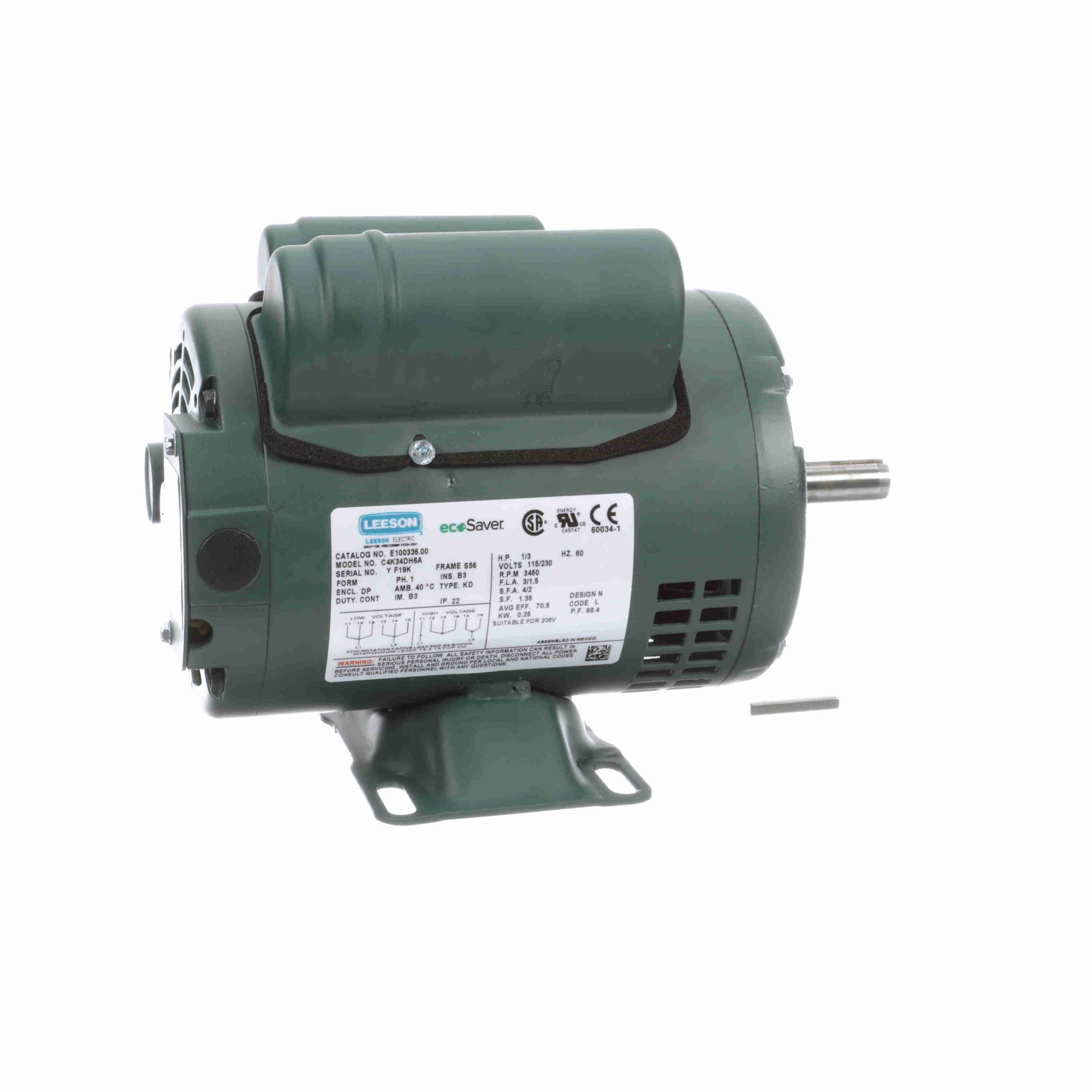

E100336.00 – Leeson 0.33 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, ODP – E100336.00
E100336.00 Leeson Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720004845 |
Weight: |
22 LB |
| Packaged Length: |
15.82 IN |
Packaged Width: |
12.56 IN |
| Packaged Height: |
9.38 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
3.0/1.5 A |
Speed: |
3450 rpm |
| Service Factor: |
1.35 |
Phase: |
1 |
| Efficiency: |
70.5 % |
Power Factor: |
98.4 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
N |
KVA Code: |
L |
| Frame: |
S56 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
10.49 in |
| Frame Length: |
6.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
5.10 |
319.0 |
19.00 |
238.0 |
3,110 |
1.04 |
88.4 |
0.33 |
| Locked-Rotor |
13.00 |
812.0 |
23.20 |
290.0 |
0 |
0.00 |
0.0 |
0.33 |
| Pull-Up |
12.60 |
788.0 |
23.20 |
290.0 |
0 |
0.00 |
0.0 |
0.33 |
| Full Load |
1.50 |
100.0 |
8.00 |
100.0 |
3,500 |
0.37 |
98.4 |
0.33 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
135 % |
150 % |
| Current (Amps) |
0.42 |
0.70 |
0.99 |
1.30 |
1.50 |
1.80 |
1.90 |
2.00 |
2.35 |
| Rated Output (KW) |
0.09 |
0.16 |
0.22 |
0.29 |
0.37 |
0.41 |
0.44 |
0.48 |
0.53 |
| Efficiency (%) |
0.0 |
39.4 |
56.1 |
64.0 |
70.5 |
69.1 |
69.5 |
69.7 |
69.4 |
| Power Factor (%) |
97.4 |
99.9 |
98.8 |
98.4 |
98.4 |
98.2 |
98.0 |
97.8 |
97.4 |
| Speed (RPM) |
3,595 |
3,565 |
3,550 |
3,525 |
3,500 |
3,485 |
3,475 |
3,465 |
3,445 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
10.0 |
0.0 |
0.0 |
15.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
2.00 |
4.00 |
6.00 |
8.00 |
9.20 |
10.00 |
10.80 |
12.00 |
