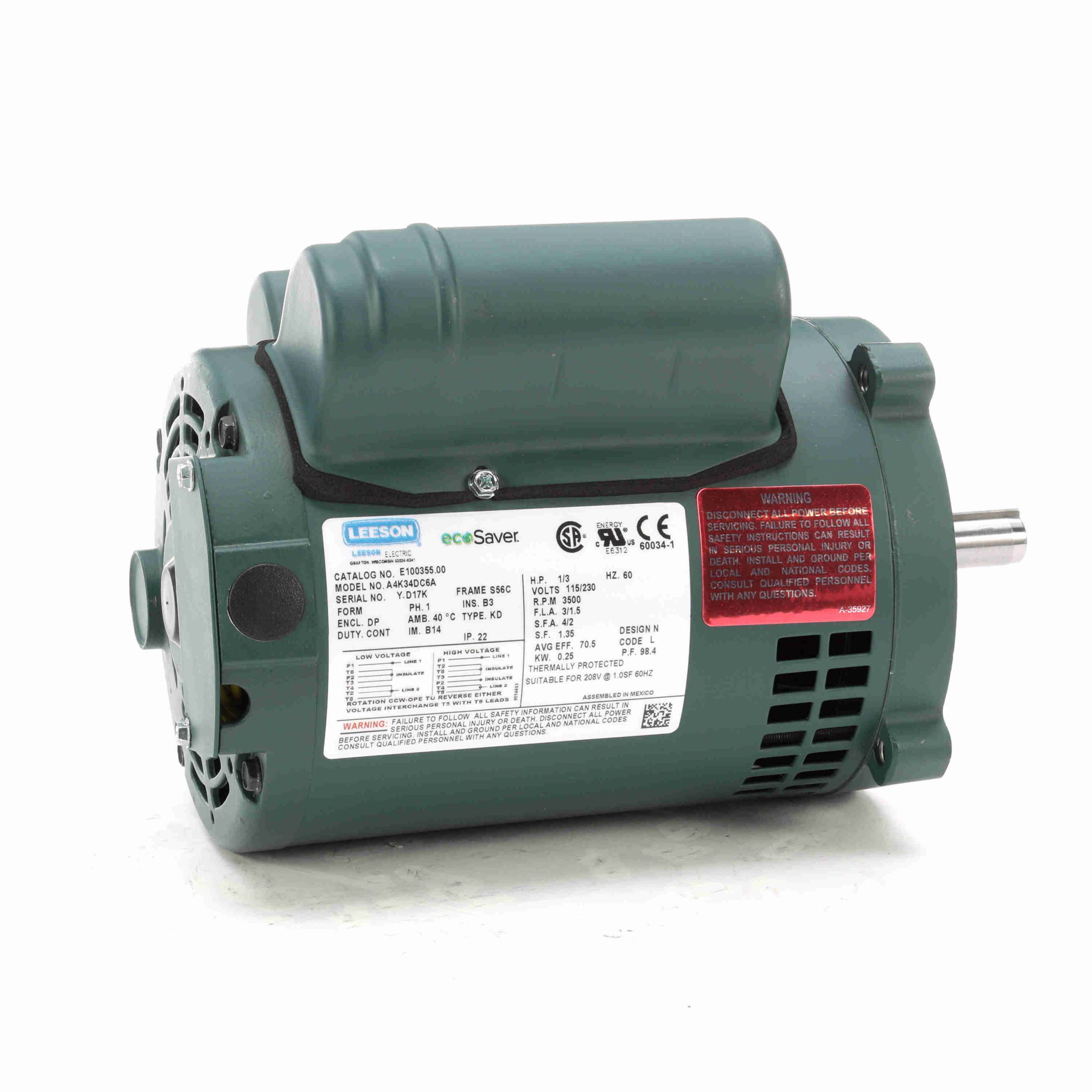

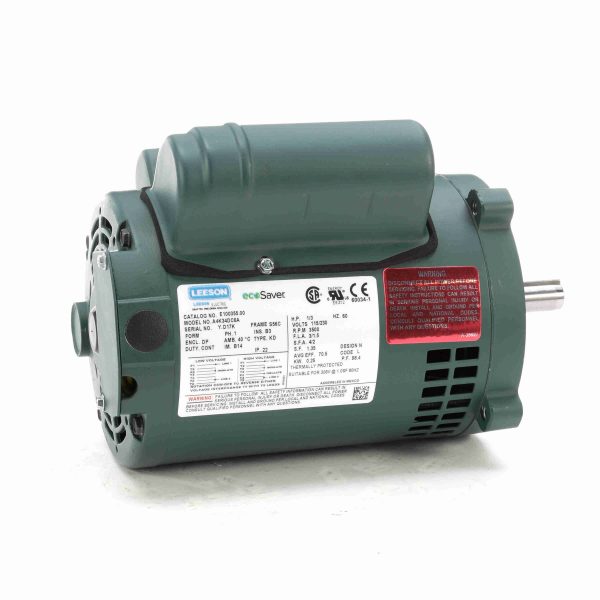

E100355.00 – Leeson 0.33 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56C Frame, ODP – E100355.00

E100355.00 – Leeson 0.33 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56C Frame, ODP – E100355.00

E100355.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Durable rolled steel construction
  • NEMA® design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

Leeson Motors
Regal Beloit

Original price was: $714.00.Current price is: $508.94.

Description

E100355.00 – Leeson 0.33 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56C Frame, ODP – E100355.00

E100355.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720990964 Weight: 15 LB
Packaged Length: 13.75 IN Packaged Width: 7.88 IN
Packaged Height: 8.75 IN

Nameplate Specifications

Output HP: 0.33 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 3.0/1.5 A Speed: 3500 rpm
Service Factor: 1.35 Phase: 1
Efficiency: 70.5 % Power Factor: 98.4
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: L
Frame: S56C Enclosure: Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 10.49 in
Frame Length: 6.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Full Load 1.50 100.0 8.00 100.0 3,500 0.37 98.4 0.33
Locked-Rotor 13.00 812.0 23.20 290.0 0 0.00 0.0 0.33
Break-Down 5.10 319.0 19.00 238.0 3,110 1.04 88.4 0.33
Pull-Up 12.60 788.0 23.20 290.0 0 0.00 0.0 0.33

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 135 % 150 %
Current (Amps) 0.42 0.70 0.99 1.30 1.50 1.80 1.90 2.00 2.35
Rated Output (KW) 0.09 0.16 0.22 0.29 0.37 0.41 0.44 0.48 0.53
Efficiency (%) 0.0 39.4 56.1 64.0 70.5 69.1 69.5 69.7 69.4
Power Factor (%) 97.4 99.9 98.8 98.4 98.4 98.2 98.0 97.8 97.4
Speed (RPM) 3,595 3,565 3,550 3,525 3,500 3,485 3,475 3,465 3,445
Temp. Rise @ FL 0.0 0.0 0.0 0.0 10.0 0.0 0.0 15.0 0.0
Torque (ft-lbs) 0.00 2.00 4.00 6.00 8.00 9.20 10.00 10.80 12.00
