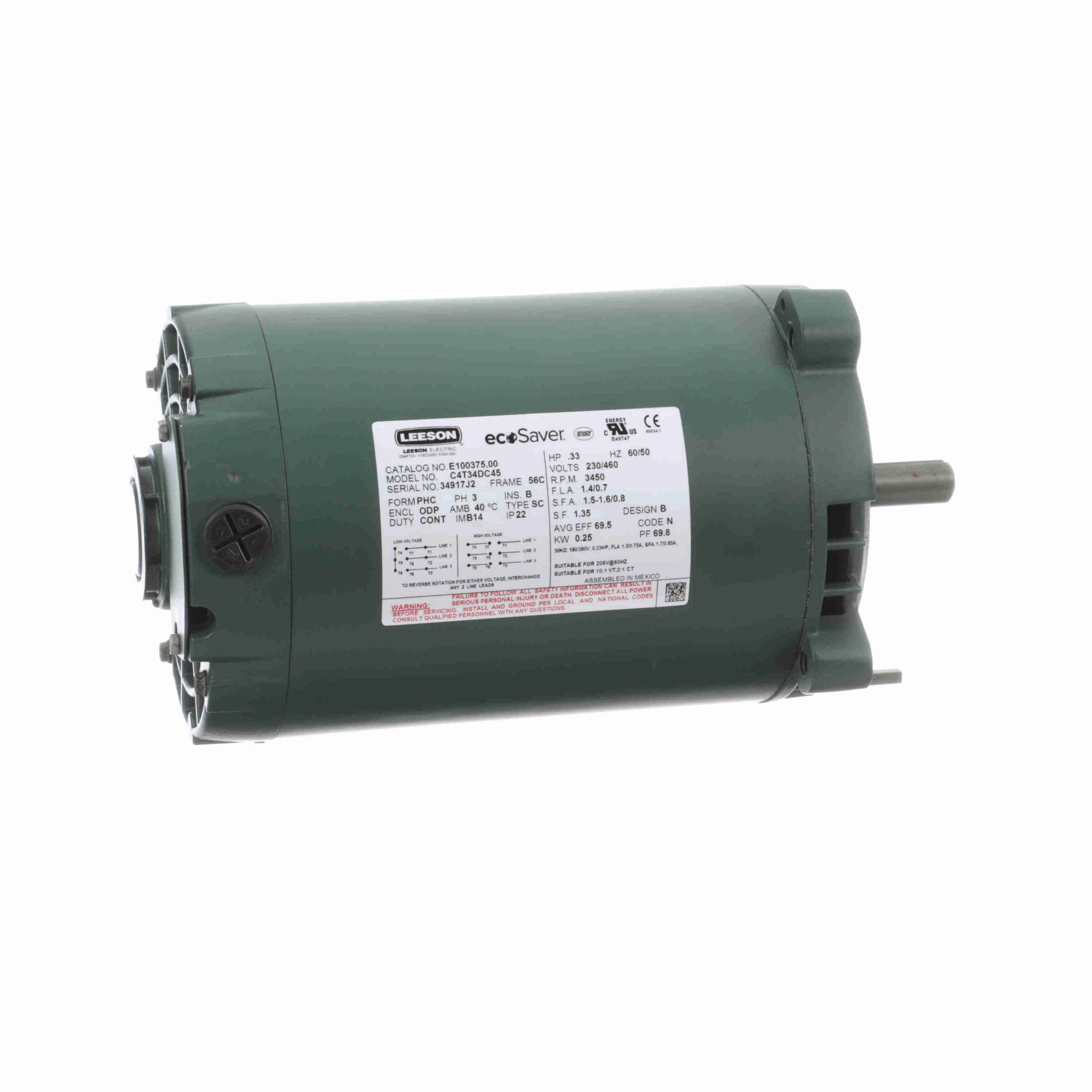

E100375.00 – Leeson 0.33 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 56C Frame, ODP – E100375.00
E100375.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720987292 |
Weight: |
40 LB |
| Packaged Length: |
14.63 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
8.13 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
1.4/0.70 A |
Speed: |
3450 rpm |
| Service Factor: |
1.35 |
Phase: |
3 |
| Efficiency: |
69.5 % |
Power Factor: |
73.6 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
S |
| Frame: |
S56C |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
25.6 Ohms |
Mounting: |
Round |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 48 |
Overall Length: |
11.04 in |
| Frame Length: |
6.72 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
6.70 |
0.0 |
48.00 |
0.0 |
0 |
0.00 |
0.0 |
0.33 |
| Pull-Up |
0.00 |
0.0 |
45.80 |
0.0 |
0 |
0.00 |
0.0 |
0.33 |
| Break-Down |
0.00 |
0.0 |
59.90 |
0.0 |
2,350 |
0.00 |
0.0 |
0.33 |
Load Characteristics
| % of Rated Load |
100 % |
135 % |
| Current (Amps) |
0.70 |
0.80 |
| Rated Output (KW) |
0.35 |
0.45 |
| Efficiency (%) |
69.5 |
71.5 |
| Power Factor (%) |
73.6 |
75.9 |
| Speed (RPM) |
3,535 |
3,530 |
| Temp. Rise @ FL |
8.0 |
9.0 |
| Torque (ft-lbs) |
8.40 |
11.30 |
