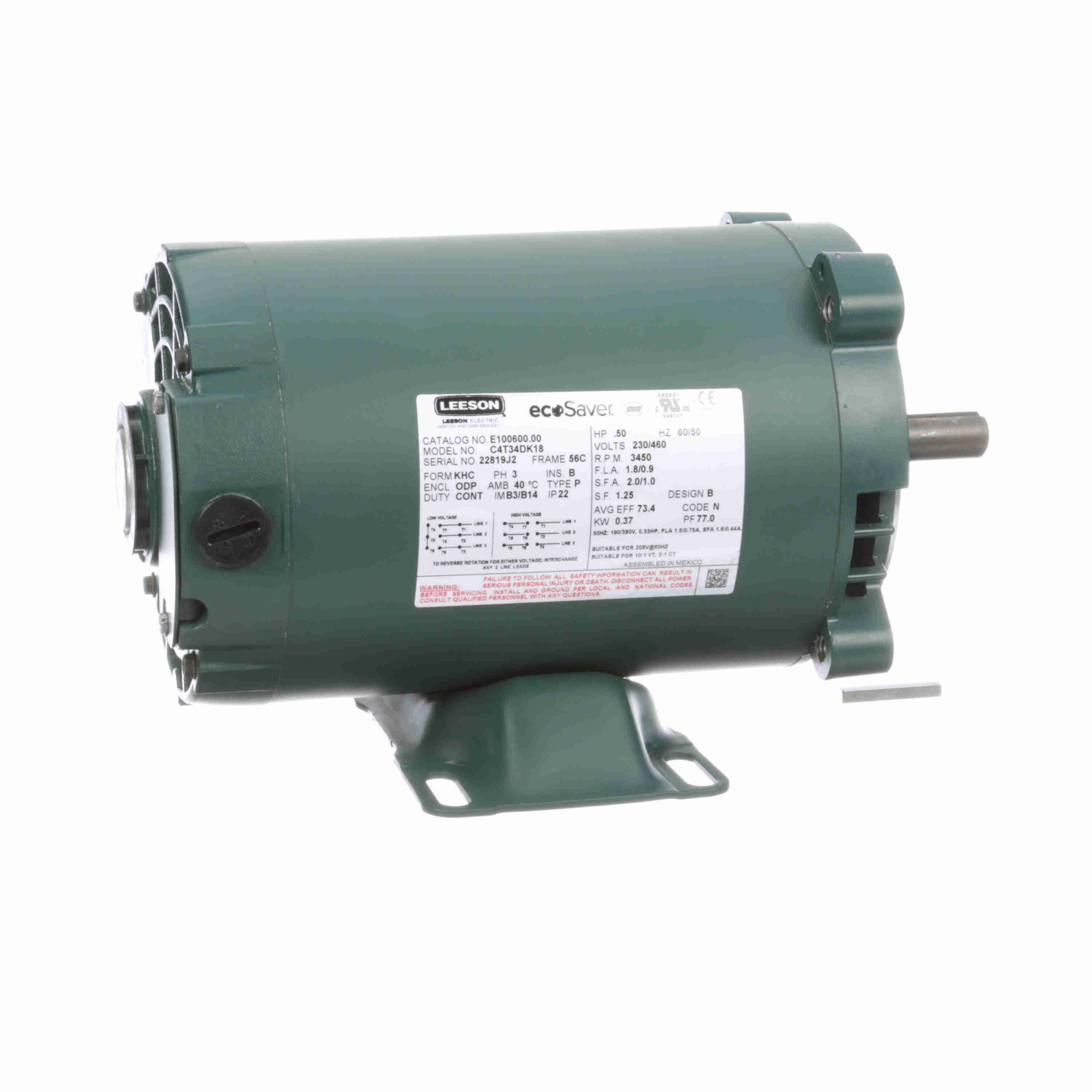

E100600.00 – Leeson 0.50 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 48C Frame, ODP – E100600.00
E100600.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720987322 |
Weight: |
30 LB |
| Packaged Length: |
14.63 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
8.13 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
1.8/0.90 A |
Speed: |
3450 rpm |
| Service Factor: |
1.25 |
Phase: |
3 |
| Efficiency: |
73.4 % |
Power Factor: |
77.0 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
B |
KVA Code: |
N |
| Frame: |
48C |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6202 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
26.8 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
11.04 in |
| Frame Length: |
6.70 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
0.00 |
0.0 |
45.55 |
0.0 |
0 |
0.00 |
0.0 |
0.50 |
| Break-Down |
0.00 |
0.0 |
61.33 |
0.0 |
2,630 |
0.00 |
0.0 |
0.50 |
| Locked-Rotor |
7.41 |
0.0 |
47.20 |
0.0 |
0 |
0.00 |
0.0 |
0.50 |
Load Characteristics
| % of Rated Load |
100 % |
125 % |
160 % |
| Current (Amps) |
0.90 |
1.00 |
1.10 |
| Rated Output (KW) |
0.52 |
0.62 |
0.78 |
| Efficiency (%) |
73.4 |
74.9 |
76.4 |
| Power Factor (%) |
77.0 |
81.0 |
85.5 |
| Speed (RPM) |
3,520 |
3,500 |
3,634 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
12.00 |
15.00 |
19.20 |
