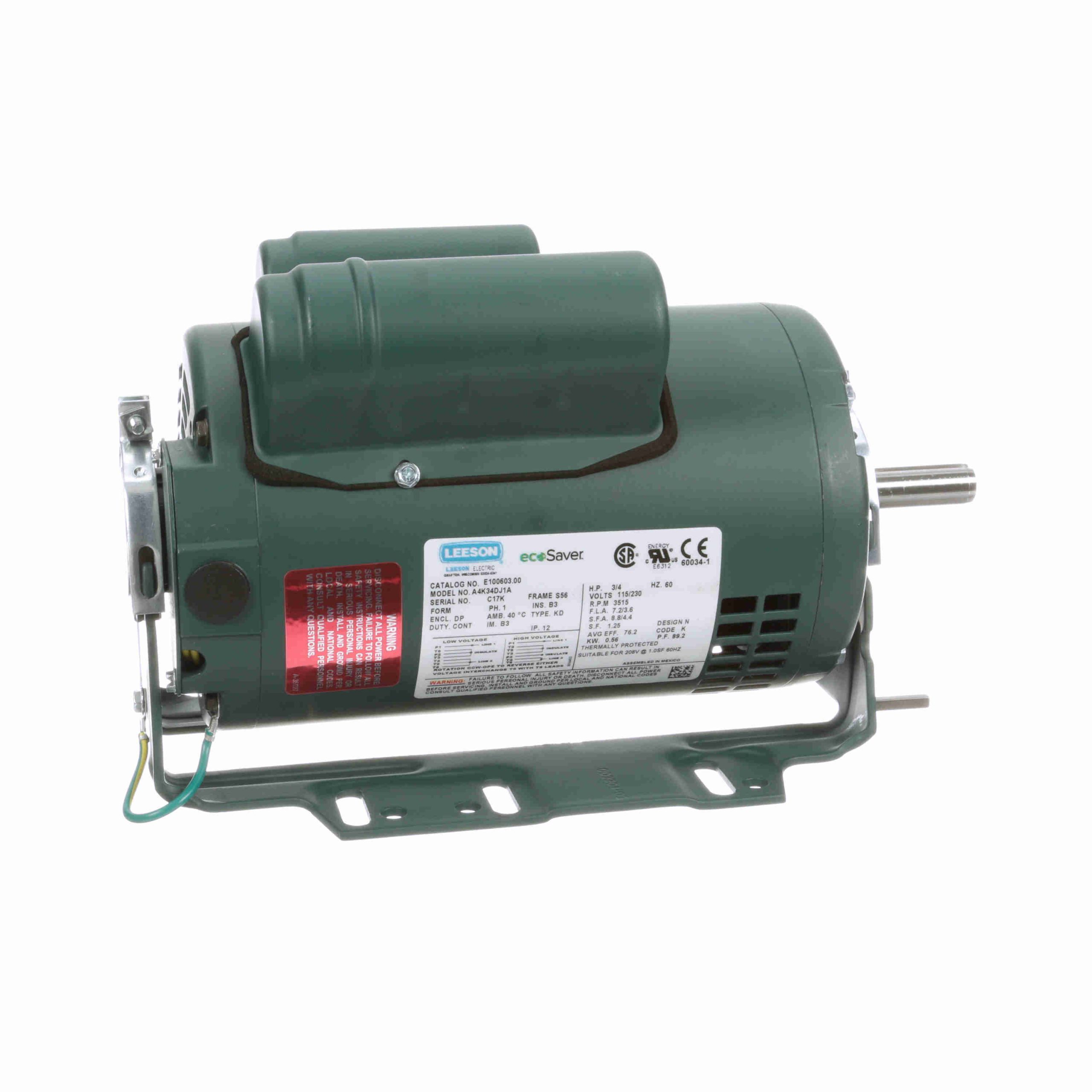

E100603.00 – Leeson 0.75 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, ODP – E100603.00

E100603.00 – Leeson 0.75 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, ODP – E100603.00

E100603.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Durable rolled steel construction
  • NEMA® design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified
  • Resilient Mount

Leeson Motors
Regal Beloit

Description

E100603.00 – Leeson 0.75 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, ODP – E100603.00

E100603.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720990551 Weight: 28 LB
Packaged Length: 16.12 IN Packaged Width: 10.25 IN
Packaged Height: 9.12 IN

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 7.2/3.6 A Speed: 3515 rpm
Service Factor: 1.25 Phase: 1
Efficiency: 76.2 % Power Factor: 89.2
Duty: Continuous Insulation Class: B
Design Code: N KVA Code: K
Frame: S56 Enclosure: Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 12

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Resilient Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 12.31 in
Frame Length: 7.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.875 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 13.22 367.0 51.00 280.0 3,100 2.64 86.9 0.75
Locked-Rotor 28.77 799.0 54.12 297.0 0 0.00 0.0 0.75
Pull-Up 28.60 794.0 53.10 292.0 0 0.00 0.0 0.75
Full Load 3.60 100.0 18.20 100.0 3,515 0.74 89.2 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 135 % 150 %
Current (Amps) 1.36 1.73 2.26 2.92 3.60 4.08 4.40 4.73 5.22
Rated Output (KW) 0.12 0.26 0.41 0.58 0.74 0.85 0.92 0.99 1.10
Efficiency (%) 0.0 55.2 69.7 74.1 76.2 76.6 76.5 76.3 76.2
Power Factor (%) 36.7 65.8 79.4 86.0 89.2 90.2 90.8 91.2 91.5
Speed (RPM) 3,595 3,575 3,555 3,535 3,515 3,500 3,490 3,480 3,465
Temp. Rise @ FL 0.0 0.0 0.0 0.0 30.0 0.0 35.0 0.0 0.0
Torque (ft-lbs) 0.00 4.55 9.10 13.65 18.20 20.93 22.75 24.57 27.30
