Description

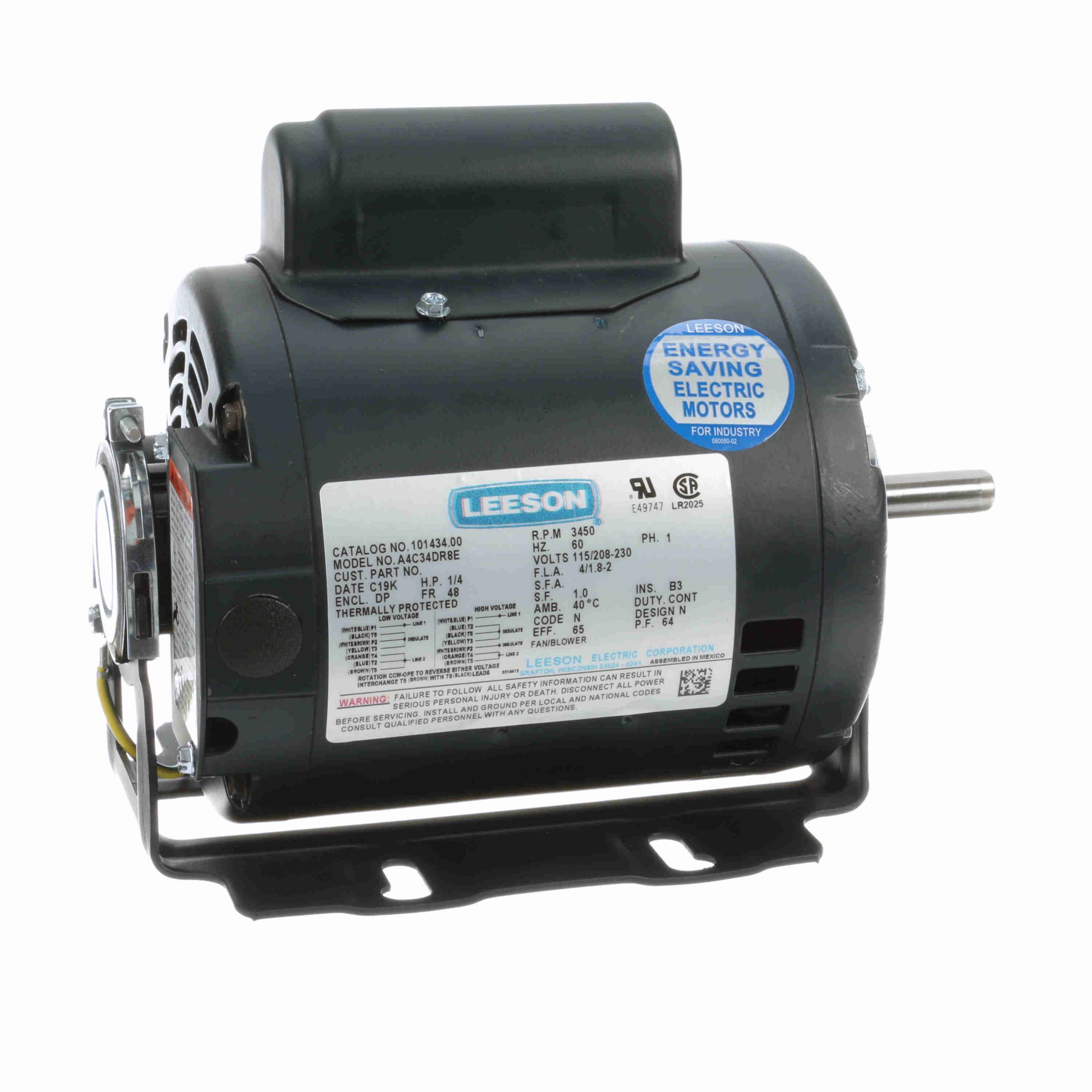

E101434.00 – Leeson 0.25 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 48 Frame, ODP – E101434.00
E101434.00 Leeson Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720990414 |
Weight: |
19 LB |
| Packaged Length: |
13.75 IN |
Packaged Width: |
7.88 IN |
| Packaged Height: |
8.75 IN |
Nameplate Specifications
| Output HP: |
0.25 Hp |
Output KW: |
0.19 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
2.5/1.2 A |
Speed: |
3450 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Efficiency: |
65.8 % |
Power Factor: |
99 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Design Code: |
No Design Code |
KVA Code: |
F |
| Frame: |
48 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
0 Ohms |
Mounting: |
Resilient Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 48 |
Overall Length: |
10.39 in |
| Frame Length: |
6.00 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
1.5 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
9.18 |
0.0 |
15.39 |
0.0 |
11 |
2.12 |
96.6 |
0.25 |
| Full Load |
1.22 |
0.0 |
6.00 |
0.0 |
3,496 |
0.28 |
100.0 |
0.25 |
| Break-Down |
8.75 |
0.0 |
25.99 |
0.0 |
2,587 |
0.20 |
100.0 |
0.25 |
| Locked-Rotor |
9.18 |
0.0 |
15.45 |
0.0 |
0 |
2.12 |
96.4 |
0.25 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
| Current (Amps) |
0.35 |
0.53 |
0.73 |
0.94 |
1.22 |
| Rated Output (KW) |
0.08 |
0.12 |
0.17 |
0.22 |
0.28 |
| Efficiency (%) |
0.0 |
39.4 |
56.2 |
65.0 |
65.8 |
| Power Factor (%) |
93.3 |
98.3 |
100.0 |
100.0 |
100.0 |
| Speed (RPM) |
3,586 |
3,567 |
3,546 |
3,526 |
3,496 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
1.50 |
3.00 |
4.50 |
6.00 |
