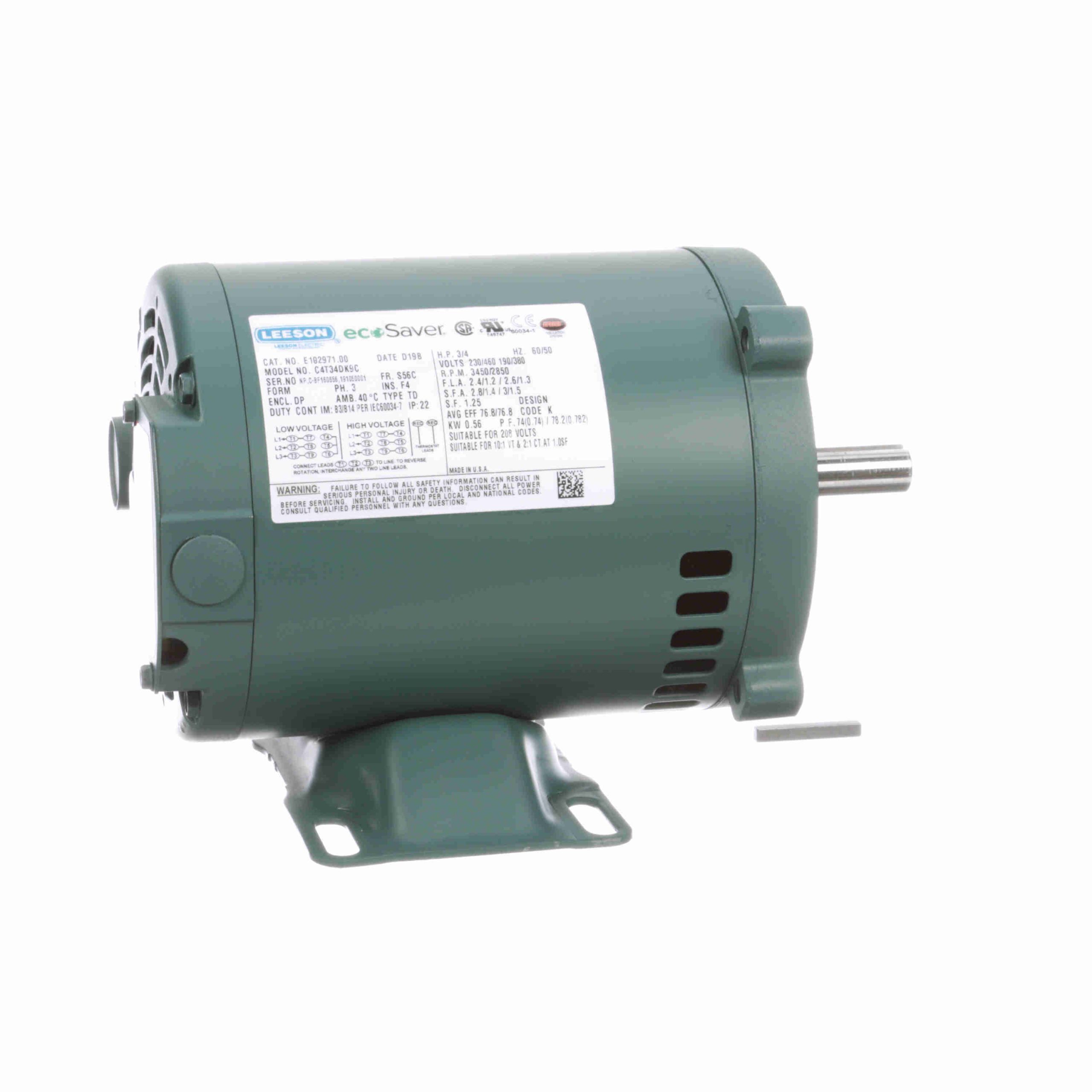

E102971.00 – Leeson 0.75 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 56C Frame, ODP – E102971.00
E102971.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720042359 |
Weight: |
21 LB |
| Packaged Length: |
14.63 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
8.13 IN |
Nameplate Specifications
| Output HP: |
0.75 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
2.4/1.2 A |
Speed: |
3450 rpm |
| Service Factor: |
1.25 |
Phase: |
3 |
| Efficiency: |
76.8 % |
Power Factor: |
74 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
K |
| Frame: |
S56C |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
6.85 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
9.74 in |
| Frame Length: |
5.75 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
4.97 |
0.0 |
73.30 |
0.0 |
2,600 |
3.64 |
0.0 |
0.75 |
| Pull-Up |
8.06 |
0.0 |
48.00 |
0.0 |
0 |
5.49 |
0.0 |
0.75 |
| Full Load |
1.21 |
0.0 |
18.00 |
0.0 |
3,511 |
0.73 |
0.0 |
0.75 |
| Locked-Rotor |
8.54 |
0.0 |
53.60 |
0.0 |
0 |
5.76 |
0.0 |
0.75 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.68 |
0.73 |
0.83 |
0.97 |
1.13 |
1.31 |
1.48 |
| Rated Output (KW) |
0.12 |
0.26 |
0.41 |
0.56 |
0.72 |
0.89 |
1.06 |
| Efficiency (%) |
0.0 |
55.8 |
69.8 |
74.7 |
78.0 |
78.4 |
78.6 |
| Power Factor (%) |
22.4 |
44.2 |
61.9 |
72.0 |
79.7 |
85.0 |
89.1 |
| Speed (RPM) |
3,585 |
3,573 |
3,550 |
3,528 |
3,505 |
3,478 |
3,450 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
109.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
4.50 |
9.10 |
13.50 |
18.00 |
22.50 |
27.10 |
