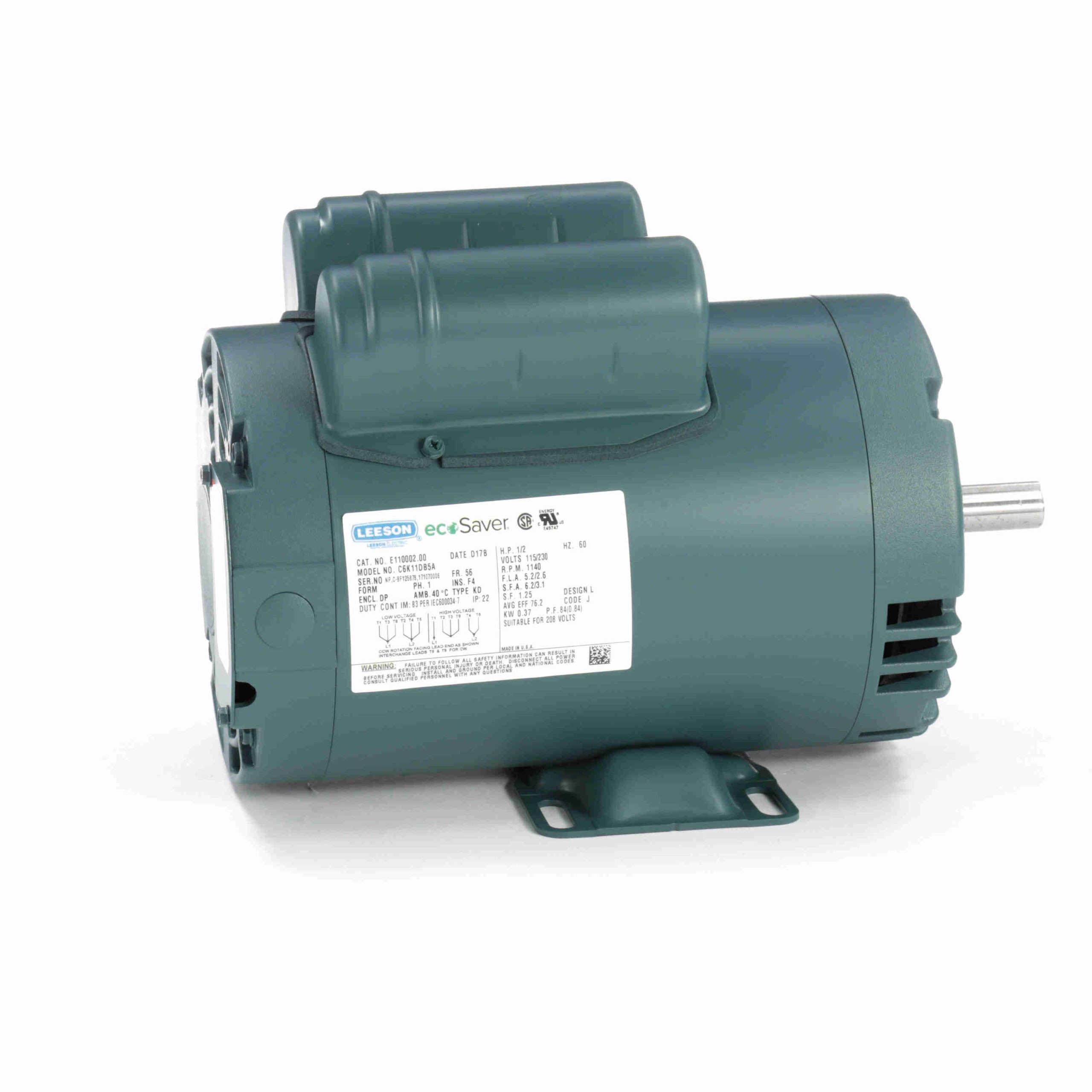

E110002.00 – Leeson 0.50 HP General Purpose Motor, 1 phase, 1200 RPM, 115/230 V, 56 Frame, ODP – E110002.00
E110002.00 Leeson Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720026908 |
Weight: |
41 LB |
| Packaged Length: |
14.63 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
8.13 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
5.2/2.6 A |
Speed: |
1140 rpm |
| Service Factor: |
1.25 |
Phase: |
1 |
| Efficiency: |
76.2 % |
Power Factor: |
84 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
J |
| Frame: |
56 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
1.147 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
12.37 in |
| Frame Length: |
7.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
2.55 |
100.0 |
36.06 |
100.0 |
1,174 |
0.49 |
0.0 |
0.50 |
| Break-Down |
7.76 |
304.0 |
79.75 |
221.0 |
1,050 |
1.42 |
0.0 |
0.50 |
| Locked-Rotor |
19.15 |
751.0 |
103.03 |
286.0 |
0 |
3.88 |
0.0 |
0.50 |
| Pull-Up |
10.65 |
418.0 |
57.05 |
158.0 |
842 |
1.66 |
0.0 |
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
1.35 |
1.44 |
1.67 |
2.07 |
2.54 |
3.04 |
3.66 |
| Rated Output (KW) |
0.16 |
0.21 |
0.29 |
0.39 |
0.49 |
0.60 |
0.73 |
| Efficiency (%) |
0.0 |
44.6 |
63.6 |
72.0 |
77.0 |
77.3 |
76.7 |
| Power Factor (%) |
41.3 |
63.2 |
76.4 |
81.3 |
84.0 |
85.8 |
86.5 |
| Speed (RPM) |
1,198 |
1,193 |
1,188 |
1,181 |
1,173 |
1,165 |
1,154 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
8.84 |
17.69 |
26.71 |
35.88 |
45.12 |
54.70 |
