Description

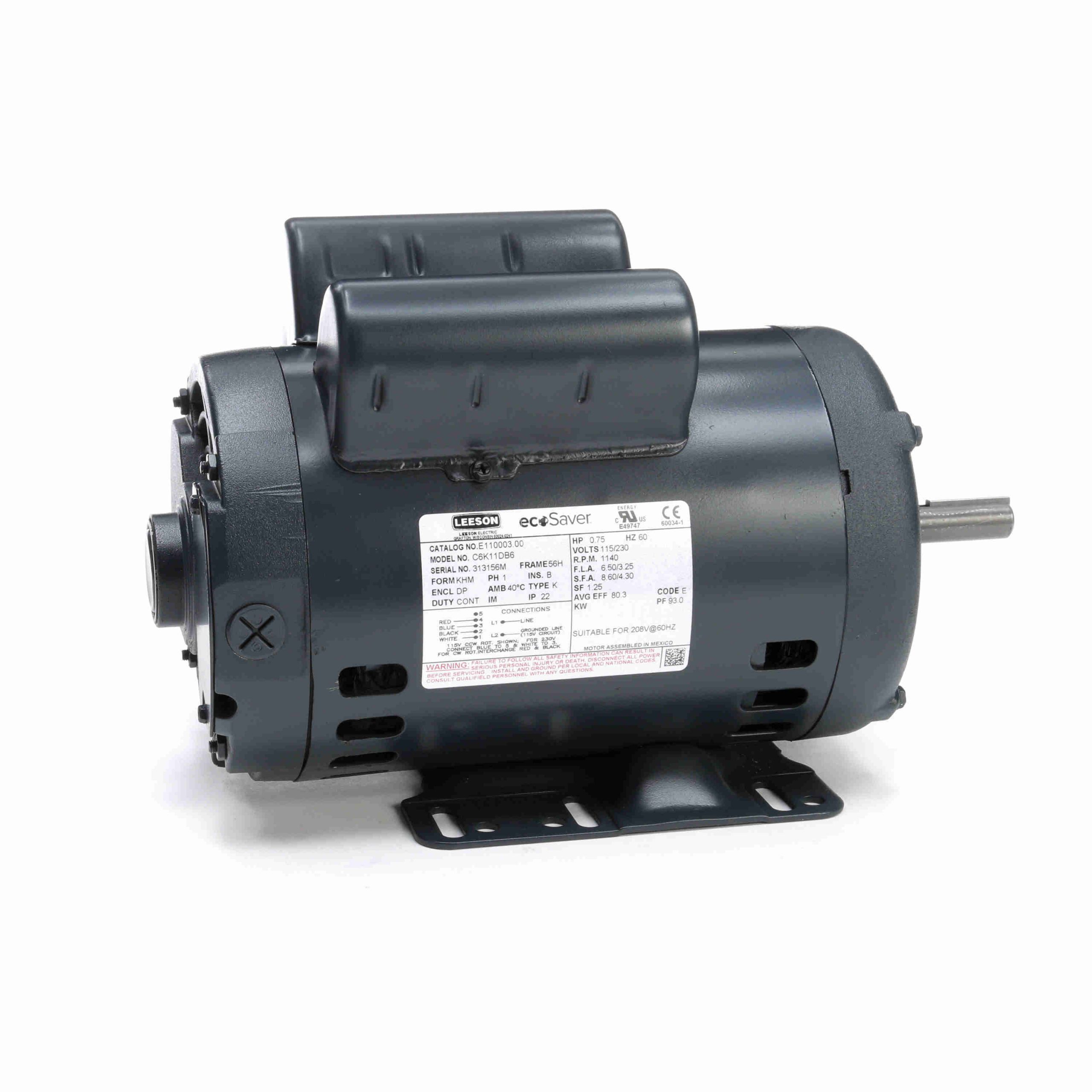

E110003.00 – Leeson 0.75 HP General Purpose Motor, 1 phase, 1200 RPM, 115/230 V, 56H Frame, ODP – E110003.00
E110003.00 Leeson Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720987339 |
Weight: |
45 LB |
| Packaged Length: |
14.63 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
8.13 IN |
Nameplate Specifications
| Output HP: |
0.75 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
6.5/3.3 A |
Speed: |
1140 rpm |
| Service Factor: |
1.25 |
Phase: |
1 |
| Efficiency: |
80.3 % |
Power Factor: |
93.0 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
E |
| Frame: |
56H |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
N |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Counterclockwise |
| Mounting: |
Rigid base |
Motor Orientation: |
HORIZONTAL |
| Drive End Bearing: |
BALL |
Opp Drive End Bearing: |
BALL |
| Frame Material: |
Rolled Steel |
Shaft Type: |
NEMA 56 |
| Overall Length: |
13.62 in |
Frame Length: |
7.38 in |
| Shaft Diameter: |
0.625 in |
Shaft Extension: |
1.88 in |
| Assembly/Box Mounting: |
F1 Only |
