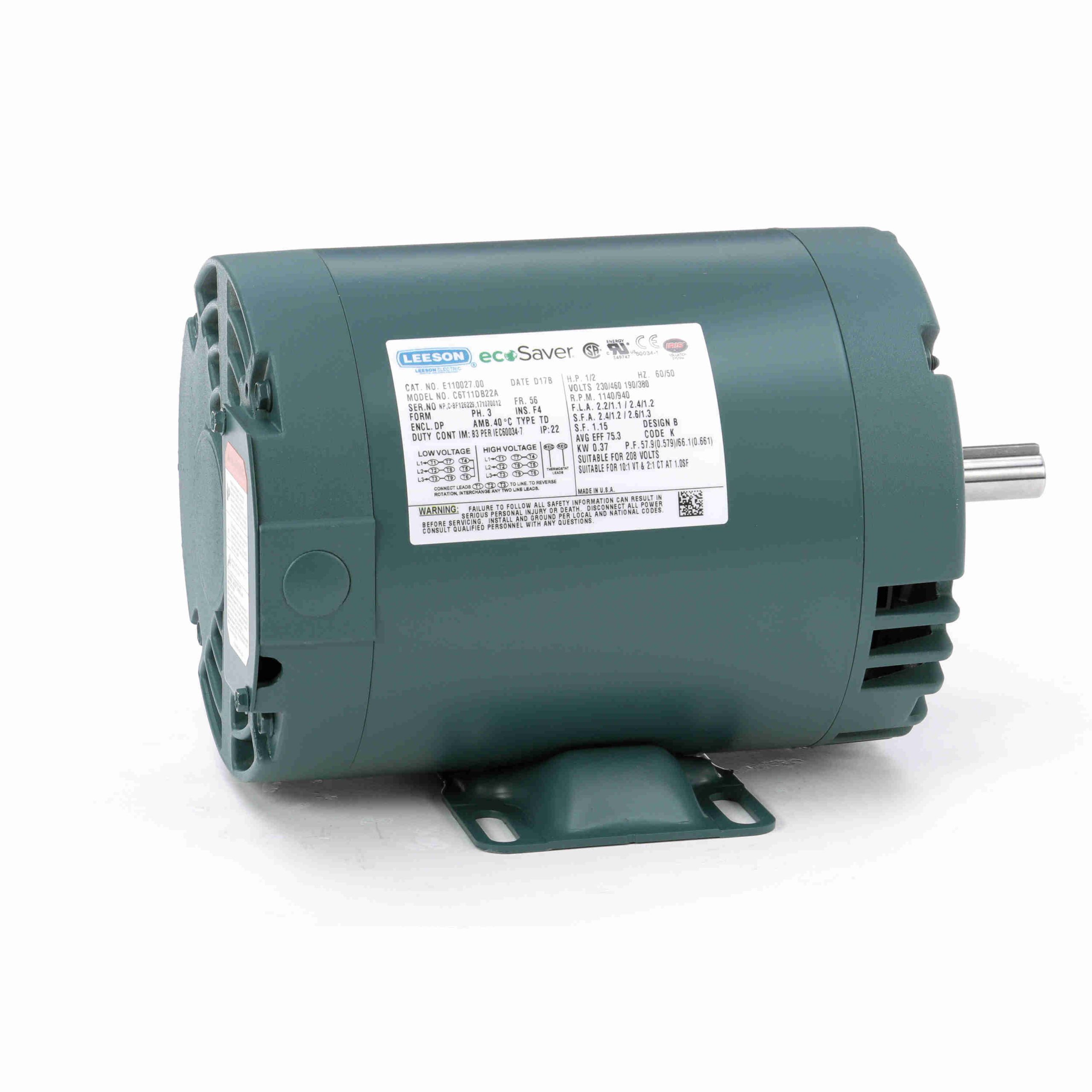

E110027.00 – Leeson 0.50 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 56 Frame, ODP – E110027.00
E110027.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720041772 |
Weight: |
21 LB |
| Packaged Length: |
14.63 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
8.13 IN |
Nameplate Specifications
| Output HP: |
0.50 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
2.2/1.1 A |
Speed: |
1140 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
75.3 % |
Power Factor: |
57.9 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
K |
| Frame: |
56 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
10.87 in |
| Frame Length: |
6.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Full Load |
1.08 |
100.0 |
36.36 |
100.0 |
1,157 |
0.49 |
0.0 |
0.50 |
| Pull-Up |
4.96 |
459.0 |
90.55 |
249.0 |
106 |
2.44 |
0.0 |
0.50 |
| Break-Down |
3.60 |
333.0 |
116.92 |
322.0 |
807 |
2.10 |
0.0 |
0.50 |
| Locked-Rotor |
5.03 |
466.0 |
87.08 |
239.0 |
0 |
2.45 |
0.0 |
0.50 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.82 |
0.84 |
0.89 |
0.97 |
1.07 |
1.19 |
1.34 |
| Rated Output (KW) |
0.08 |
0.17 |
0.27 |
0.38 |
0.49 |
0.61 |
0.74 |
| Efficiency (%) |
0.0 |
56.2 |
70.1 |
74.9 |
76.1 |
76.4 |
75.6 |
| Power Factor (%) |
11.8 |
24.7 |
37.7 |
48.5 |
57.9 |
64.3 |
69.6 |
| Speed (RPM) |
1,198 |
1,189 |
1,178 |
1,167 |
1,153 |
1,139 |
1,123 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
29.1 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
8.82 |
17.95 |
27.11 |
36.60 |
46.03 |
56.17 |
