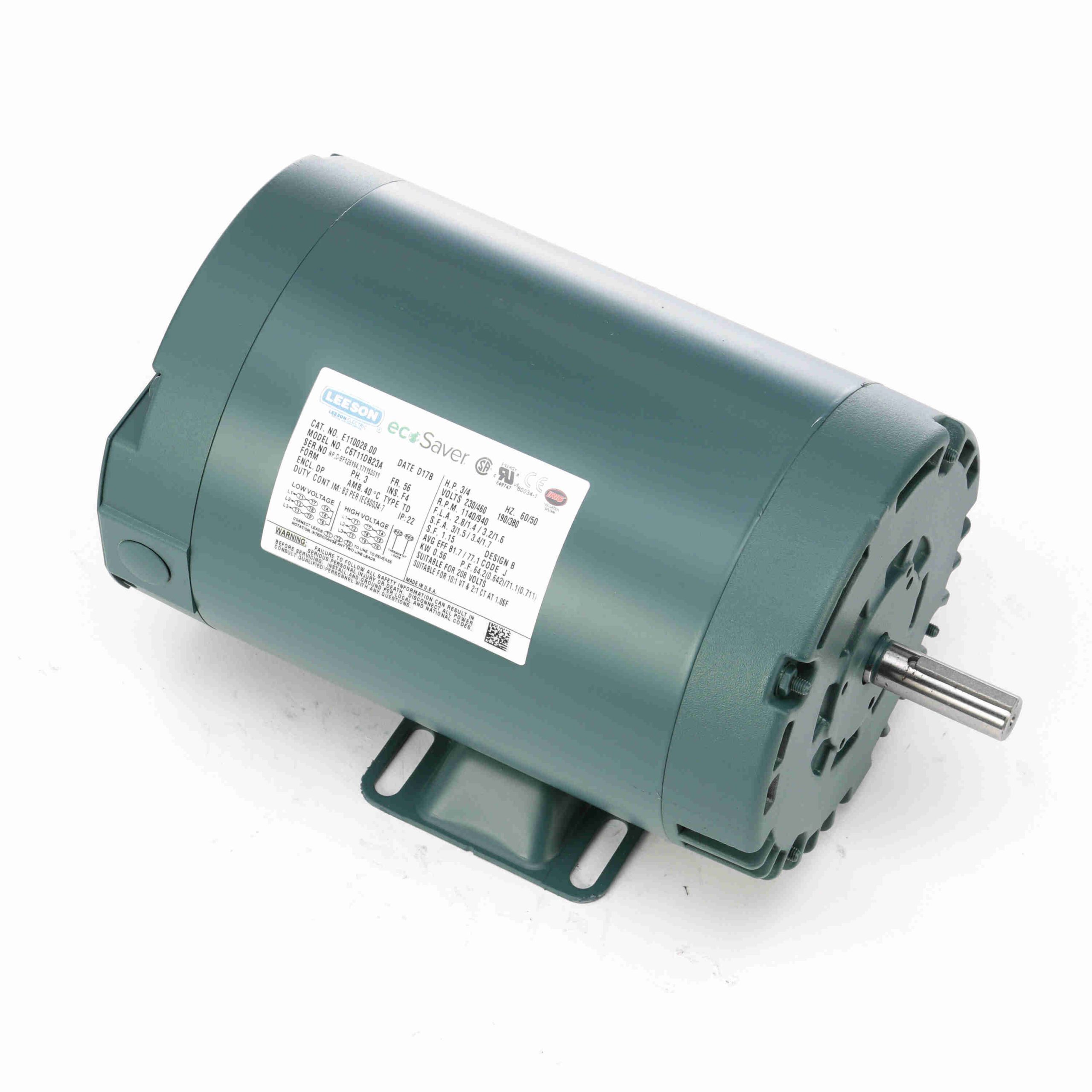

E110028.00 – Leeson 0.75 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 56 Frame, ODP – E110028.00
E110028.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720041789 |
Weight: |
36 LB |
| Packaged Length: |
14.63 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
8.13 IN |
Nameplate Specifications
| Output HP: |
0.75 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
2.8/1.4 A |
Speed: |
1140 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
81.7 % |
Power Factor: |
64.2 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
J |
| Frame: |
56 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
11.87 in |
| Frame Length: |
7.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
4.92 |
359.0 |
166.72 |
258.0 |
854 |
2.83 |
0.0 |
0.75 |
| Full Load |
1.37 |
100.0 |
64.68 |
100.0 |
1,152 |
0.70 |
0.0 |
0.75 |
| Pull-Up |
6.98 |
509.0 |
134.38 |
208.0 |
208 |
3.25 |
0.0 |
0.75 |
| Locked-Rotor |
7.23 |
528.0 |
138.28 |
214.0 |
0 |
3.26 |
0.0 |
0.75 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.81 |
0.96 |
1.06 |
1.20 |
1.37 |
1.59 |
1.84 |
| Rated Output (KW) |
0.06 |
0.21 |
0.37 |
0.53 |
0.70 |
0.89 |
1.09 |
| Efficiency (%) |
0.0 |
65.7 |
75.8 |
79.0 |
79.7 |
78.8 |
77.5 |
| Power Factor (%) |
10.3 |
28.0 |
43.8 |
55.7 |
64.2 |
70.1 |
74.1 |
| Speed (RPM) |
1,198 |
1,189 |
1,178 |
1,166 |
1,152 |
1,138 |
1,121 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
29.8 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
13.27 |
26.77 |
40.55 |
54.68 |
69.24 |
84.72 |
