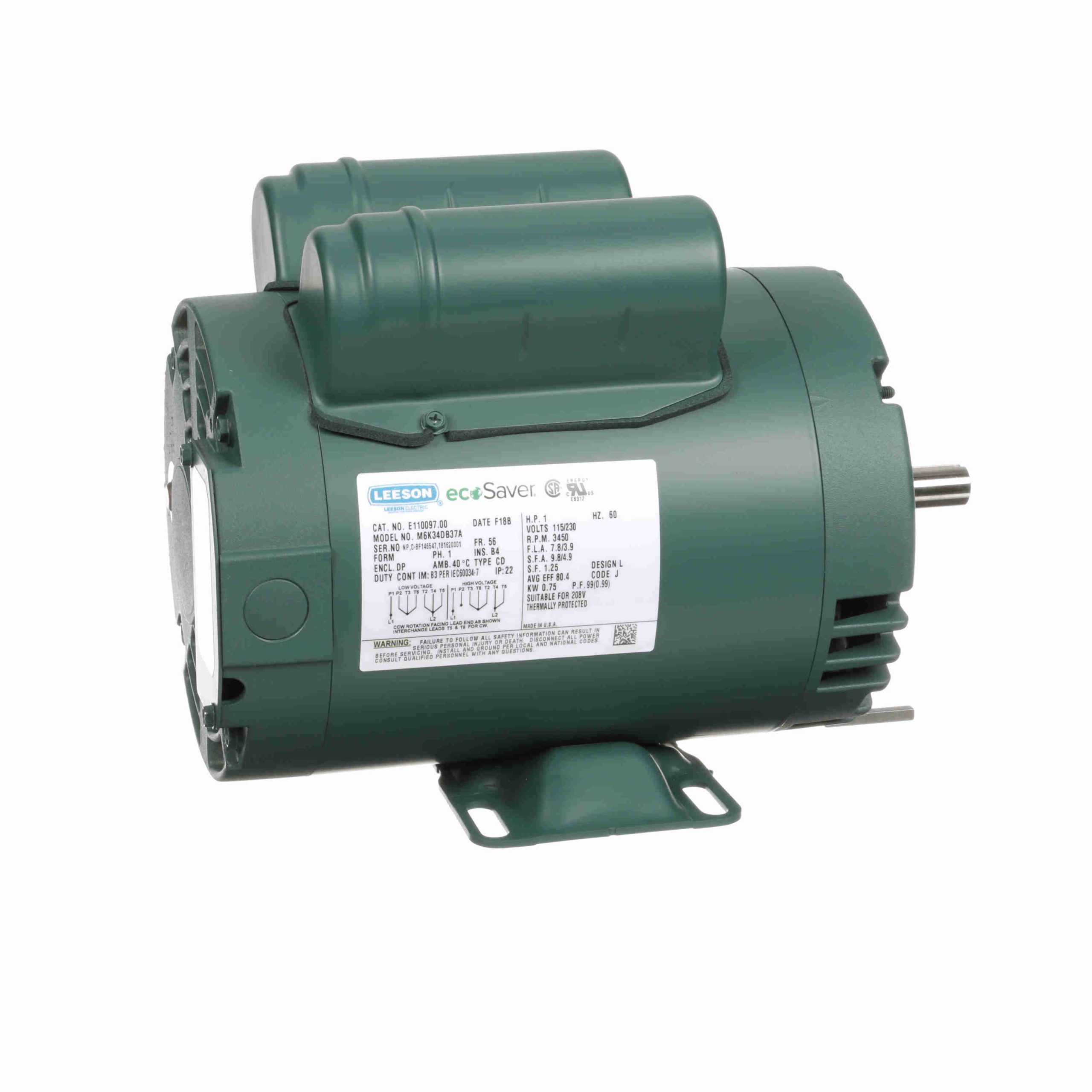

E110097.00 – Leeson 1 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, ODP – E110097.00

E110097.00 – Leeson 1 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, ODP – E110097.00

E110097.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Durable rolled steel construction
  • NEMA® design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

Leeson Motors
Regal Beloit

Description

E110097.00 – Leeson 1 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56 Frame, ODP – E110097.00

E110097.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720990834 Weight: 30 LB
Packaged Length: 14.44 IN Packaged Width: 7.94 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 7.8/3.9 A Speed: 3450 rpm
Service Factor: 1.25 Phase: 1
Efficiency: 80.4 % Power Factor: 99
Duty: Continuous Insulation Class: B
Design Code: L KVA Code: J
Frame: 56 Enclosure: Drip Proof
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 22

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: .526 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.37 in
Frame Length: 6.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 28.70 740.0 47.48 196.0 2,874 5.77 0.0 1.00
Locked-Rotor 37.10 956.0 79.96 330.0 0 7.34 0.0 1.00
Full Load 3.88 100.0 24.22 100.0 3,505 0.89 0.0 1.00
Break-Down 14.21 366.0 54.57 225.0 3,017 2.88 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.89 1.54 2.21 2.96 3.88 4.85 6.00
Rated Output (KW) 0.09 0.30 0.49 0.68 0.89 1.11 1.36
Efficiency (%) 0.0 61.9 77.2 83.0 84.5 84.2 82.2
Power Factor (%) 43.7 85.3 95.4 99.0 99.8 99.5 98.7
Speed (RPM) 3,596 3,579 3,558 3,534 3,505 3,474 3,437
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 5.88 11.84 17.86 24.22 30.26 36.68
