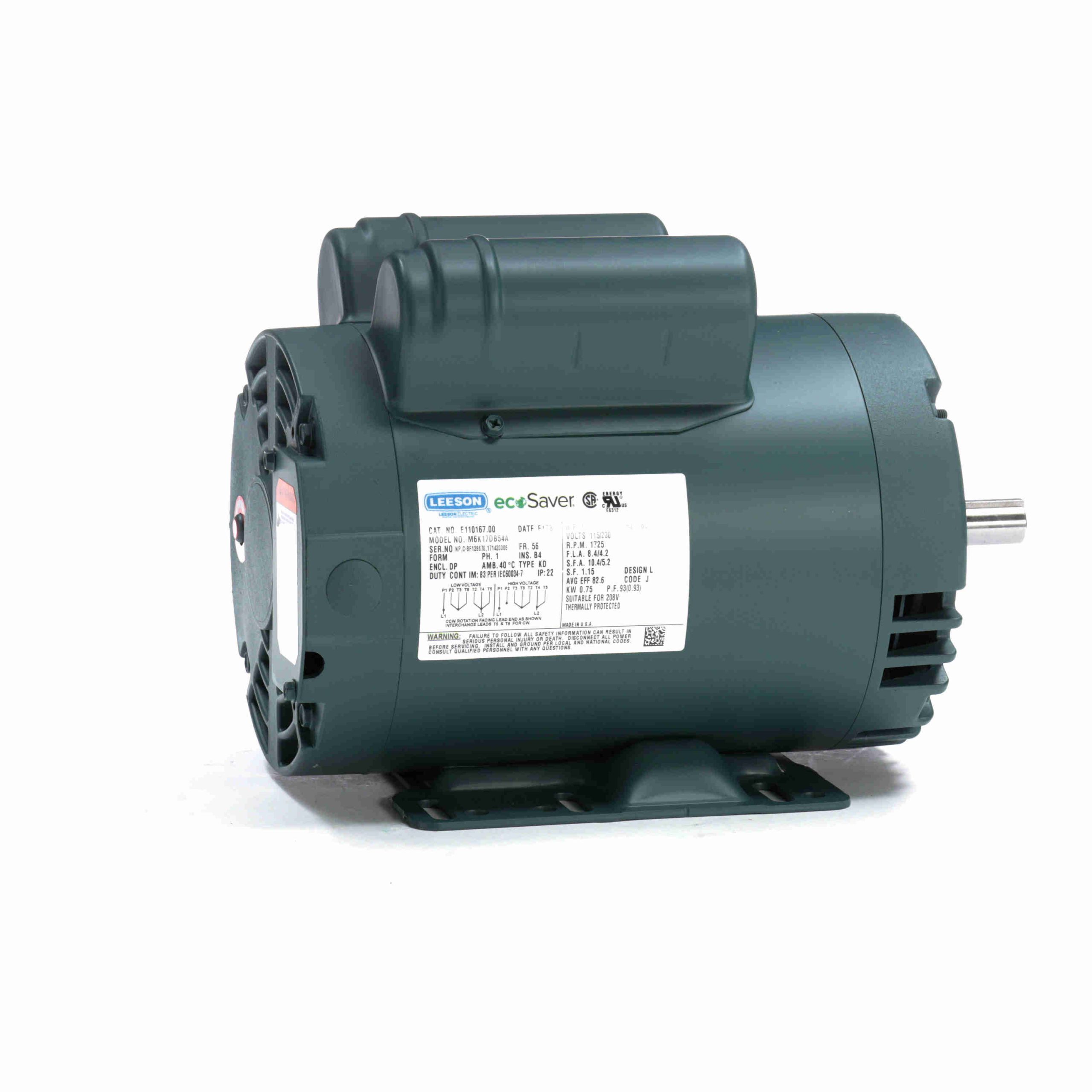

E110167.00 – Leeson 1 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – E110167.00

E110167.00 – Leeson 1 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – E110167.00

E110167.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Durable rolled steel construction
  • NEMA® design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

Leeson Motors
Regal Beloit

Original price was: $1,249.00.Current price is: $890.29.

Description

E110167.00 – Leeson 1 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56 Frame, ODP – E110167.00

E110167.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720990841 Weight: 33 LB
Packaged Length: 14.44 IN Packaged Width: 7.94 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 8.4/4.2 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 82.6 % Power Factor: 93
Duty: Continuous Insulation Class: B
Design Code: L KVA Code: J
Frame: 56 Enclosure: Drip Proof
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 22

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 2.02 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.87 in
Frame Length: 7.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 14.10 313.0 125.28 261.0 1,543 3.30 0.0 1.00
Locked-Rotor 33.40 742.0 149.76 312.0 0 6.30 0.0 1.00
Pull-Up 25.70 571.0 107.20 223.0 1,314 3.70 0.0 1.00
Full Load 4.50 100.0 48.00 100.0 1,754 0.94 0.0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.77 2.13 2.82 3.63 4.50 5.58 6.70
Rated Output (KW) 0.18 0.35 0.54 0.73 0.94 1.17 1.42
Efficiency (%) 0.0 53.1 69.9 76.5 79.5 79.6 78.9
Power Factor (%) 44.2 72.3 82.6 87.8 90.8 90.9 91.8
Speed (RPM) 1,798 1,790 1,781 1,771 1,754 1,740 1,731
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 11.84 23.68 35.68 48.00 60.16 72.64
