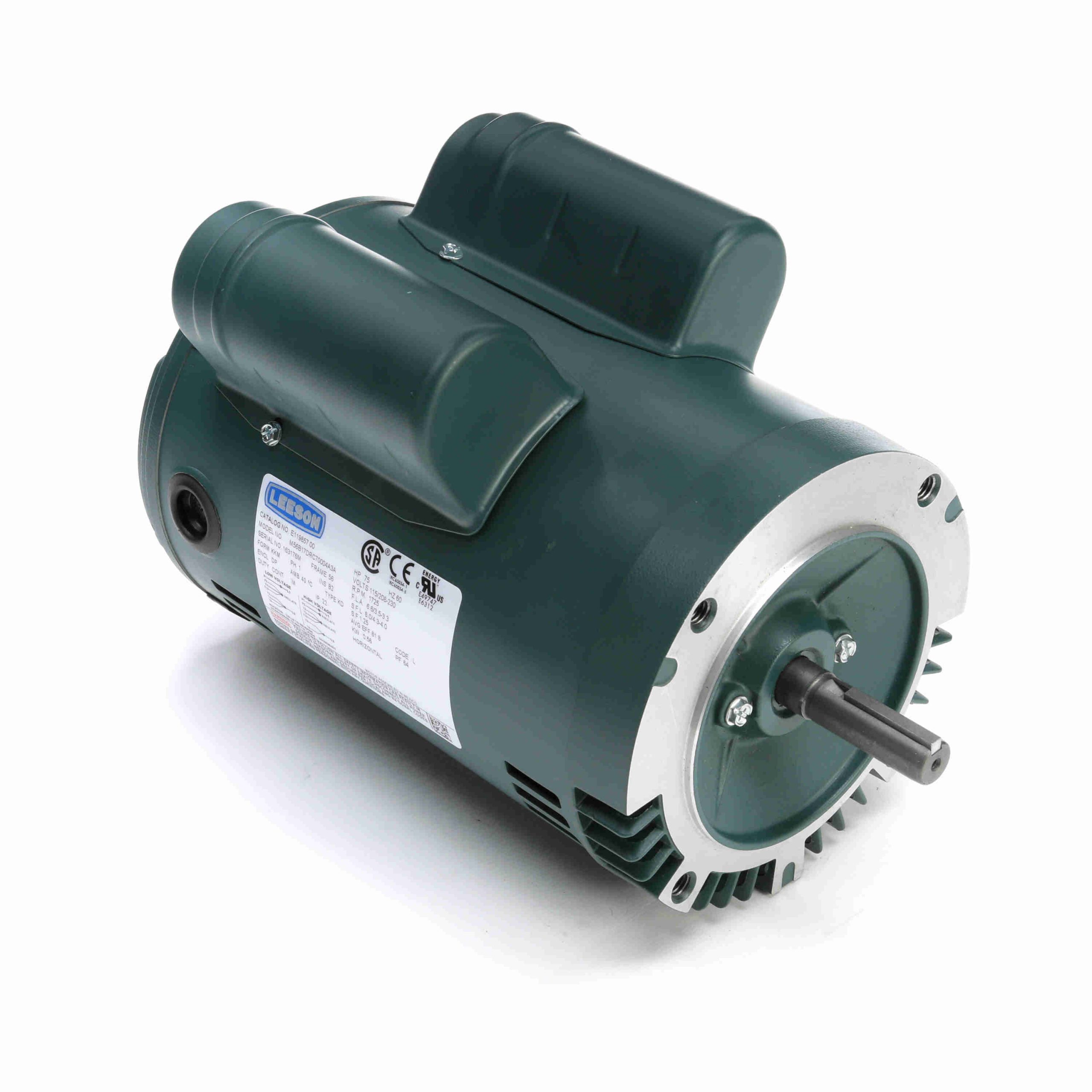

E110382.00 – Leeson 0.75 HP General Purpose Motor, 1 phase, 1200 RPM, 115/230 V, 56C Frame, ODP – E110382.00
E110382.00 Leeson Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720987346 |
Weight: |
47 LB |
| Packaged Length: |
15.62 IN |
Packaged Width: |
7.62 IN |
| Packaged Height: |
10.62 IN |
Nameplate Specifications
| Output HP: |
0.75 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
6.5 A |
Speed: |
1140 rpm |
| Service Factor: |
1.25 |
Phase: |
1 |
| Efficiency: |
80.3 % |
Power Factor: |
93.0 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
E |
| Frame: |
56C |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
N |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
3 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
13.62 in |
| Frame Length: |
7.75 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.07 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
15.00 |
0.0 |
94.50 |
0.0 |
0 |
0.00 |
0.0 |
0.75 |
| Break-Down |
0.00 |
0.0 |
107.00 |
0.0 |
1,000 |
0.00 |
0.0 |
0.75 |
| Pull-Up |
0.00 |
0.0 |
86.81 |
0.0 |
0 |
0.00 |
0.0 |
0.75 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
| Current (Amps) |
1.00 |
1.30 |
1.90 |
2.50 |
3.35 |
3.80 |
| Rated Output (KW) |
0.15 |
0.27 |
0.40 |
0.70 |
0.71 |
0.81 |
| Efficiency (%) |
0.0 |
53.3 |
70.5 |
78.0 |
80.2 |
78.0 |
| Power Factor (%) |
0.0 |
86.0 |
92.0 |
93.0 |
93.3 |
93.0 |
| Speed (RPM) |
1,195 |
1,185 |
1,175 |
1,160 |
1,150 |
1,145 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
13.65 |
27.60 |
41.40 |
54.00 |
62.00 |
