Description

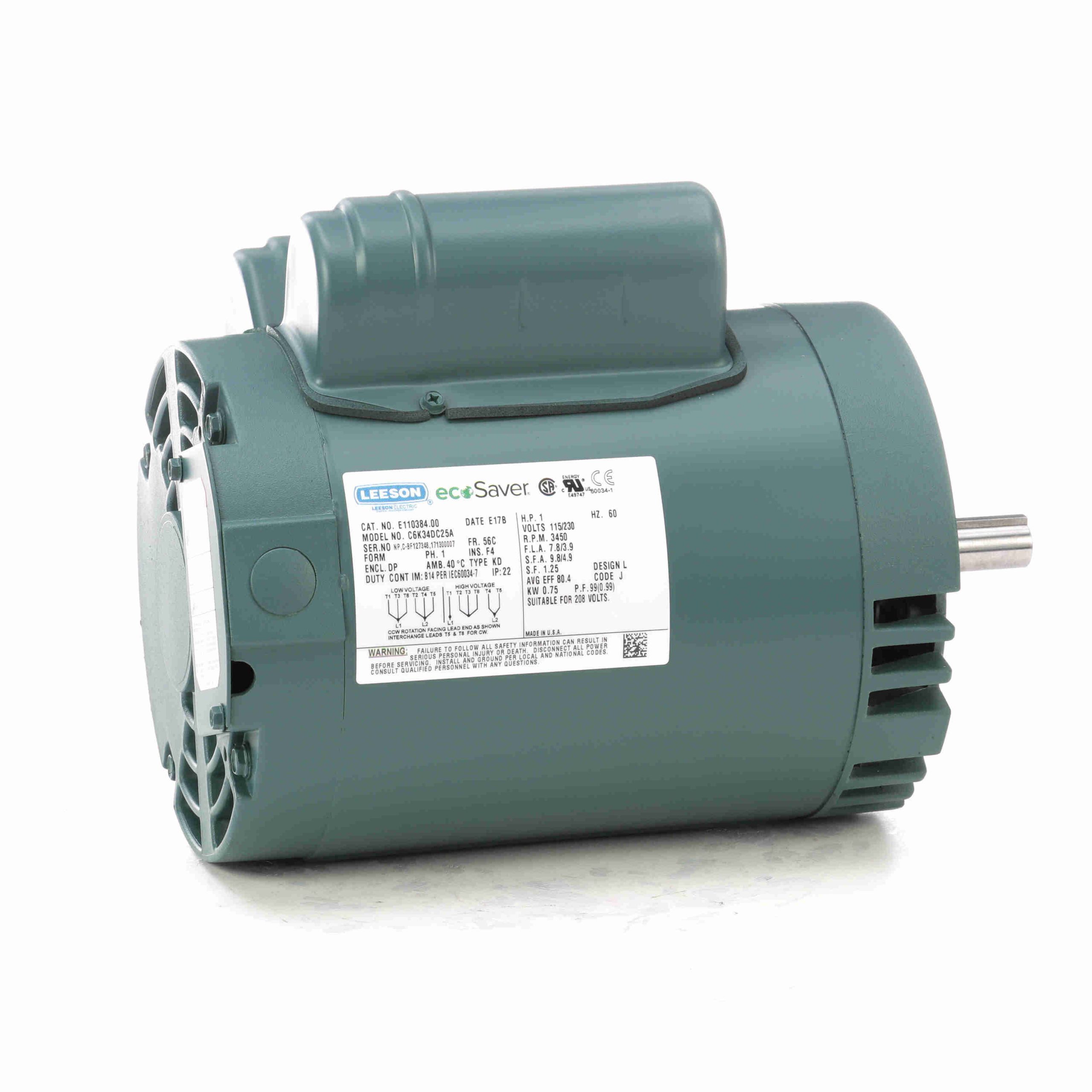

E110384.00 – Leeson 1 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56C Frame, ODP – E110384.00
E110384.00 Leeson Single Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720103784 |
Weight: |
34 LB |
| Packaged Length: |
14.63 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
8.13 IN |
Nameplate Specifications
| Output HP: |
1 Hp |
Output KW: |
0.75 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
7.8/3.9 A |
Speed: |
3450 rpm |
| Service Factor: |
1.25 |
Phase: |
1 |
| Efficiency: |
80.4 % |
Power Factor: |
99 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
L |
KVA Code: |
J |
| Frame: |
56C |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Counterclockwise |
| Resistance Main: |
.526 Ohms |
Mounting: |
Round |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
11.37 in |
| Frame Length: |
6.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
37.10 |
956.0 |
79.96 |
330.0 |
0 |
7.34 |
0.0 |
1.00 |
| Pull-Up |
28.70 |
740.0 |
47.48 |
196.0 |
2,874 |
5.77 |
0.0 |
1.00 |
| Full Load |
3.88 |
100.0 |
24.22 |
100.0 |
3,505 |
0.89 |
0.0 |
1.00 |
| Break-Down |
14.21 |
366.0 |
54.57 |
225.0 |
3,017 |
2.88 |
0.0 |
1.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.89 |
1.54 |
2.21 |
2.96 |
3.88 |
4.85 |
6.00 |
| Rated Output (KW) |
0.09 |
0.30 |
0.49 |
0.68 |
0.89 |
1.11 |
1.36 |
| Efficiency (%) |
0.0 |
61.9 |
77.2 |
83.0 |
84.5 |
84.2 |
82.2 |
| Power Factor (%) |
43.7 |
85.3 |
95.4 |
99.0 |
99.8 |
99.5 |
98.7 |
| Speed (RPM) |
3,596 |
3,579 |
3,558 |
3,534 |
3,505 |
3,474 |
3,437 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
5.88 |
11.84 |
17.86 |
24.22 |
30.26 |
36.68 |
