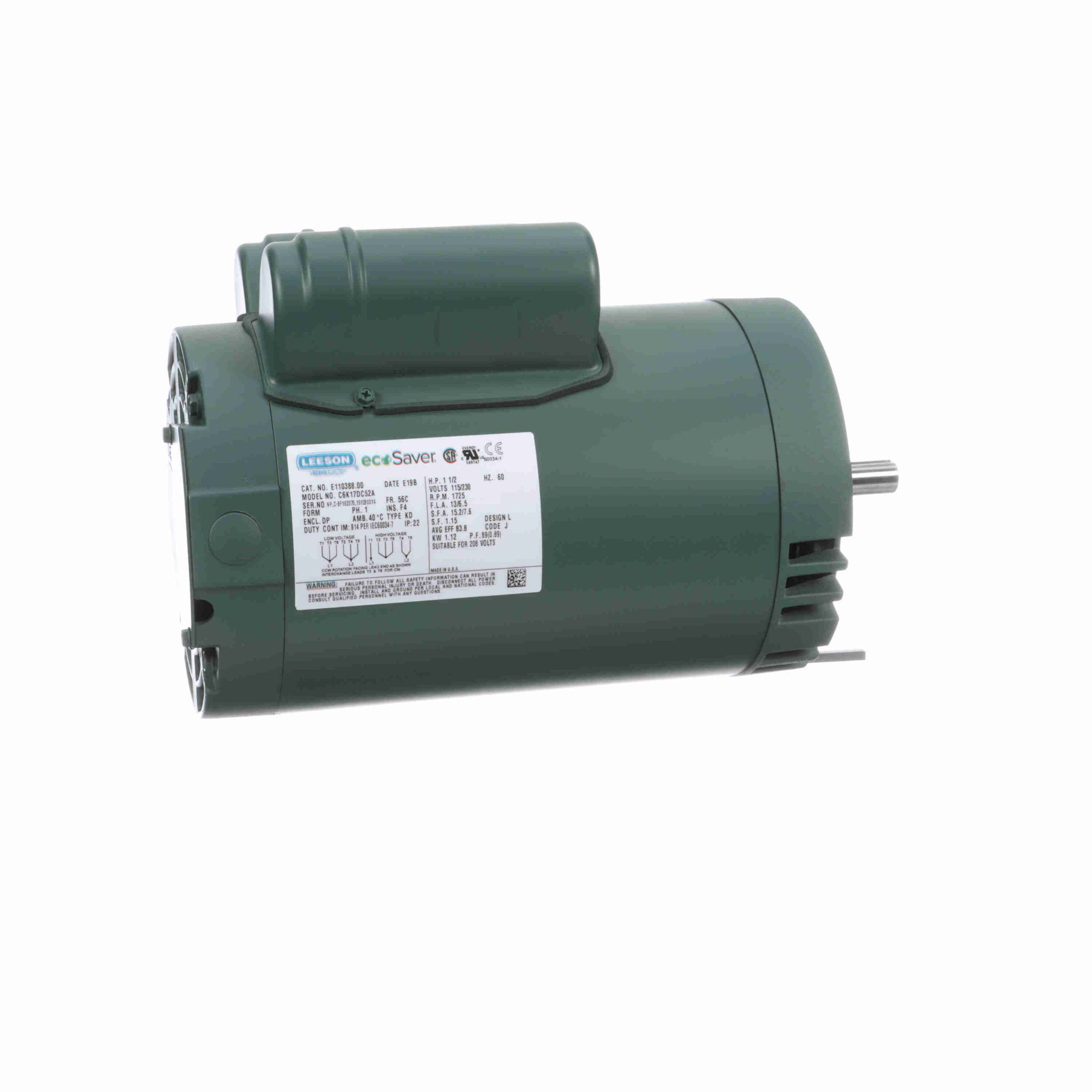

E110388.00 – Leeson 1.50 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56C Frame, ODP – E110388.00

E110388.00 – Leeson 1.50 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56C Frame, ODP – E110388.00

E110388.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Durable rolled steel construction
  • NEMA design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

Leeson Motors
Regal Beloit

Description

E110388.00 – Leeson 1.50 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56C Frame, ODP – E110388.00

E110388.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720041406 Weight: 39 LB
Packaged Length: 14.63 IN Packaged Width: 11.25 IN
Packaged Height: 8.13 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 13.0/6.5 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 83.8 % Power Factor: 89
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: J
Frame: 56C Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 12.87 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 46.64 721.0 11.15 248.0 330 8.99 83.6 1.50
Break-Down 46.70 722.0 13.26 295.0 864 9.18 86.0 1.50
Locked-Rotor 47.20 730.0 12.43 276.0 0 8.99 82.5 1.50
Full Load 6.47 100.0 4.50 100.0 1,755 1.35 91.5 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 2.40 2.77 3.73 5.00 6.47 7.35 8.00
Rated Output (KW) 0.15 0.40 0.69 1.02 1.35 1.55 1.69
Efficiency (%) 0.0 70.6 82.5 83.4 83.0 82.7 82.4
Power Factor (%) 27.5 63.6 80.5 88.3 91.5 92.4 92.7
Speed (RPM) 1,800 1,785 1,775 1,765 1,755 1,748 1,743
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 1.13 2.25 3.38 4.50 5.18 5.63
