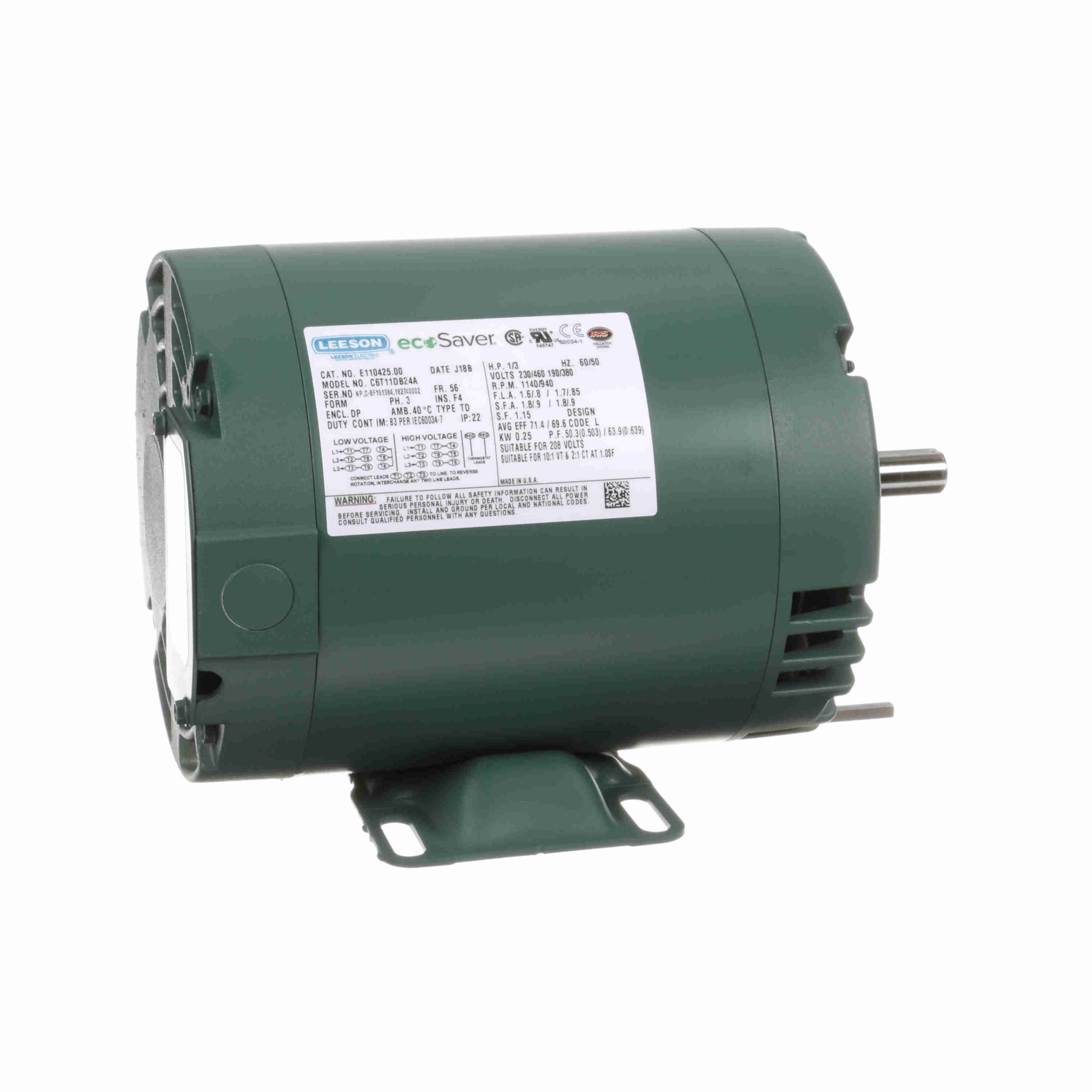

E110425.00 – Leeson 0.33 HP General Purpose Motor, 3 phase, 1200 RPM, 230/460 V, 56 Frame, ODP – E110425.00
E110425.00 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720041796 |
Weight: |
23 LB |
| Packaged Length: |
14.63 IN |
Packaged Width: |
11.25 IN |
| Packaged Height: |
8.13 IN |
Nameplate Specifications
| Output HP: |
0.33 Hp |
Output KW: |
0.25 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
1.6/0.80 A |
Speed: |
1140 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
71.4 % |
Power Factor: |
50.3 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
L |
| Frame: |
56 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6203 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
| Poles: |
6 |
Rotation: |
Reversible |
| Resistance Main: |
0 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
10.37 in |
| Frame Length: |
5.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
3.76 |
495.0 |
60.02 |
252.0 |
0 |
1.98 |
0.0 |
0.33 |
| Break-Down |
2.59 |
341.0 |
67.98 |
285.0 |
868 |
1.59 |
0.0 |
0.33 |
| Pull-Up |
3.67 |
483.0 |
63.14 |
265.0 |
170 |
1.96 |
0.0 |
0.33 |
| Full Load |
0.76 |
100.0 |
23.83 |
100.0 |
1,170 |
0.31 |
0.0 |
0.33 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
0.60 |
0.66 |
0.68 |
0.72 |
0.76 |
0.83 |
0.91 |
| Rated Output (KW) |
0.07 |
0.10 |
0.16 |
0.23 |
0.31 |
0.38 |
0.47 |
| Efficiency (%) |
0.0 |
64.0 |
76.1 |
80.2 |
80.9 |
81.3 |
80.3 |
| Power Factor (%) |
13.5 |
18.7 |
30.4 |
40.8 |
50.3 |
57.9 |
64.2 |
| Speed (RPM) |
1,198 |
1,196 |
1,188 |
1,179 |
1,170 |
1,160 |
1,149 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
25.1 |
0.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
5.94 |
11.82 |
17.80 |
23.83 |
30.22 |
36.65 |
