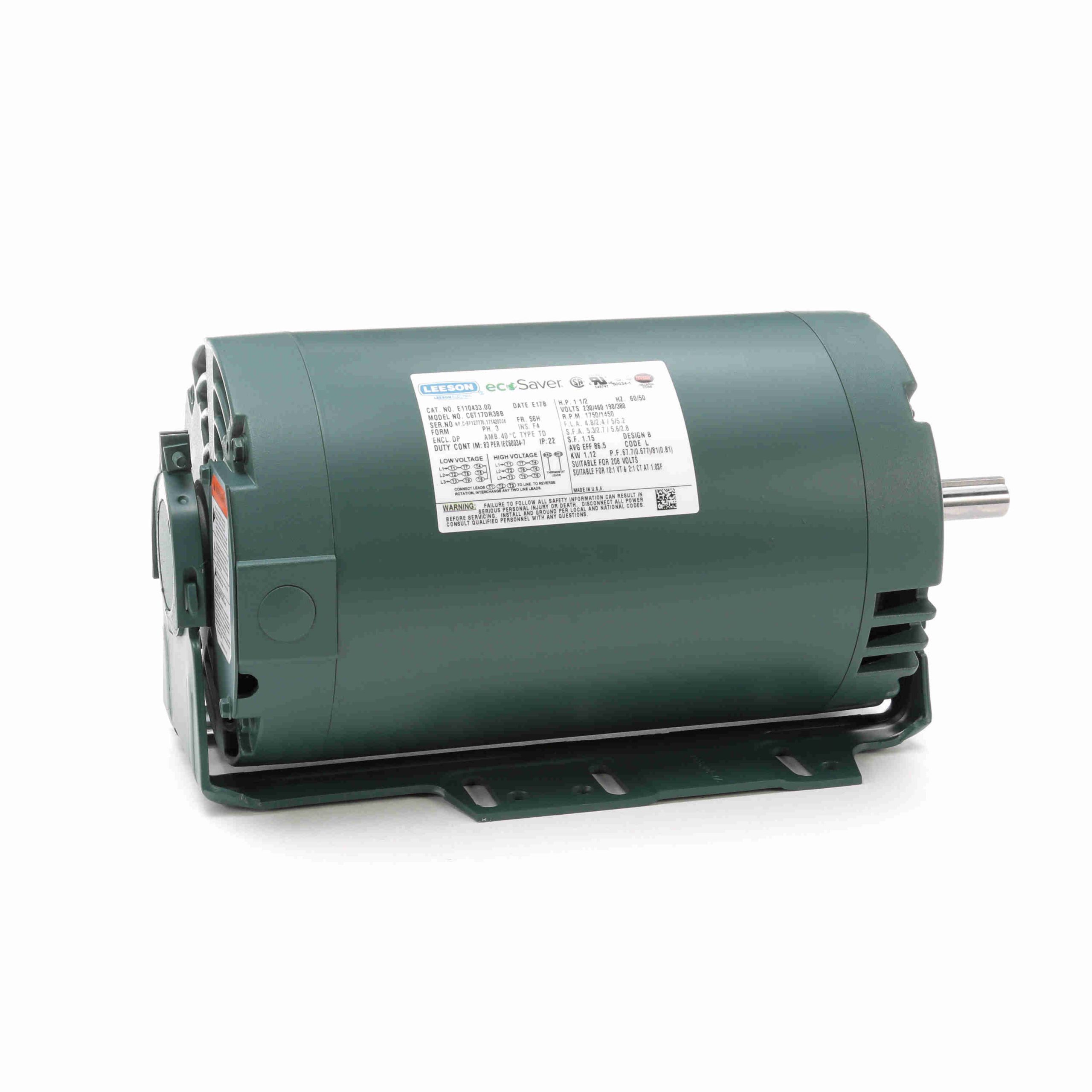

E110433.00 – Leeson 1.50 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56H Frame, ODP – E110433.00

E110433.00 – Leeson 1.50 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56H Frame, ODP – E110433.00

E110433.00 Leeson Three Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Designed for belted loads
  • Ball bearing designs
  • Suitable for belt-driven fans or fan-on-shaft applications
  • Premium efficient
  • Durable rolled steel construction
  • NEMA® Design B performance
  • Continuous Duty

Leeson Motors
Regal Beloit

Description

E110433.00 – Leeson 1.50 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56H Frame, ODP – E110433.00

E110433.00 Leeson Three Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720103630 Weight: 42 LB
Packaged Length: 19.69 IN Packaged Width: 11.25 IN
Packaged Height: 10.63 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60/50 Hz Voltage: 230/460 V
Current: 4.8/2.4 A Speed: 1750 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 67.7
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 56H Enclosure: Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: Y IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 2.27 Ohms Mounting: Resilient Base
Motor Orientation: HORIZONTAL Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 13.82 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 18.04 839.0 14.75 328.0 0 9.91 0.0 1.50
Break-Down 12.09 562.0 19.80 440.0 1,200 7.81 0.0 1.50
Pull-Up 16.06 747.0 15.00 333.0 200 9.40 0.0 1.50
Full Load 2.15 100.0 4.50 100.0 746 1.29 67.7 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 % 175 % 200 %
Current (Amps) 1.23 1.33 1.53 1.81 2.15 2.65 2.52 2.94 3.37 3.85
Rated Output (KW) 0.10 0.38 0.67 0.97 1.29 1.51 1.61 1.95 2.29 2.65
Efficiency (%) 0.0 76.1 84.2 87.0 86.5 84.5 85.9 84.6 83.1 80.9
Power Factor (%) 9.9 35.5 55.1 67.2 67.7 74.0 80.1 83.2 85.1 86.4
Speed (RPM) 1,797 1,786 1,773 1,761 1,746 1,740 1,732 1,716 1,699 1,678
Temp. Rise @ FL 0.0 0.0 0.0 0.0 30.0 40.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 1.13 2.25 3.38 4.50 5.20 5.63 6.75 7.88 9.00
