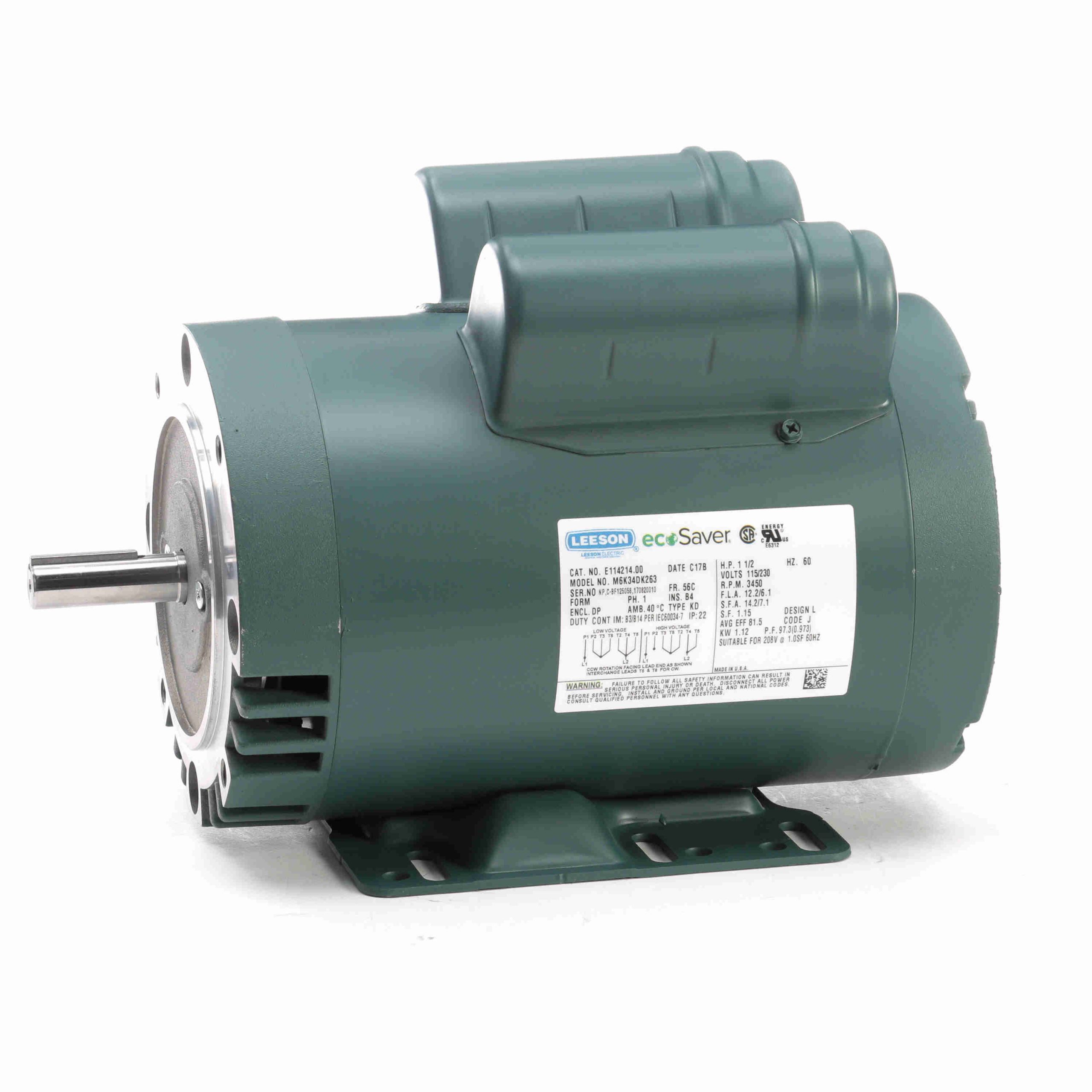

E114214.00 – Leeson 1.50 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56C Frame, ODP – E114214.00

E114214.00 – Leeson 1.50 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56C Frame, ODP – E114214.00

E114214.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Durable rolled steel construction
  • NEMA® design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

Leeson Motors
Regal Beloit

Original price was: $1,424.00.Current price is: $1,015.03.

Description

E114214.00 – Leeson 1.50 HP General Purpose Motor, 1 phase, 3600 RPM, 115/230 V, 56C Frame, ODP – E114214.00

E114214.00 Leeson Single Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 691720991145 Weight: 38 LB
Packaged Length: 14.63 IN Packaged Width: 11.25 IN
Packaged Height: 8.13 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 12.2/6.1 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 81.5 % Power Factor: 97.3
Duty: Continuous Insulation Class: B
Design Code: L KVA Code: J
Frame: 56C Enclosure: Drip Proof
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 22

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 12.37 in
Frame Length: 7.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 Only

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 25.51 418.0 82.28 227.0 2,910 4.98 0.0 1.50
Locked-Rotor 43.48 712.0 106.51 294.0 0 7.73 0.0 1.50
Break-Down 23.90 391.0 83.45 230.0 2,958 4.71 0.0 1.50
Full Load 6.11 100.0 36.25 100.0 3,480 1.37 0.0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.82 1.94 3.21 4.61 6.11 7.84 9.84
Rated Output (KW) 0.15 0.43 0.72 1.04 1.37 1.75 2.17
Efficiency (%) 0.0 65.3 77.7 81.5 81.8 80.4 77.1
Power Factor (%) 0.0 96.0 97.5 97.6 97.3 96.7 95.8
Speed (RPM) 3,597 3,571 3,545 3,514 3,480 3,438 3,388
Temp. Rise @ FL 0.0 0.0 0.0 0.0 22.6 0.0 0.0
Torque (ft-lbs) 0.00 8.82 17.79 27.04 36.25 45.97 55.81
