Description

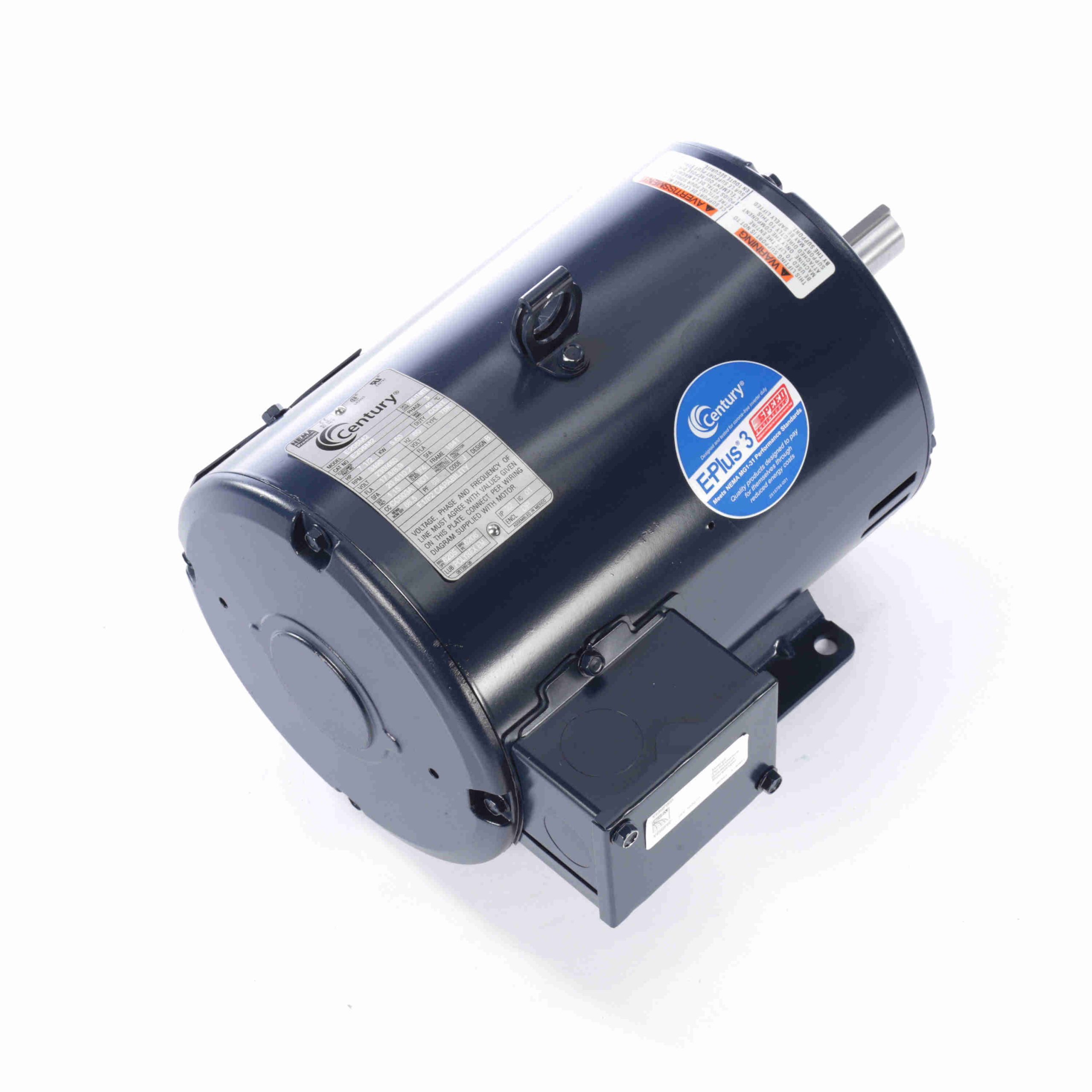

E205M2 – Century 7.5 HP General Purpose Motor, 3 phase, 3600 RPM, 230/460 V, 184T Frame, ODP – E205M2
E205M2 Century Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674066794 |
Weight: |
86 LB |
| Packaged Length: |
17.94 IN |
Packaged Width: |
13.06 IN |
| Packaged Height: |
12.88 IN |
Nameplate Specifications
| Output HP: |
7.5 Hp |
Output KW: |
5.6 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
17.8/8.9 A |
Speed: |
3490 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
184T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
Technical Specifications
| Electrical Type: |
Polyphase |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Reversible |
| Mounting: |
Rigid base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
14.69 in |
| Frame Length: |
10.50 in |
Shaft Diameter: |
1.125 in |
| Shaft Extension: |
2.81 in |
Century Motors
Regal Beloit
