Description

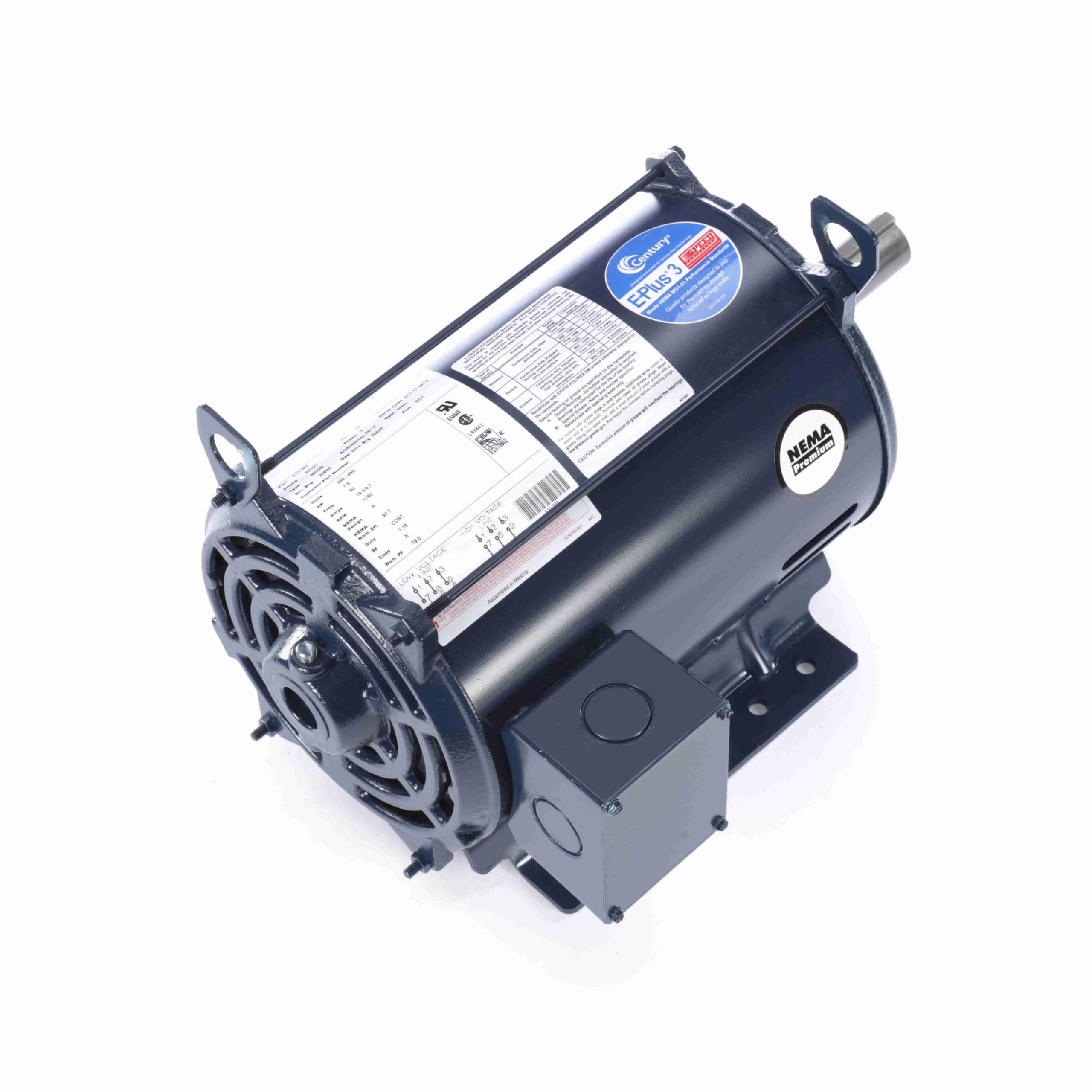

E317M2 – Century 7.5 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 213T Frame, ODP – E317M2
E317M2 Century Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674064240 |
Weight: |
123.00 LB |
| Packaged Length: |
22 IN |
Packaged Width: |
15.25 IN |
| Packaged Height: |
13.38 IN |
Nameplate Specifications
| Output HP: |
7.5 Hp |
Output KW: |
5.6 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
19.4/9.7 A |
Speed: |
1760 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
S213T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
None |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Three Phase |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Counterclockwise |
| Mounting: |
Rigid Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
17.51 in |
| Frame Length: |
11.00 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.5 in |
