Description

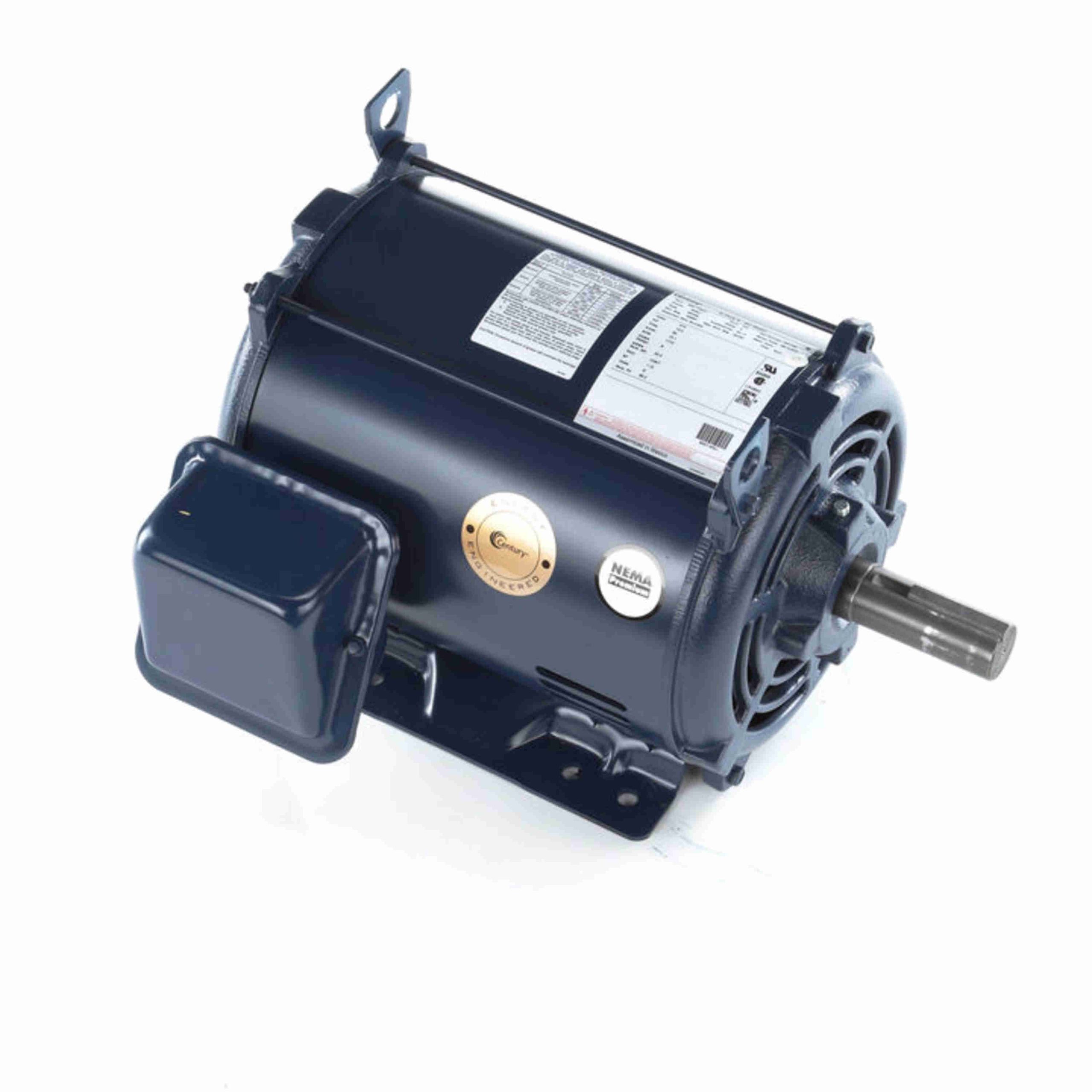

E927M2 – Century 15.0 HP General Purpose Motor, 3 phase, 1800 RPM, 575 V, 254T Frame, ODP – E927M2
E927M2 Century Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674064431 |
Weight: |
236 LB |
| Packaged Length: |
20.25 IN |
Packaged Width: |
18.5 IN |
| Packaged Height: |
18 IN |
Nameplate Specifications
| Output HP: |
15.0 Hp |
Output KW: |
11.2 kW |
| Frequency: |
60 Hz |
Voltage: |
575 V |
| Current: |
15.1 A |
Speed: |
1770 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
S254T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
None |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Three Phase |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Counterclockwise |
| Mounting: |
Rigid base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
22.10 in |
| Frame Length: |
13.00 in |
Shaft Diameter: |
1.625 in |
| Shaft Extension: |
4.4 in |
Century Motors
Regal Beloit
