Description

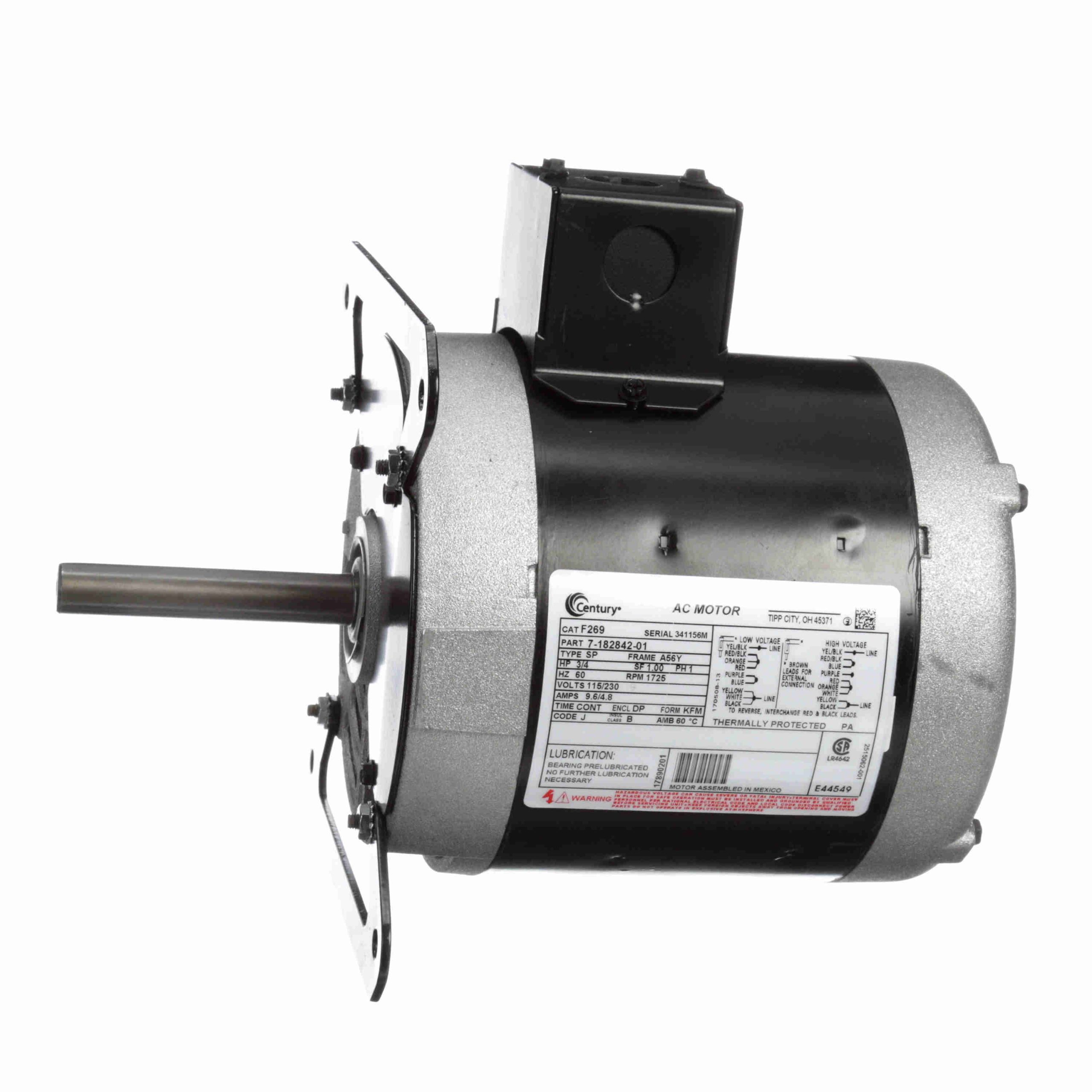

F269 – Century 3/4 HP Convection and Pizza Oven Motor, 1 phase, 1800 RPM, 115/230 V, 56Y Frame, ODP – F269
F269 Century Convection and Pizza Oven Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674019899 |
Weight: |
17 LB |
| Packaged Length: |
15 IN |
Packaged Width: |
13 IN |
| Packaged Height: |
10.5 IN |
Nameplate Specifications
| Output HP: |
3/4 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60 Hz |
Voltage: |
115/230 V |
| Current: |
9.6/4.8 A |
Speed: |
1725 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
A56Y |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
60 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Split Phase, Induction Run, Single Or Dual Voltage |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible Clockwise |
| Mounting: |
Round |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
10.87 in |
| Frame Length: |
4.38 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
3.5 in |
Century Motors
Regal Beloit
