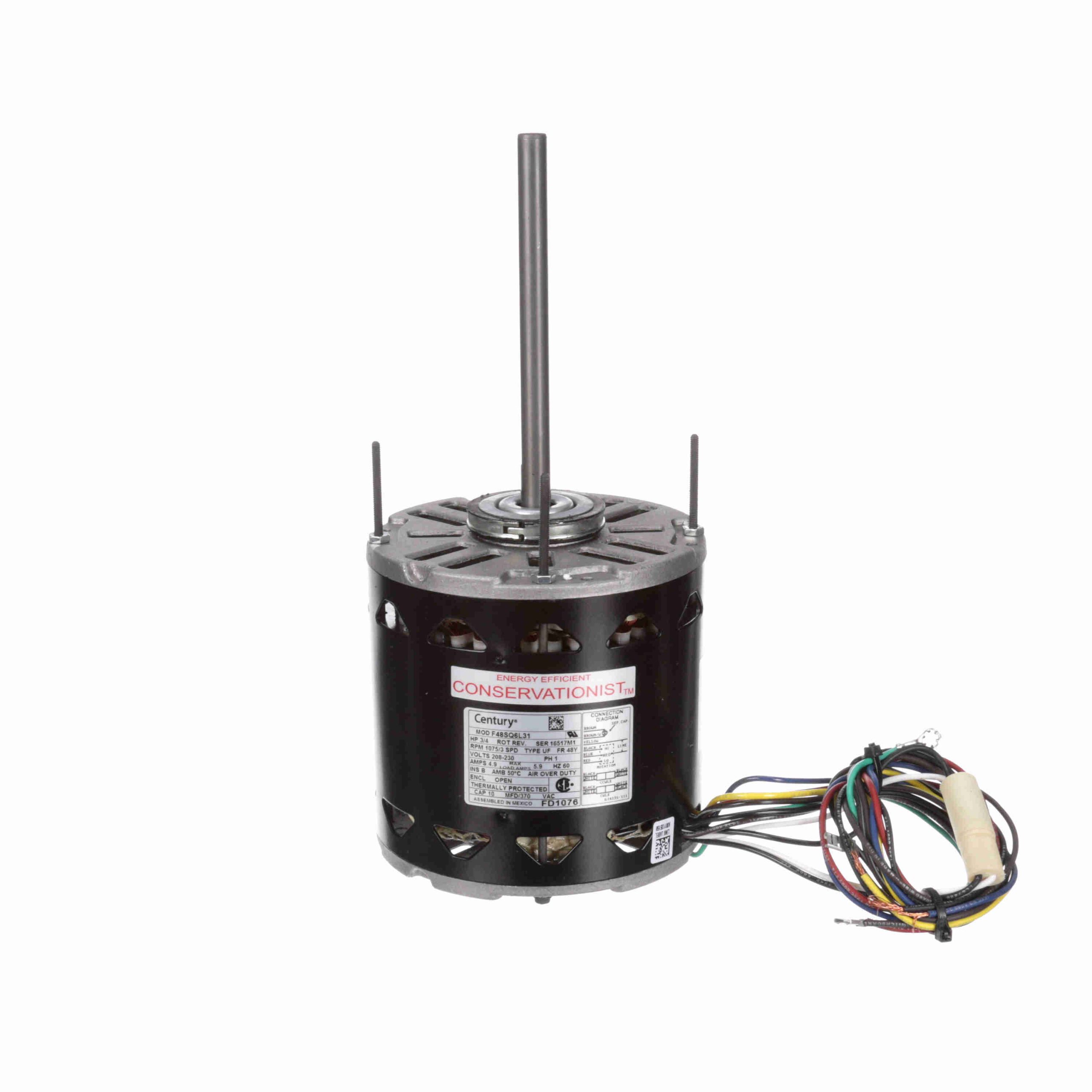

FD1076 – Century 3/4 HP Fan & Blower Motor, 1075 RPM, 3 Speed, 208-230 Volts, 48 Frame, OAO – FD1076
FD1076 Century Direct Drive Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674020529 |
Weight: |
18 LB |
| Packaged Length: |
15.55 IN |
Packaged Width: |
6.45 IN |
| Packaged Height: |
6.81 IN |
Nameplate Specifications
| Output HP: |
3/4 Hp |
Output KW: |
0.56 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Current: |
4.9 A |
Speed: |
1075 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
48Y |
Enclosure: |
Open Enclosed |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
50 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Reversible |
| Mounting: |
Resilient Rings |
Motor Orientation: |
Any |
| Drive End Bearing: |
Ball |
Opp Drive End Bearing: |
Ball |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Flat |
| Overall Length: |
12.30 in |
Frame Length: |
4.75 in |
| Shaft Diameter: |
0.500 in |
Shaft Extension: |
6.4 FLAT in |
