Description

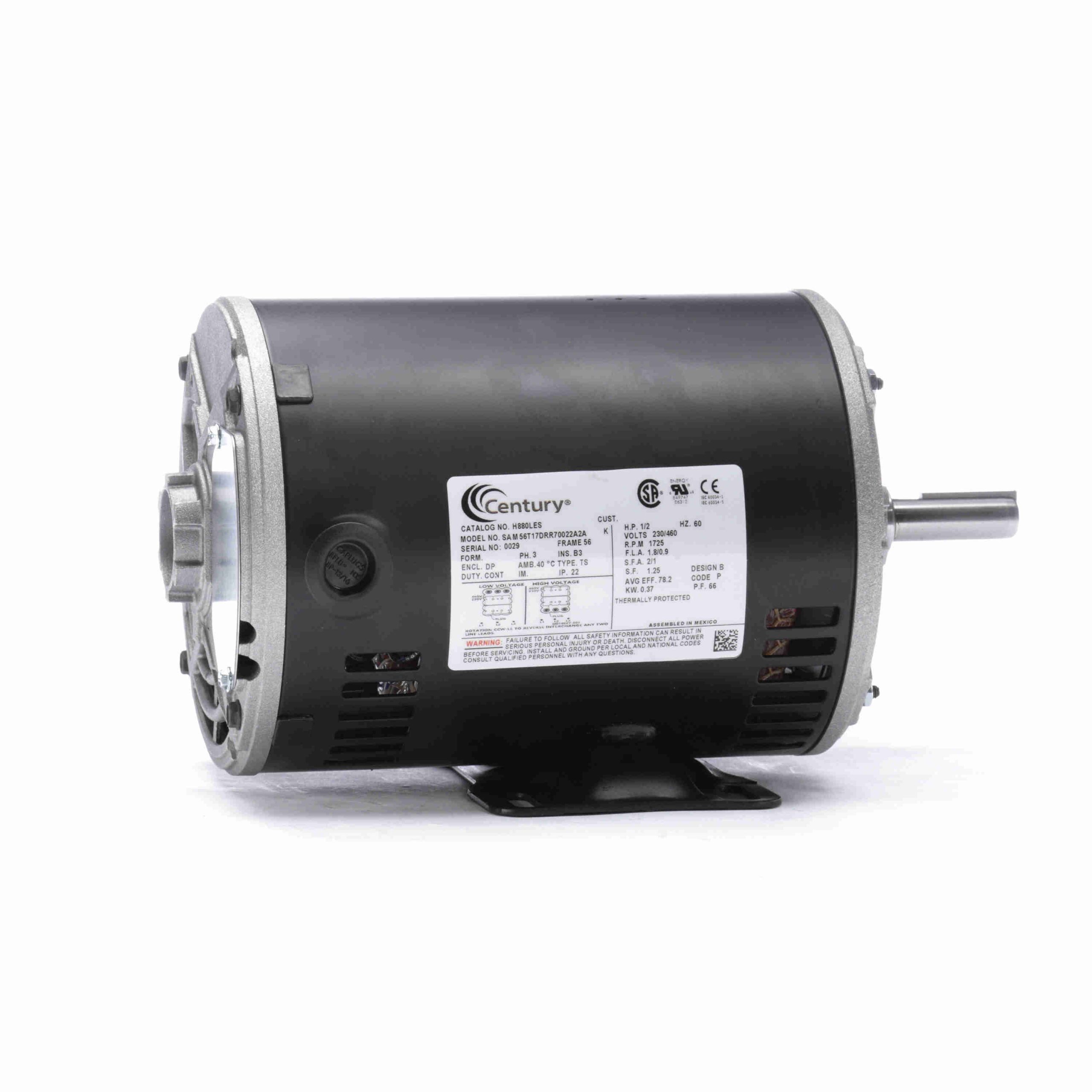

H880LES – Century 0.5 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56 Frame, ODP – H880LES
H880LES Century Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674074164 |
Weight: |
30 LB |
| Packaged Length: |
16 IN |
Packaged Width: |
8 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
0.5 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
1.8/0.9 A |
Speed: |
1725 rpm |
| Service Factor: |
1.25 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
56 |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
Technical Specifications
| Electrical Type: |
Three Phase |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible |
| Mounting: |
Rigid base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
NEMA 56 |
Overall Length: |
11.99 in |
| Frame Length: |
7.74 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
1.88 in |
Century Motors
Regal Beloit
