Description

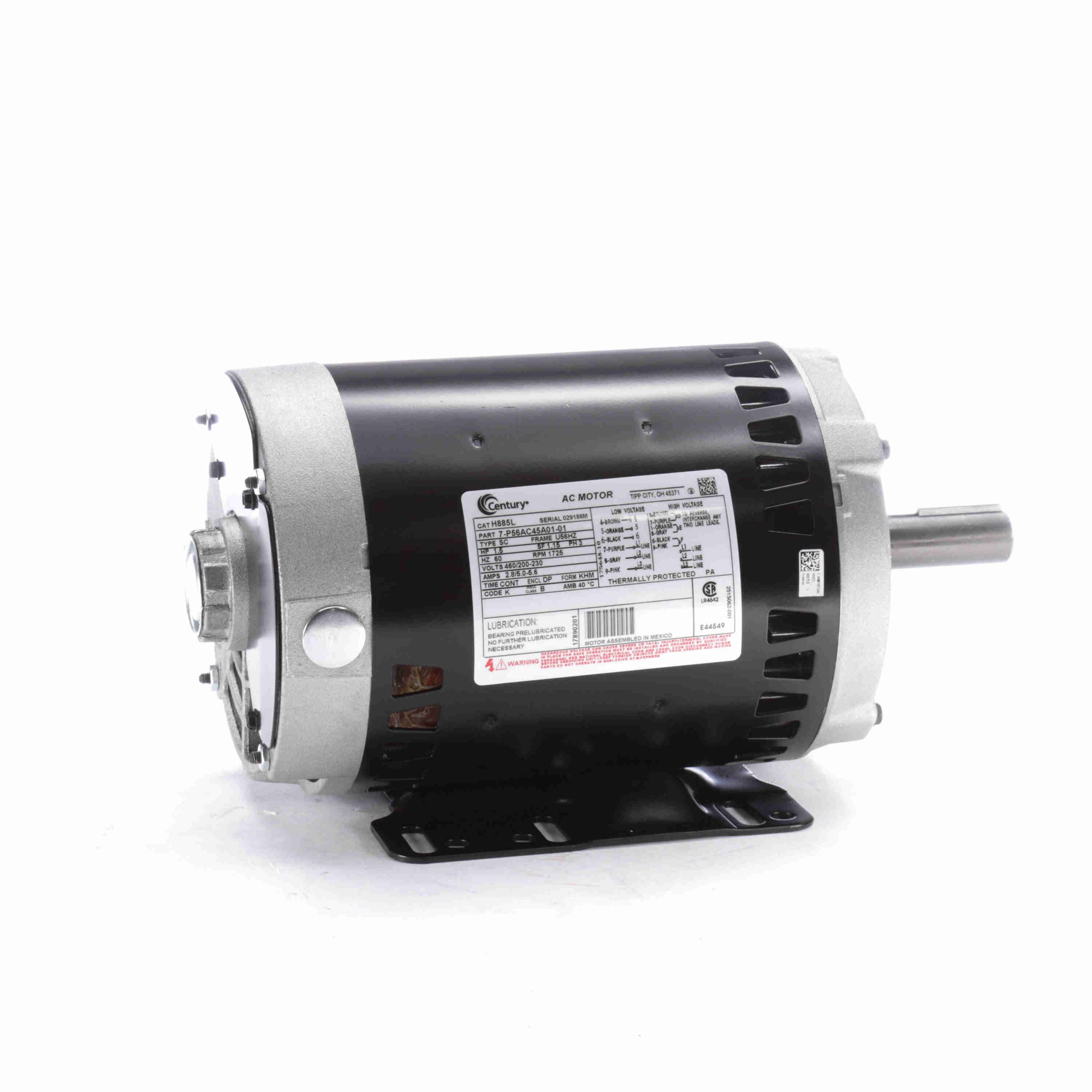

H885L – Century 1.5 HP General Purpose Motor, 3 phase, 1800 RPM, 460/200-230 V, 56HZ Frame, ODP – H885L
H885L Century Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674056481 |
Weight: |
29 LB |
| Packaged Length: |
16 IN |
Packaged Width: |
8 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
1.5 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60 Hz |
Voltage: |
460/200-230 V |
| Current: |
2.8/5.0-5.6 A |
Speed: |
1725 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
U56HZ |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Polyphase, Induction Type, Single Or Dual Voltage |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Reversible Counterclockwise |
| Mounting: |
Rigid Base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
12.81 in |
| Frame Length: |
7.00 in |
Shaft Diameter: |
0.875 in |
| Shaft Extension: |
2.31 in |
Century Motors
Regal Beloit
