Description

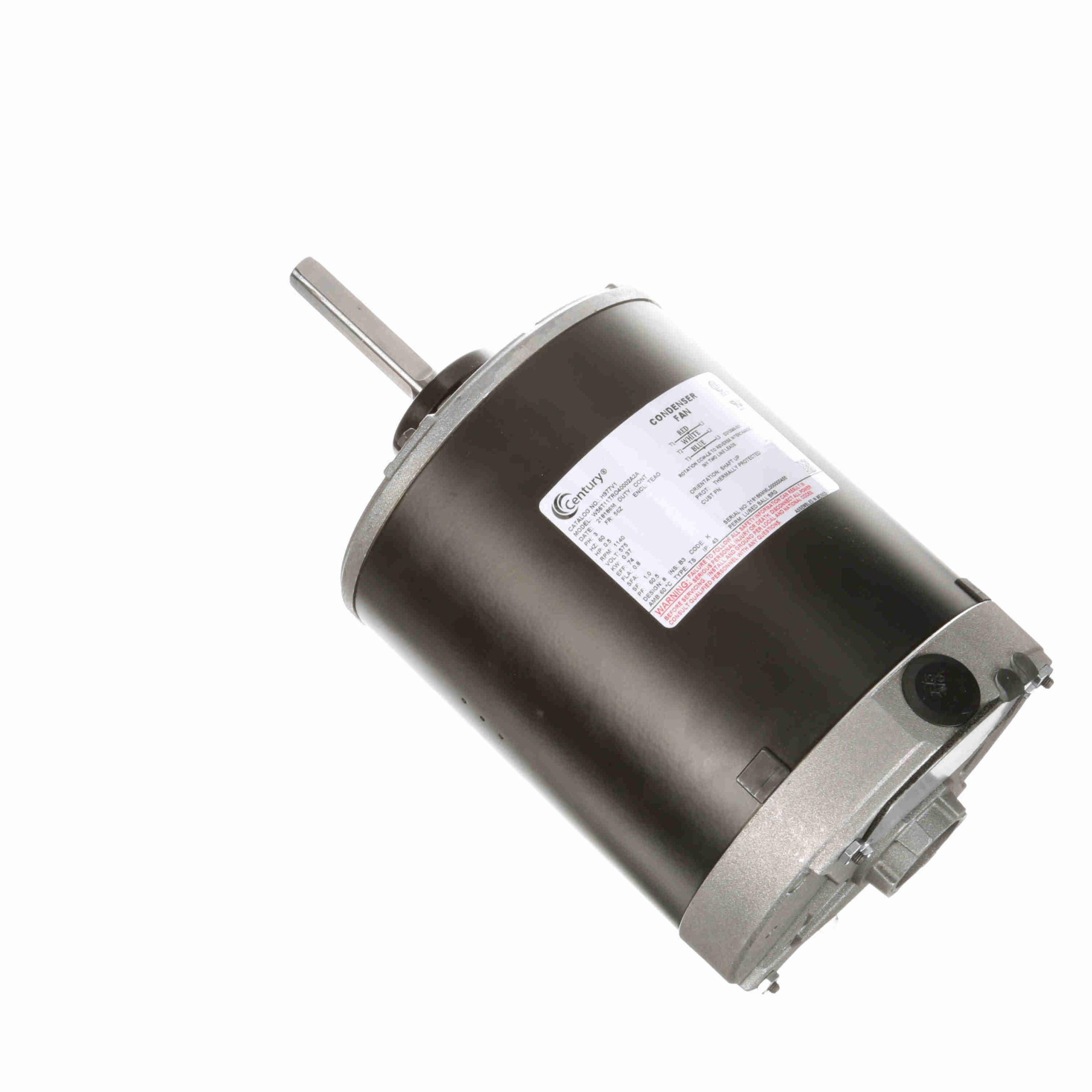

H977V1 – Century 0.5 HP Condenser Fans HVAC/R Motor, 3 phase, 1200 RPM, 575 V, 56Z Frame, TEAO – H977V1
H977V1 Century Condenser Fans Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674074942 |
Weight: |
25 LB |
| Packaged Length: |
15.5 IN |
Packaged Width: |
10.5 IN |
| Packaged Height: |
10 IN |
Nameplate Specifications
| Output HP: |
0.5 Hp |
Output KW: |
0.37 kW |
| Frequency: |
60 Hz |
Voltage: |
575 V |
| Current: |
0.8 A |
Speed: |
1140 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
56Z |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
60 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Three Phase |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Reversible |
| Mounting: |
Round |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
13.01 in |
| Frame Length: |
6.75 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
3.44 in |
