Description

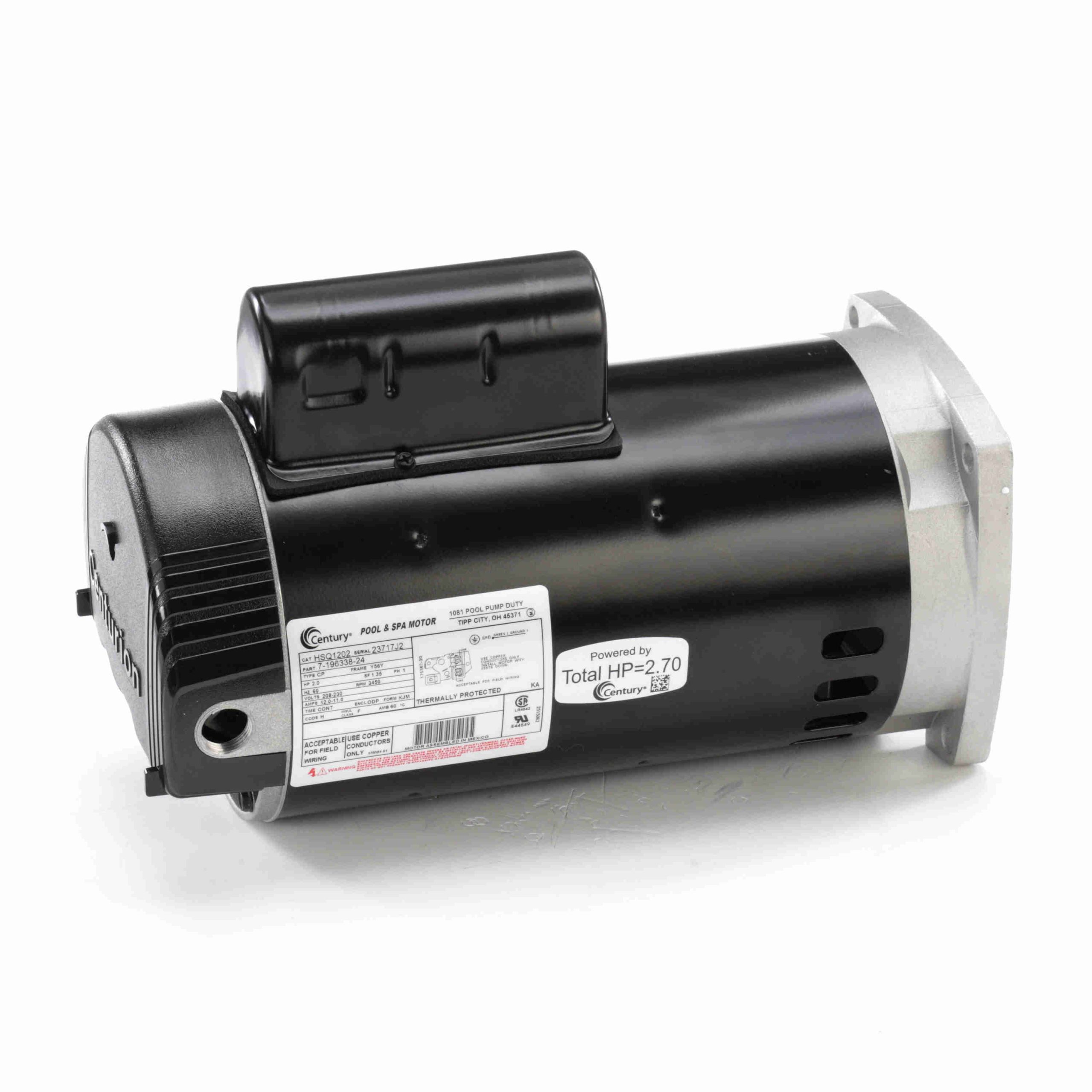

HSQ1202 – Century 2.0 HP Pool Pump Motor, 1 phase, 3600 RPM, 208-230 V, 56Y Frame, ODP – HSQ1202
HSQ1202 Century Induction Pool Pump Motors
General Specifications
| UPC: |
786674025234 |
Weight: |
38 LB |
| Packaged Length: |
16 IN |
Packaged Width: |
9.5 IN |
| Packaged Height: |
11 IN |
Nameplate Specifications
| Output HP: |
2.0 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Current: |
12.0-11.0 A |
Speed: |
3450 rpm |
| Service Factor: |
1.35 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
Y56Y |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
60 °C |
| UL: |
Recognized |
CSA: |
Y |
Technical Specifications
| Electrical Type: |
Capacitor Start, Capacitor Run, Single Or Dual Voltage |
Poles: |
2 |
| Rotation: |
Counterclockwise Pump End |
Mounting: |
Square Flange |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Threaded |
Overall Length: |
14.13 in |
| Frame Length: |
9.75 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
0.91 in |
