Description

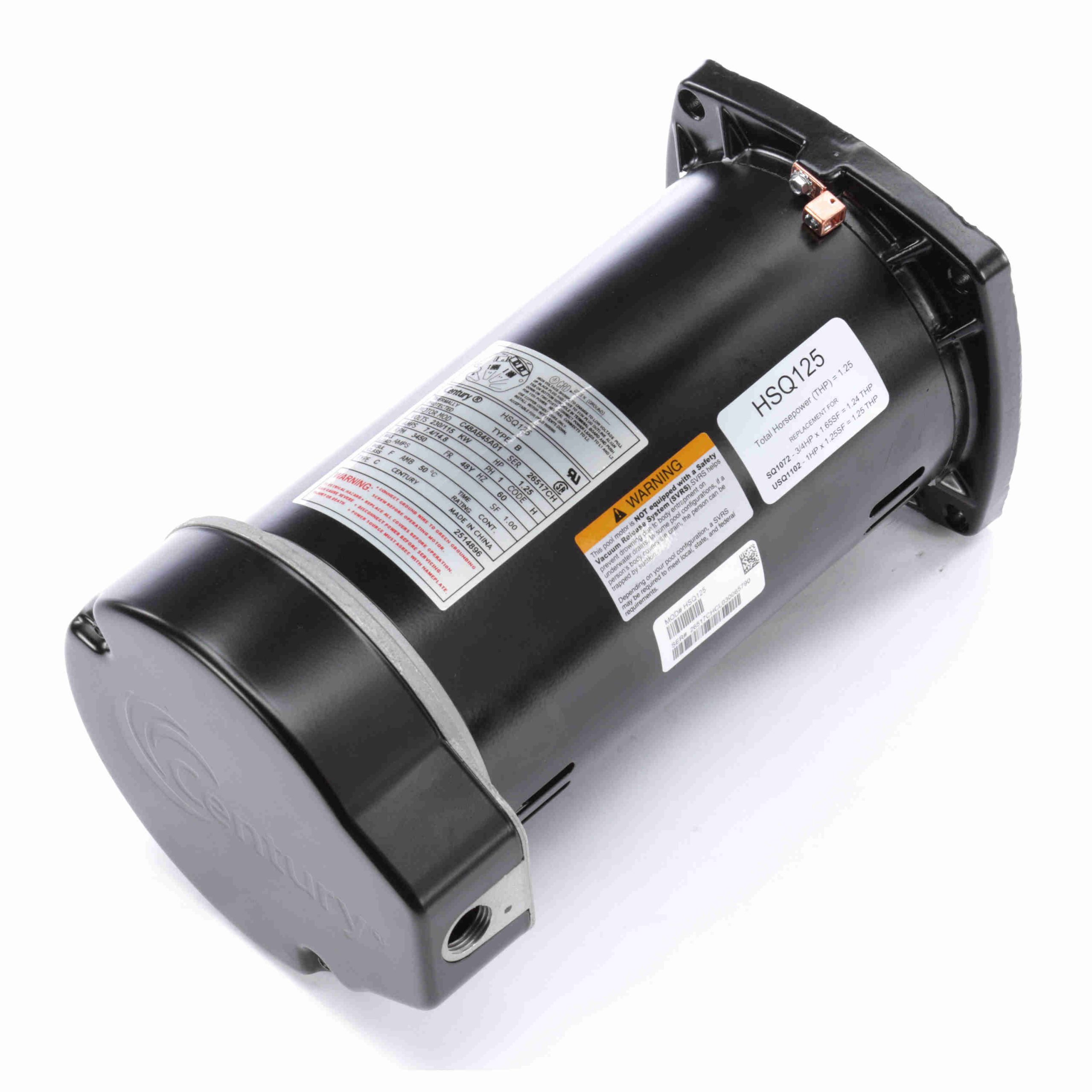

HSQ125 – Century 1.25 HP Pool Pump Motor, 1 phase, 3600 RPM, 230/115 V, 48Y Frame, ODP – HSQ125
HSQ125 Century Induction Pool Pump Motors
General Specifications
| UPC: |
786674069757 |
Weight: |
23 LB |
| Packaged Length: |
15.98 IN |
Packaged Width: |
9.13 IN |
| Packaged Height: |
9.02 IN |
Nameplate Specifications
| Output HP: |
1.25 Hp |
Output KW: |
0.93 kW |
| Frequency: |
60 Hz |
Voltage: |
230/115 V |
| Current: |
7.4/14.8 A |
Speed: |
3450 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
48Y |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
50 °C |
| UL: |
Recognized |
CSA: |
Y |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Poles: |
2 |
| Rotation: |
Counterclockwise Pump End |
Mounting: |
Square Flange |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Threaded |
Overall Length: |
12.98 in |
| Frame Length: |
9.00 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
0.906 in |
Century Motors
Regal Beloit
