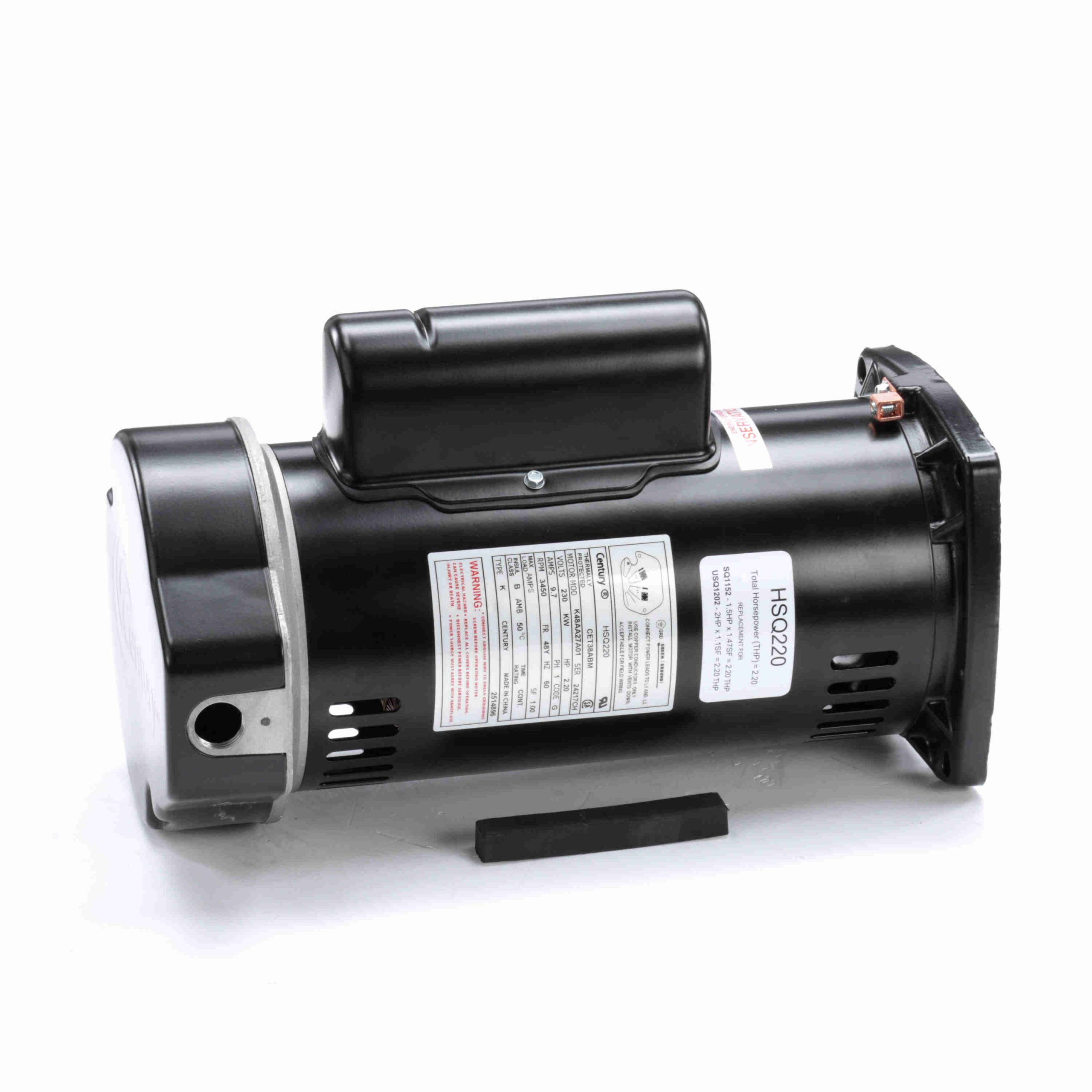

HSQ220 – Century 2.20 HP Pool Pump Motor, 1 phase, 3600 RPM, 230 V, 48Y Frame, ODP – HSQ220

HSQ220 – Century 2.20 HP Pool Pump Motor, 1 phase, 3600 RPM, 230 V, 48Y Frame, ODP – HSQ220

HSQ220 Century Induction Pool Pump Motors

  • Premium Sealed 203 Bearings Both Ends
  • Open & Accessible Terminal Board & Wiring Compartment For Easy Installation
  • New Triple Seal Protection on Pump-End Bearing
  • Voltage Change Device
  • Definitive Shaft Access (7/16″ Wrench)
  • UL 1081 Design
  • 50°C Ambient
  • 303 Stainless Steel Shaft
  • Centurion PRO

Century Motors
Regal Beloit

Description

HSQ220 – Century 2.20 HP Pool Pump Motor, 1 phase, 3600 RPM, 230 V, 48Y Frame, ODP – HSQ220

HSQ220 Century Induction Pool Pump Motors

General Specifications

UPC: 786674069771 Weight: 33 LB
Packaged Length: 16 IN Packaged Width: 10 IN
Packaged Height: 9 IN

Nameplate Specifications

Output HP: 2.20 Hp Output KW: 1.6 kW
Frequency: 60 Hz Voltage: 230 V
Current: 9.7 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: F
Frame: 48Y Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Poles: 2
Rotation: Counterclockwise Pump End Mounting: Square Flange
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 14.77 in
Frame Length: 10.13 in Shaft Diameter: 0.625 in
Shaft Extension: 0.906 in
