Description

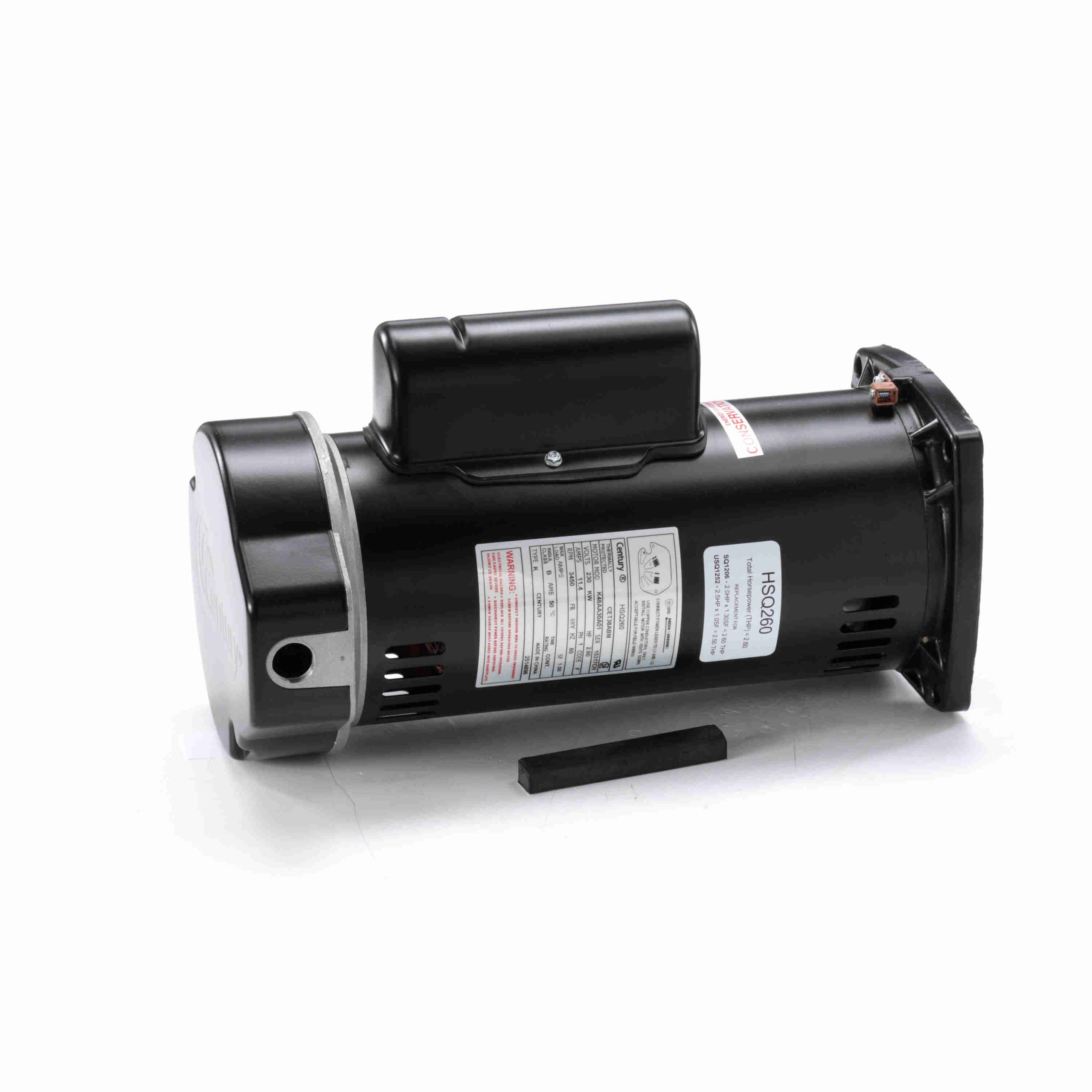

HSQ260 – Century 2.60 HP Pool Pump Motor, 1 phase, 3600 RPM, 230 V, 48Y Frame, ODP – HSQ260
HSQ260 Century Induction Pool Pump Motors
General Specifications
| UPC: |
786674069818 |
Weight: |
33 LB |
| Packaged Length: |
19 IN |
Packaged Width: |
10 IN |
| Packaged Height: |
9 IN |
Nameplate Specifications
| Output HP: |
2.60 Hp |
Output KW: |
1.9 kW |
| Frequency: |
60 Hz |
Voltage: |
230 V |
| Current: |
11.4 A |
Speed: |
3450 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
48Y |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
50 °C |
| UL: |
Recognized |
CSA: |
Y |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Poles: |
2 |
| Rotation: |
Counterclockwise Pump End |
Mounting: |
Square Flange |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Threaded |
Overall Length: |
15.52 in |
| Frame Length: |
10.88 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
0.906 in |
Century Motors
Regal Beloit
