Description

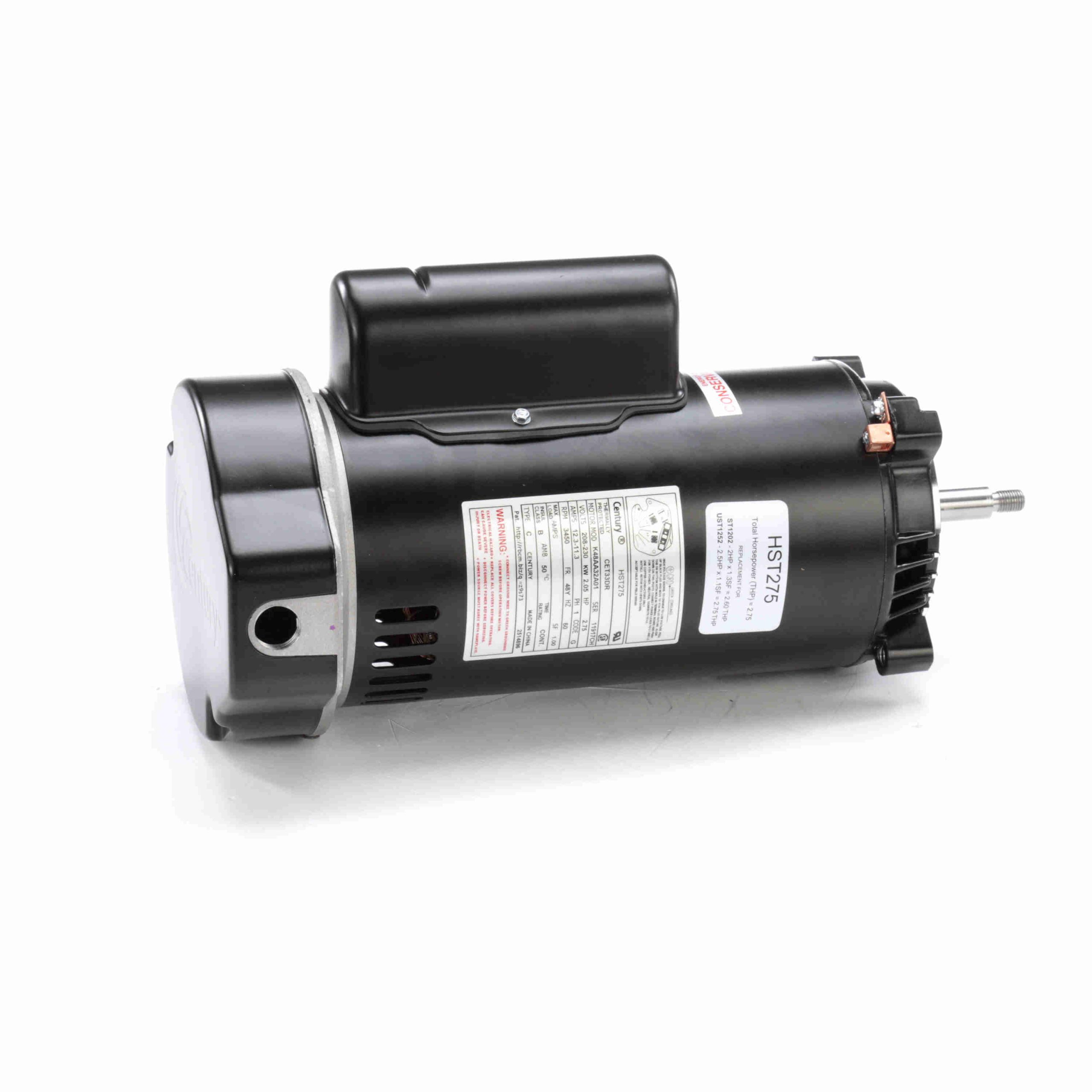

HST275 – Century 2.75 HP Pool Pump Motor, 1 phase, 3450 RPM, 208-230 V, 56J Frame, ODP – HST275
HST275 Century Induction Pool Pump Motors
General Specifications
| UPC: |
786674070241 |
Weight: |
33 LB |
| Packaged Length: |
16.62 |
Packaged Width: |
10.62 |
| Packaged Height: |
10.62 |
Nameplate Specifications
| Output HP: |
2.75 Hp |
Output KW: |
2.1 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Speed: |
3450 rpm |
Service Factor: |
1 |
| Phase: |
1 |
Duty: |
Continuous |
| Insulation Class: |
F |
Frame: |
56J |
| Enclosure: |
Open Drip Proof |
Thermal Protection: |
Automatic |
| Ambient Temperature: |
50 °C |
UL: |
Recognized |
| CSA: |
Y |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Poles: |
2 |
| Rotation: |
Counterclockwise Pump End |
Mounting: |
C Face |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
7/16 Threaded |
Overall Length: |
16.24 in |
| Frame Length: |
9.50 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
2.57 in |
Century Motors
Regal Beloit
