Description

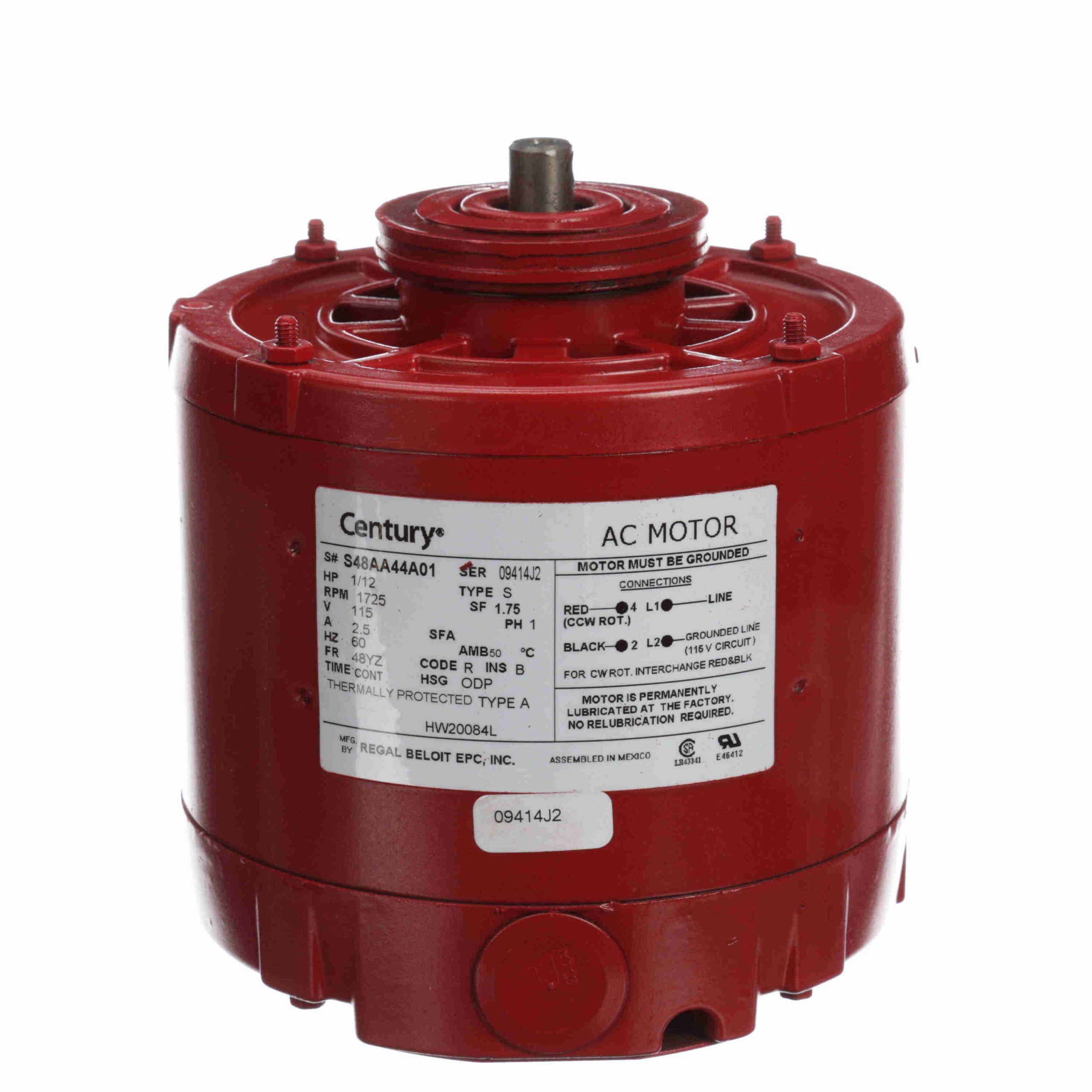

HW20084L – Century 1/12 HP Circulator pump Motor, 1 phase, 1800 RPM, 115 V, 48YZ Frame, ODP – HW20084L
HW20084L Century Circulator Pump Motors
General Specifications
| UPC: |
786674025265 |
Weight: |
11 LB |
| Packaged Length: |
11 IN |
Packaged Width: |
7.5 IN |
| Packaged Height: |
7 IN |
Nameplate Specifications
| Output HP: |
1/12 Hp |
Output KW: |
0.06 kW |
| Frequency: |
60 Hz |
Voltage: |
115 V |
| Current: |
2.5 A |
Speed: |
1725 rpm |
| Service Factor: |
1.75 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
48YZ |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
50 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Split Phase |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Counterclockwise |
| Mounting: |
Resilient Rings |
Drive End Bearing: |
Sleeve |
| Opp Drive End Bearing: |
Sleeve |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Spot Drill |
Overall Length: |
6.74 in |
| Frame Length: |
3.44 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
0.47 in |
Century Motors
Regal Beloit
