Description

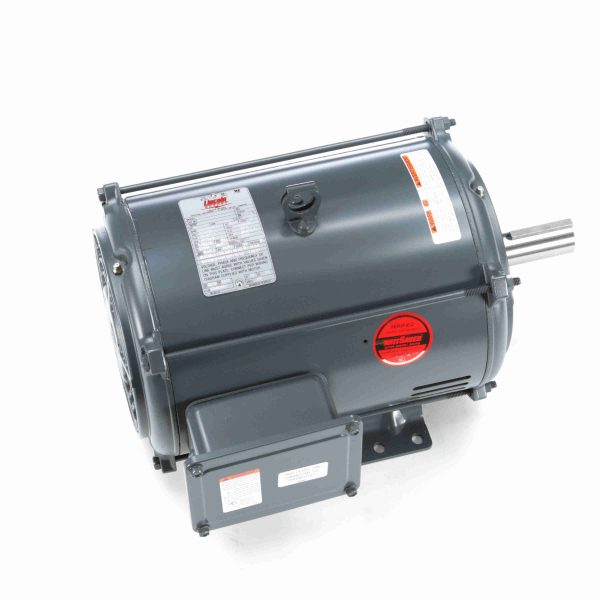

LM13831 – Leeson 400 HP General Purpose Motor, 3 phase, 3600 RPM, 460 V, 449TS Frame, ODP – LM13831
LM13831 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720003305 |
Weight: |
0 LB |
| Packaged Length: |
46 IN |
Packaged Width: |
37 IN |
| Packaged Height: |
30.15 IN |
Nameplate Specifications
| Output HP: |
400 Hp |
Output KW: |
300.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
460 V |
| Current: |
430.0 A |
Speed: |
3575 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Efficiency: |
95.8 % |
Power Factor: |
91.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
G |
| Frame: |
449TS |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
315 |
Opp Drive End Bearing Size: |
315 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Wye Start Delta Run |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.01 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
TS |
Overall Length: |
44.00 in |
| Frame Length: |
31.77 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
4.75 in |
Assembly/Box Mounting: |
F1 Only |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Break-Down |
1,950.00 |
453.0 |
1,550.00 |
264.0 |
3,550 |
|
65.0 |
400.00 |
| 2/3 |
2,500.00 |
581.0 |
1,175.00 |
200.0 |
2,400 |
|
|
400.00 |
| Pull-Up |
2,650.00 |
616.0 |
1,000.00 |
170.0 |
1,800 |
|
|
400.00 |
| No Load |
65.00 |
15.0 |
0.00 |
0.0 |
3,600 |
|
|
400.00 |
| Locked-Rotor |
2,900.00 |
674.0 |
1,125.00 |
191.0 |
0 |
|
29.0 |
400.00 |
| Full Load |
430.00 |
100.0 |
588.00 |
100.0 |
3,575 |
|
|
400.00 |
| 1/3 |
2,850.00 |
663.0 |
950.00 |
162.0 |
1,200 |
|
|
400.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
65.00 |
122.00 |
217.00 |
320.00 |
430.00 |
492.00 |
538.00 |
| Rated Output (KW) |
3.50 |
79.00 |
155.00 |
232.00 |
311.00 |
358.00 |
390.00 |
| Efficiency (%) |
0.0 |
94.5 |
96.2 |
96.2 |
95.8 |
95.8 |
95.4 |
| Power Factor (%) |
6.5 |
81.0 |
89.5 |
91.0 |
91.5 |
91.5 |
91.0 |
| Speed (RPM) |
3,600 |
3,595 |
3,588 |
3,580 |
3,575 |
3,570 |
3,567 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
75.0 |
105.0 |
0.0 |
| Torque (ft-lbs) |
0.00 |
146.00 |
293.00 |
440.00 |
588.00 |
677.00 |
736.00 |
