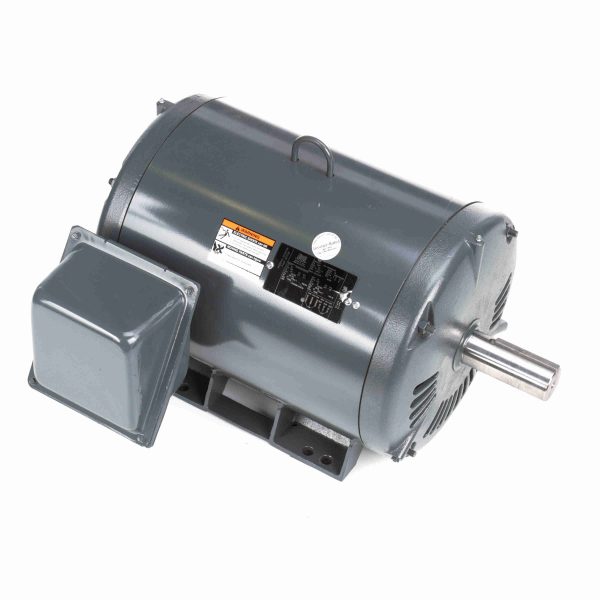

LM28904 – Leeson 60 HP Elevator Duty Motor, 3 phase, 1800 RPM, 230/460 V, 326T Frame, ODP – LM28904
LM28904 Leeson Elevator Duty Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720103241 |
Weight: |
530 LB |
Nameplate Specifications
| Output HP: |
60 Hp |
Output KW: |
44.8 kW |
| Frequency: |
60/60 Hz |
Voltage: |
230/460 V |
| Current: |
153.0/76.5 A |
Speed: |
1780 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
92.4 % |
Power Factor: |
79 |
| Duty: |
120/80 Starts/Hour |
Insulation Class: |
F |
| Design Code: |
INV |
KVA Code: |
G |
| Frame: |
326T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
311 |
Opp Drive End Bearing Size: |
309 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Wye Start Delta Run |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.138 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
T |
Overall Length: |
27.51 in |
| Frame Length: |
16.57 in |
Shaft Diameter: |
2.125 in |
| Shaft Extension: |
5.25 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| No Load |
26.00 |
40.0 |
0.00 |
0.0 |
1,800 |
|
|
50.00 |
| 2/3 |
290.00 |
446.0 |
300.00 |
203.0 |
1,200 |
|
|
50.00 |
| Locked-Rotor |
342.00 |
526.0 |
285.00 |
193.0 |
0 |
|
37.0 |
50.00 |
| Break-Down |
225.00 |
346.0 |
356.00 |
241.0 |
1,710 |
|
70.0 |
50.00 |
| 1/3 |
325.00 |
500.0 |
240.00 |
162.0 |
600 |
|
|
50.00 |
| Full Load |
65.00 |
100.0 |
148.00 |
100.0 |
1,785 |
|
|
50.00 |
| Pull-Up |
310.00 |
477.0 |
255.00 |
172.0 |
900 |
|
|
50.00 |
