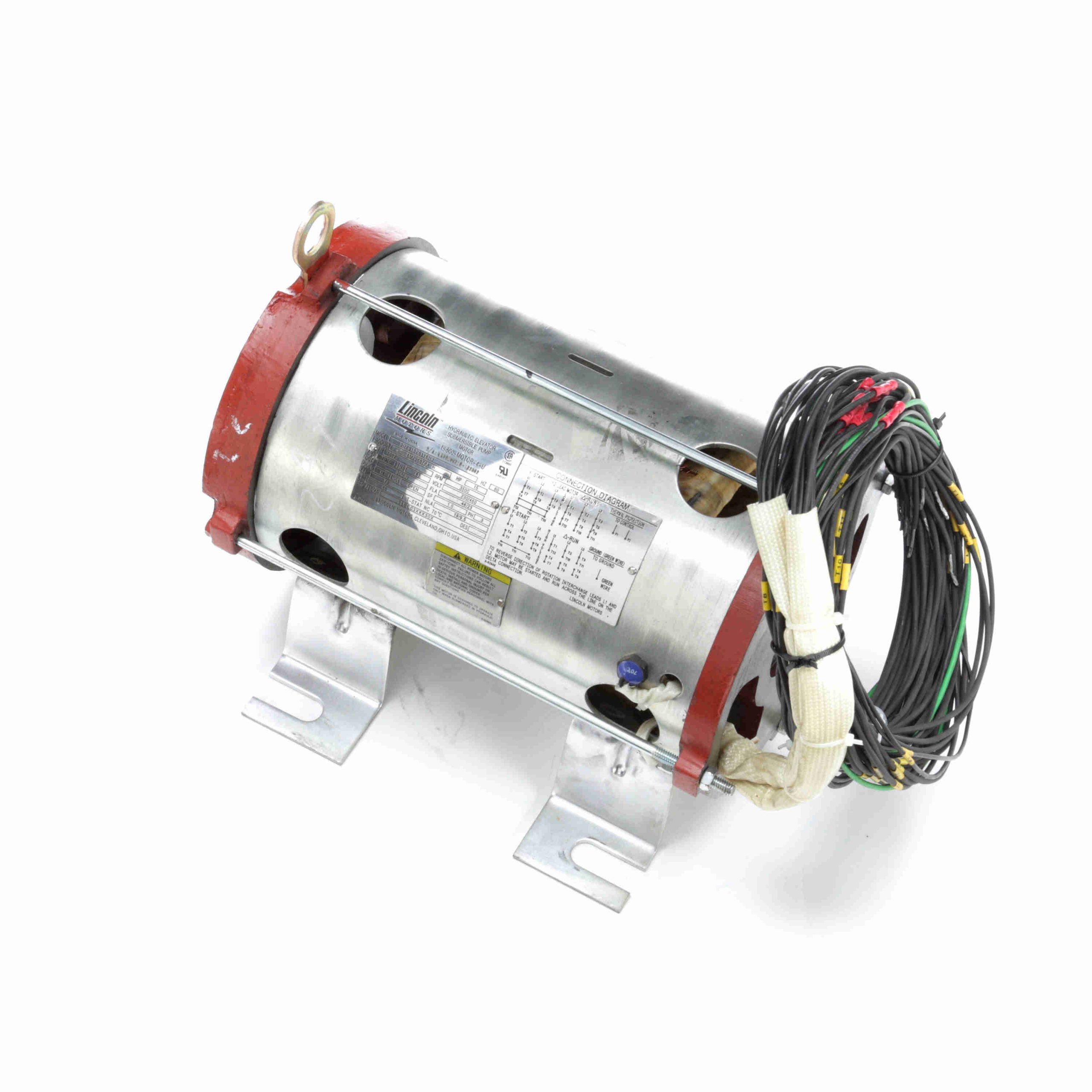

LM29657 – Leeson 15 HP Elevator Duty Motor, 3 phase, 3600 RPM, 230/460 V, 160Z Frame, ODP – LM29657
LM29657 Leeson Elevator Duty Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720399910 |
Weight: |
110 LB |
| Packaged Length: |
17 IN |
Packaged Width: |
13.5 IN |
| Packaged Height: |
16 IN |
Nameplate Specifications
| Output HP: |
15 Hp |
Output KW: |
11.2 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
42.0/21.0 A |
Speed: |
3525 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
82.5 % |
Power Factor: |
81.3 |
| Duty: |
120/80 Starts/Hour |
Insulation Class: |
F |
| Design Code: |
NO DESIGN CODE |
KVA Code: |
H |
| Frame: |
160TZ |
Enclosure: |
Drip Proof |
| Thermal Protection: |
Thermostats (N/C) |
Ambient Temperature: |
70 °C |
| Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6307 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Wye Start Delta Run |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
1.27 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
14.53 in |
| Frame Length: |
12.00 in |
Shaft Diameter: |
1.25 in |
| Shaft Extension: |
2.92 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
125.00 |
610.0 |
36.00 |
160.0 |
0 |
|
48.0 |
15.00 |
| Full Load |
20.50 |
100.0 |
22.50 |
100.0 |
3,500 |
|
|
15.00 |
| No Load |
12.50 |
61.0 |
0.00 |
0.0 |
3,600 |
|
|
15.00 |
| 1/3 |
120.00 |
585.0 |
31.00 |
138.0 |
1,200 |
|
|
15.00 |
| Pull-Up |
115.00 |
561.0 |
32.00 |
142.0 |
1,800 |
|
|
15.00 |
| Break-Down |
100.00 |
488.0 |
62.00 |
276.0 |
2,975 |
|
75.0 |
15.00 |
| 2/3 |
105.00 |
512.0 |
38.00 |
169.0 |
2,400 |
|
|
15.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
12.50 |
13.00 |
14.50 |
17.00 |
20.50 |
23.00 |
24.50 |
| Rated Output (KW) |
0.70 |
3.50 |
6.50 |
9.50 |
13.00 |
15.00 |
16.50 |
| Efficiency (%) |
0.0 |
79.5 |
86.5 |
87.5 |
86.5 |
86.5 |
85.5 |
| Power Factor (%) |
7.0 |
35.0 |
56.0 |
70.0 |
78.5 |
81.5 |
83.0 |
| Speed (RPM) |
3,600 |
3,578 |
3,555 |
3,535 |
3,500 |
3,490 |
3,480 |
| Temp. Rise @ FL |
0.0 |
|
|
|
0.0 |
|
|
| Torque (ft-lbs) |
0.00 |
5.50 |
11.00 |
16.50 |
22.50 |
26.00 |
28.50 |
