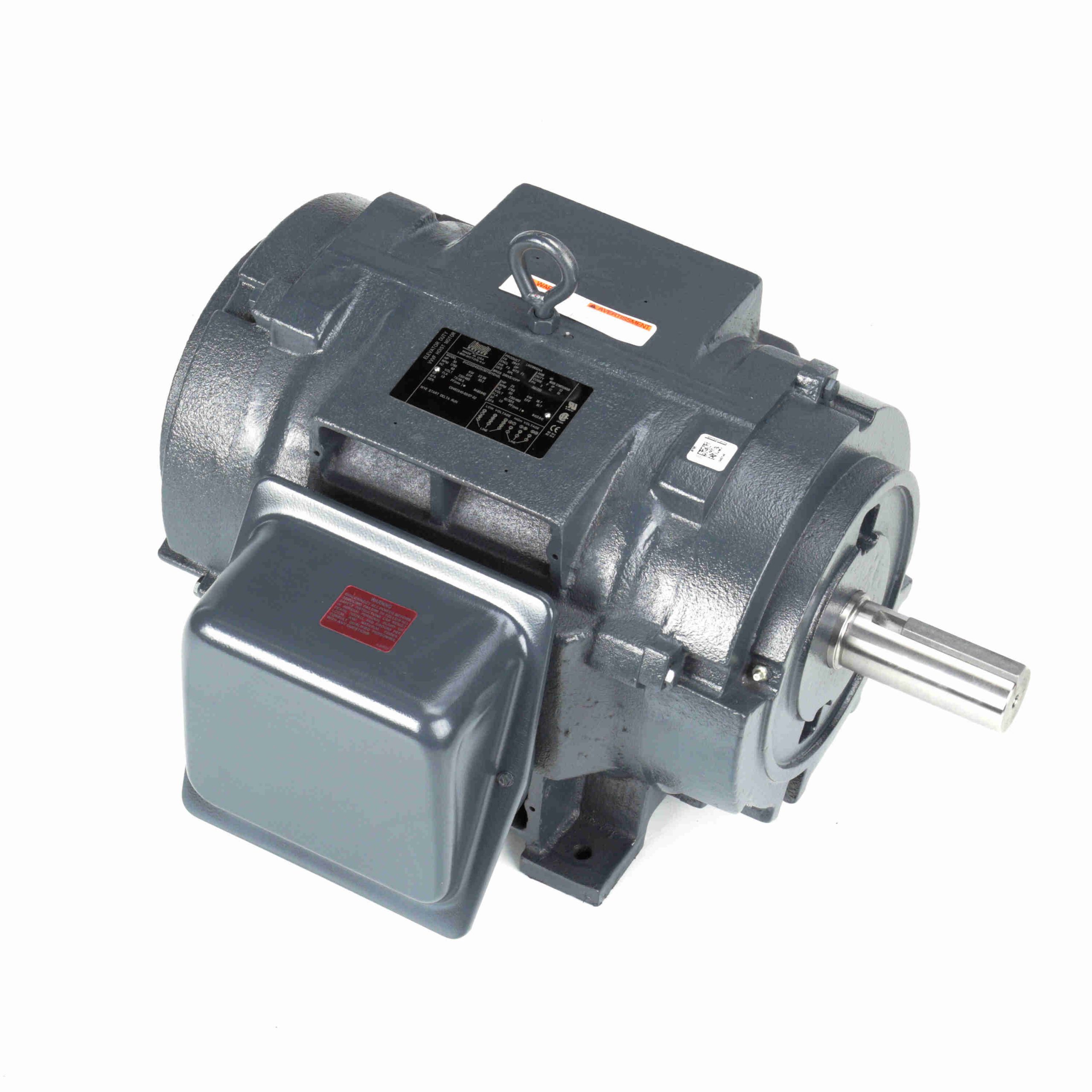

LM29851 – Leeson 30 HP Elevator Duty Motor, 3 phase, 1800 RPM, 230/460 V, 284T Frame, ODP – LM29851
LM29851 Leeson Elevator Duty Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720103197 |
Weight: |
316 LB |
| Packaged Length: |
27 IN |
Packaged Width: |
22 IN |
| Packaged Height: |
19.93 IN |
Nameplate Specifications
| Output HP: |
30 Hp |
Output KW: |
22.4 kW |
| Frequency: |
60 Hz |
Voltage: |
230/460 V |
| Current: |
61.0/30.5 A |
Speed: |
1760 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
90.2 % |
Power Factor: |
85 |
| Duty: |
120/80 Starts/Hour |
Insulation Class: |
F |
| Design Code: |
INV |
KVA Code: |
F |
| Frame: |
284T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
311 |
Opp Drive End Bearing Size: |
210 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Wye Start Delta Run |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.399 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
23.49 in |
| Frame Length: |
12.75 in |
Shaft Diameter: |
1.875 in |
| Shaft Extension: |
4.63 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
140.00 |
459.0 |
125.00 |
168.0 |
1,450 |
|
|
25.00 |
| Full Load |
30.50 |
100.0 |
74.50 |
100.0 |
1,765 |
|
|
25.00 |
| No Load |
10.80 |
35.0 |
0.00 |
0.0 |
1,800 |
|
|
25.00 |
| Locked-Rotor |
170.00 |
557.0 |
120.00 |
161.0 |
0 |
|
38.0 |
25.00 |
| 1/3 |
165.00 |
541.0 |
105.00 |
141.0 |
1,000 |
|
|
25.00 |
| Break-Down |
105.00 |
344.0 |
170.00 |
228.0 |
1,650 |
|
66.0 |
25.00 |
| Pull-Up |
155.00 |
508.0 |
115.00 |
154.0 |
1,250 |
|
|
25.00 |
