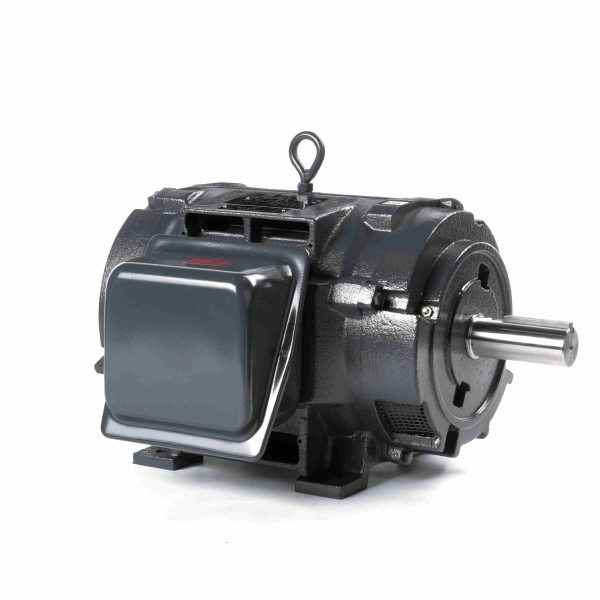

LM30099 – Leeson 30 HP Elevator Duty Motor, 3 phase, 3600 RPM, 200 V, 284T Frame, ODP – LM30099
LM30099 Leeson Elevator Duty Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720248294 |
Weight: |
320 LB |
| Packaged Length: |
16.38 IN |
Packaged Width: |
10.5 IN |
| Packaged Height: |
8.12 IN |
Nameplate Specifications
| Output HP: |
30 Hp |
Output KW: |
22.4 kW |
| Frequency: |
60 Hz |
Voltage: |
200 V |
| Current: |
83.0 A |
Speed: |
3530 rpm |
| Service Factor: |
1 |
Phase: |
3 |
| Efficiency: |
91 % |
Power Factor: |
85.5 |
| Duty: |
120/80 Starts/Hour |
Insulation Class: |
F |
| Design Code: |
B |
KVA Code: |
C |
| Frame: |
284T |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
311 |
Opp Drive End Bearing Size: |
210 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
12 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Wye Start Delta Run |
| Poles: |
2 |
Rotation: |
Reversible |
| Resistance Main: |
.364 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Cast Iron |
| Shaft Type: |
T |
Overall Length: |
23.49 in |
| Frame Length: |
12.75 in |
Shaft Diameter: |
1.875 in |
| Shaft Extension: |
4.63 in |
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 2/3 |
170.00 |
472.0 |
87.00 |
196.0 |
2,500 |
|
|
30.00 |
| Break-Down |
126.00 |
350.0 |
110.00 |
247.0 |
3,200 |
|
70.0 |
30.00 |
| 1/3 |
193.00 |
536.0 |
63.00 |
142.0 |
900 |
|
|
30.00 |
| Full Load |
36.00 |
100.0 |
44.50 |
100.0 |
3,530 |
|
|
30.00 |
| Pull-Up |
182.00 |
506.0 |
72.00 |
162.0 |
1,930 |
|
|
30.00 |
| Locked-Rotor |
200.00 |
556.0 |
67.00 |
151.0 |
0 |
|
38.0 |
30.00 |
| No Load |
10.50 |
29.0 |
0.00 |
0.0 |
3,600 |
|
|
30.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
24.15 |
32.20 |
46.00 |
62.10 |
82.80 |
92.00 |
103.50 |
| Rated Output (KW) |
1.00 |
6.00 |
12.00 |
18.00 |
24.50 |
27.00 |
31.00 |
| Efficiency (%) |
0.0 |
90.0 |
91.7 |
91.7 |
91.0 |
91.0 |
90.0 |
| Power Factor (%) |
11.0 |
56.0 |
76.5 |
84.0 |
85.5 |
85.5 |
86.5 |
| Speed (RPM) |
3,600 |
3,585 |
3,570 |
3,550 |
3,530 |
3,520 |
3,505 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
40.0 |
50.0 |
60.0 |
| Torque (ft-lbs) |
0.00 |
11.00 |
22.00 |
33.50 |
44.50 |
50.00 |
56.00 |
