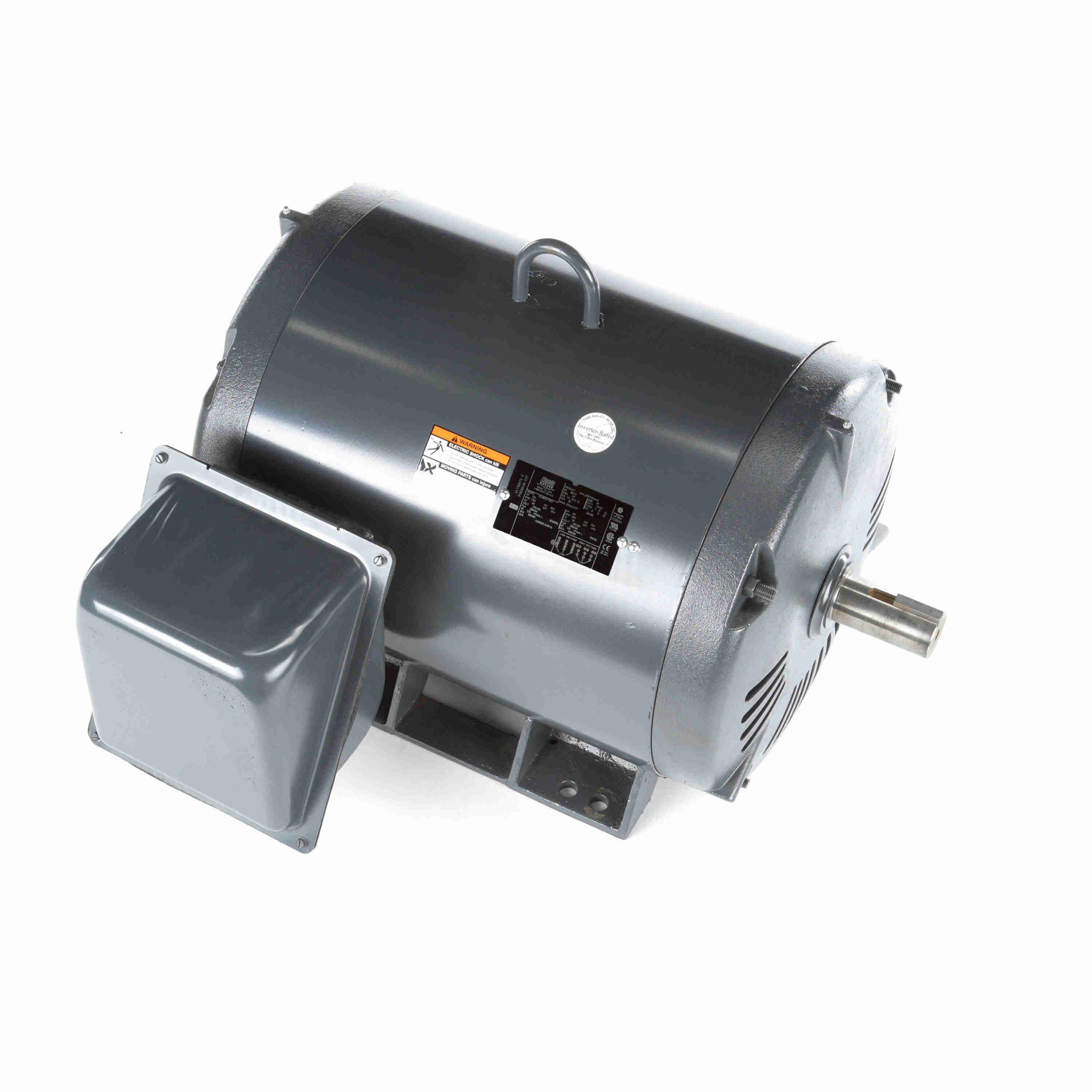

LM32759 – Leeson 125 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 405TS Frame, ODP – LM32759
LM32759 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720002841 |
Weight: |
965 LB |
| Packaged Length: |
34 IN |
Packaged Width: |
32 IN |
| Packaged Height: |
26.1 IN |
Nameplate Specifications
| Output HP: |
125 Hp |
Output KW: |
93.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
230/460 V |
| Current: |
306.0/153.0 A |
Speed: |
1782 rpm |
| Service Factor: |
1.25 |
Phase: |
3 |
| Efficiency: |
95.4 % |
Power Factor: |
80.5 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
BC |
KVA Code: |
F |
| Frame: |
405TS |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
315 |
Opp Drive End Bearing Size: |
313 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Wye Start Delta Run |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.042 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
TS |
Overall Length: |
30.68 in |
| Frame Length: |
18.85 in |
Shaft Diameter: |
2.125 in |
| Shaft Extension: |
4.25 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| 1/3 |
780.00 |
510.0 |
615.00 |
167.0 |
600 |
|
|
125.00 |
| Pull-Up |
740.00 |
484.0 |
650.00 |
177.0 |
900 |
|
|
125.00 |
| No Load |
54.50 |
36.0 |
0.00 |
0.0 |
1,800 |
|
|
125.00 |
| Break-Down |
535.00 |
350.0 |
775.00 |
211.0 |
1,715 |
|
61.0 |
125.00 |
| 2/3 |
700.00 |
458.0 |
760.00 |
207.0 |
1,200 |
|
|
125.00 |
| Locked-Rotor |
825.00 |
539.0 |
725.00 |
197.0 |
0 |
|
34.0 |
125.00 |
| Full Load |
153.00 |
100.0 |
368.00 |
100.0 |
1,782 |
|
|
125.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
54.50 |
66.00 |
88.50 |
118.00 |
153.00 |
175.00 |
190.00 |
| Rated Output (KW) |
1.70 |
25.00 |
49.00 |
73.00 |
98.00 |
113.00 |
123.00 |
| Efficiency (%) |
0.0 |
92.4 |
95.0 |
95.4 |
95.4 |
95.0 |
94.5 |
| Power Factor (%) |
3.5 |
48.0 |
69.5 |
78.0 |
80.5 |
81.0 |
81.5 |
| Speed (RPM) |
1,800 |
1,795 |
1,792 |
1,787 |
1,782 |
1,780 |
1,777 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
48.0 |
70.0 |
85.0 |
| Torque (ft-lbs) |
0.00 |
91.50 |
183.00 |
276.00 |
368.00 |
424.00 |
462.00 |
