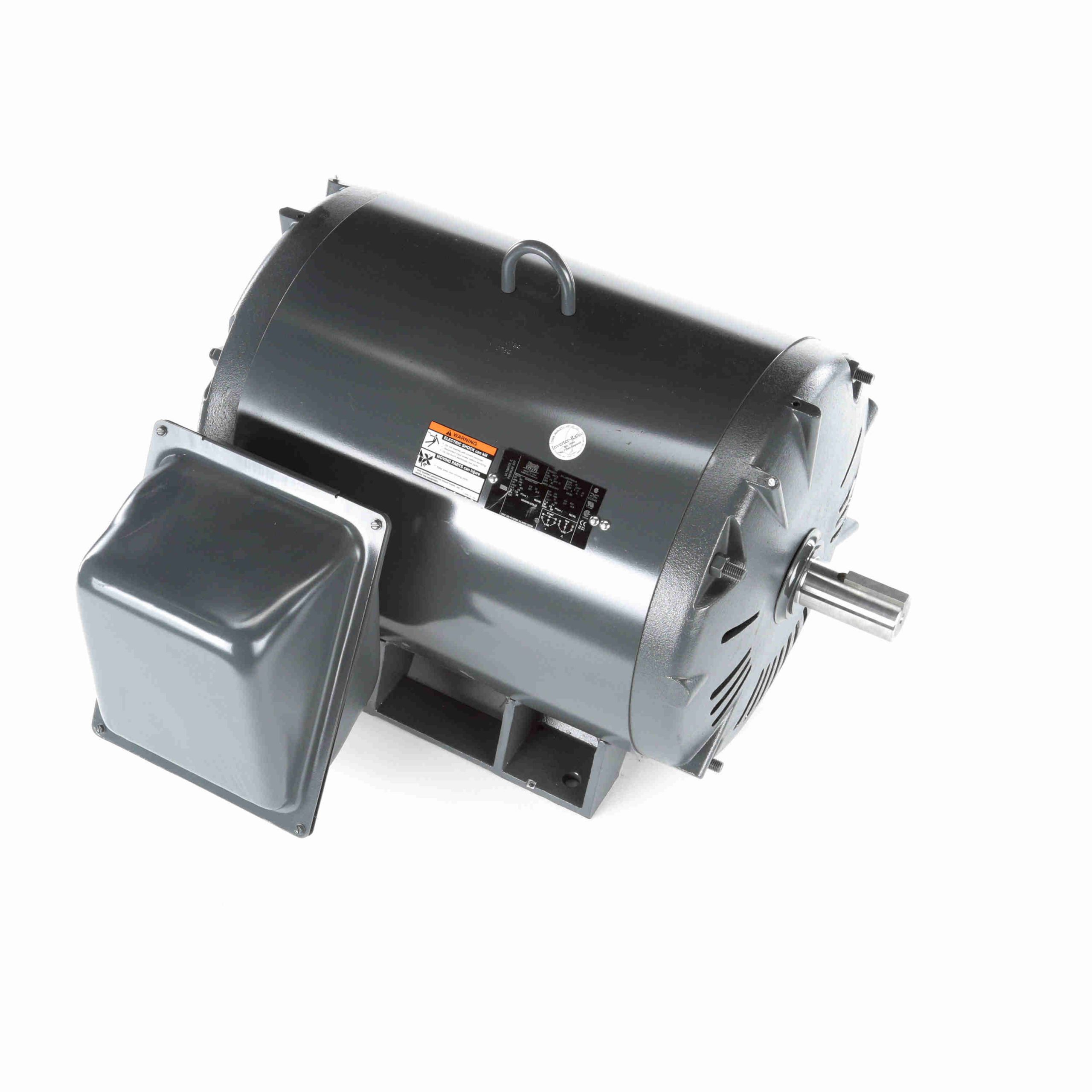

LM32760 – Leeson 150 HP General Purpose Motor, 3 phase, 1800 RPM, 460 V, 444TS Frame, ODP – LM32760
LM32760 Leeson Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
691720002858 |
Weight: |
0 LB |
| Packaged Length: |
37 IN |
Packaged Width: |
34 IN |
| Packaged Height: |
27.62 IN |
Nameplate Specifications
| Output HP: |
150 Hp |
Output KW: |
112.0 kW |
| Frequency: |
60/50 Hz |
Voltage: |
460 V |
| Current: |
170.0 A |
Speed: |
1788 rpm |
| Service Factor: |
1.25 |
Phase: |
3 |
| Efficiency: |
95.8 % |
Power Factor: |
86 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
BC |
KVA Code: |
G |
| Frame: |
444TS |
Enclosure: |
Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
318 |
Opp Drive End Bearing Size: |
315 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
IP Code: |
22 |
Technical Specifications
| Electrical Type: |
Squirrel Cage Induction Run |
Starting Method: |
Wye Start Delta Run |
| Poles: |
4 |
Rotation: |
Reversible |
| Resistance Main: |
.026 Ohms |
Mounting: |
Rigid base |
| Motor Orientation: |
HORIZONTAL |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
TS |
Overall Length: |
33.50 in |
| Frame Length: |
21.27 in |
Shaft Diameter: |
2.375 in |
| Shaft Extension: |
4.75 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
(%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Pull-Up |
1,035.00 |
609.0 |
800.00 |
181.0 |
900 |
|
|
150.00 |
| No Load |
50.50 |
30.0 |
0.00 |
0.0 |
1,800 |
|
|
150.00 |
| 1/3 |
1,095.00 |
644.0 |
750.00 |
170.0 |
600 |
|
|
150.00 |
| Full Load |
170.00 |
100.0 |
441.00 |
100.0 |
1,785 |
|
|
150.00 |
| 2/3 |
980.00 |
576.0 |
925.00 |
210.0 |
1,200 |
|
|
150.00 |
| Locked-Rotor |
1,085.00 |
638.0 |
885.00 |
201.0 |
0 |
|
30.5 |
150.00 |
| Break-Down |
750.00 |
441.0 |
1,025.00 |
232.0 |
1,730 |
|
61.5 |
150.00 |
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
| Current (Amps) |
50.00 |
66.00 |
95.50 |
131.00 |
170.00 |
195.00 |
213.00 |
| Rated Output (KW) |
1.90 |
30.00 |
58.50 |
87.50 |
117.00 |
135.00 |
147.00 |
| Efficiency (%) |
0.0 |
93.0 |
95.4 |
95.8 |
95.8 |
95.4 |
95.4 |
| Power Factor (%) |
4.0 |
57.0 |
77.0 |
83.5 |
86.0 |
86.0 |
86.5 |
| Speed (RPM) |
1,800 |
1,797 |
1,795 |
1,790 |
1,788 |
1,786 |
1,784 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
45.0 |
60.0 |
70.0 |
| Torque (ft-lbs) |
0.00 |
110.00 |
220.00 |
330.00 |
441.00 |
507.00 |
552.00 |
