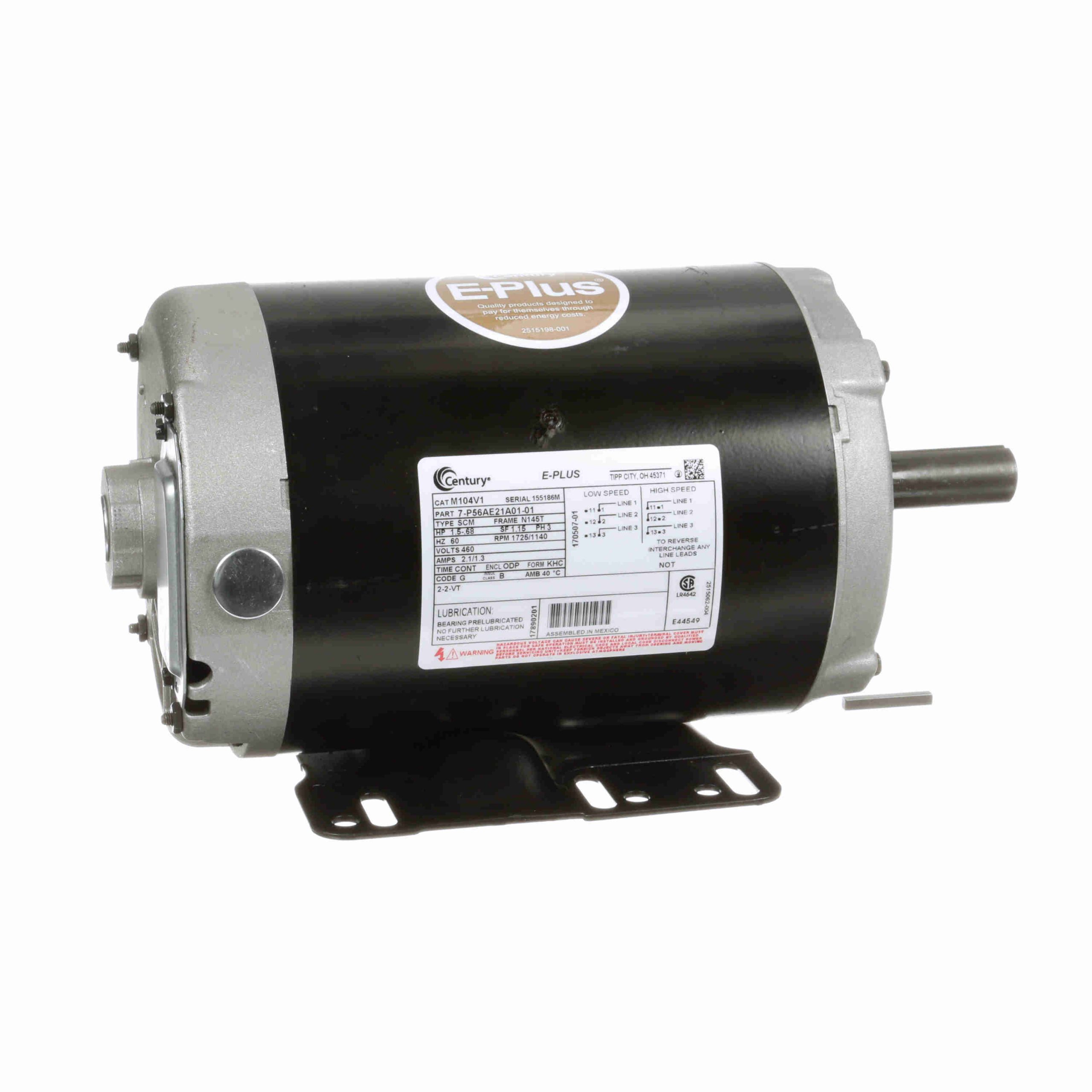

M104V1 – Century 1.5-.68 HP 2 speed General Purpose Motor, 3 phase, 1800/1200 RPM, 460 V, 145T Frame, ODP – M104V1

M104V1 – Century 1.5-.68 HP 2 speed General Purpose Motor, 3 phase, 1800/1200 RPM, 460 V, 145T Frame, ODP – M104V1

M104V1 Century Three Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Rigid base
  • Ball bearings

Century Motors
Regal Beloit

Description

M104V1 – Century 1.5-.68 HP 2 speed General Purpose Motor, 3 phase, 1800/1200 RPM, 460 V, 145T Frame, ODP – M104V1

M104V1 Century Three Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674026149 Weight: 33 LB
Packaged Length: 16 IN Packaged Width: 9 IN
Packaged Height: 8 IN

Nameplate Specifications

Output HP: 1.5-.68 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 460 V
Current: 2.1/1.3 A Speed: 1725/1140 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: B
Frame: N145T Enclosure: Open Drip Proof
Thermal Protection: None Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Polyphase, Induction Type, Multi-Speed Starting Method: Across The Line
Poles: 4/6 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 13.06 in
Frame Length: 7.25 in Shaft Diameter: 0.875 in
Shaft Extension: 2.31 in
