Description

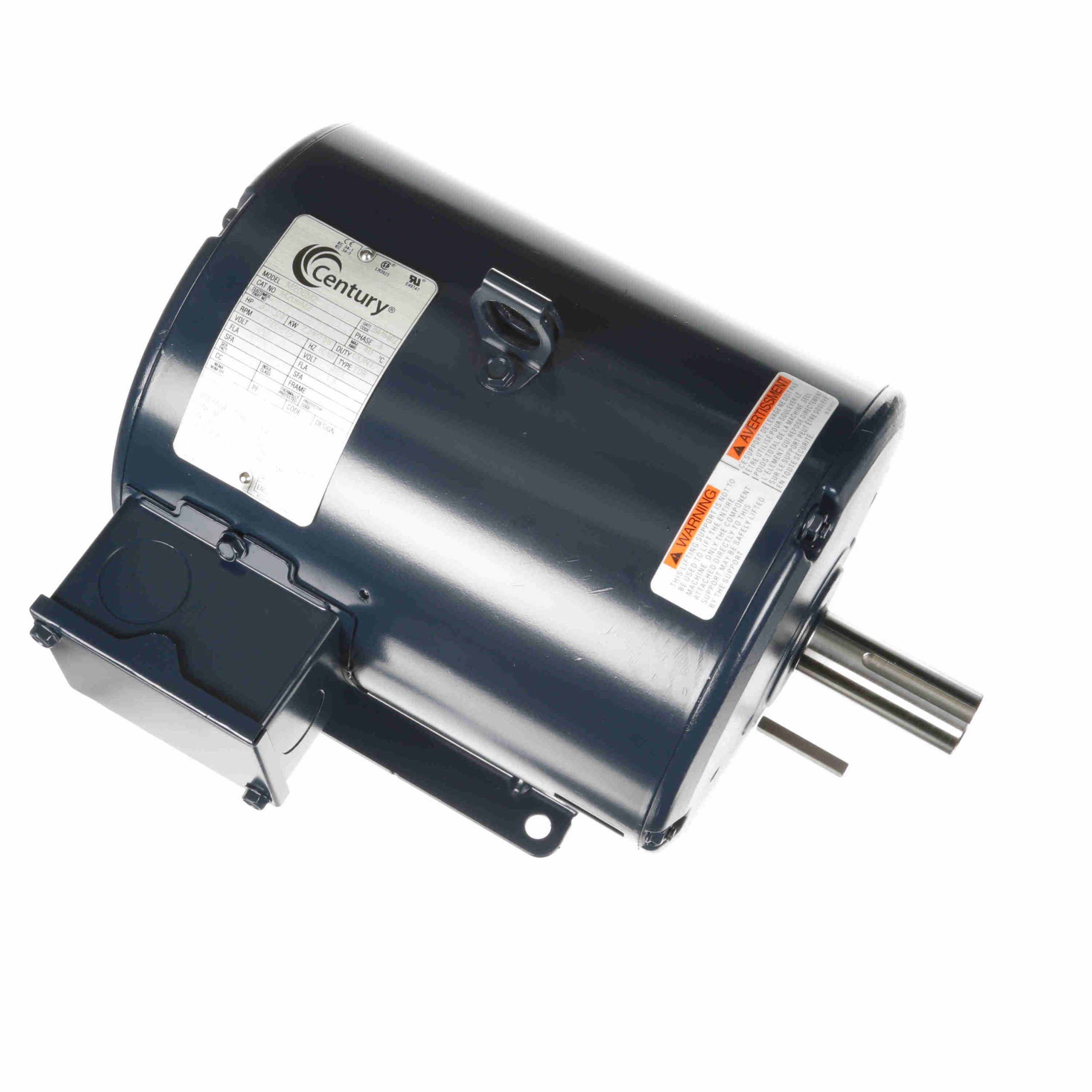

M206M2 – Century 3/0.75 HP General Purpose Motor, 3 phase, 1800 RPM, 460 V, 182T Frame, ODP – M206M2
M206M2 Century Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674026293 |
Weight: |
65 LB |
| Packaged Length: |
17.94 IN |
Packaged Width: |
13.06 IN |
| Packaged Height: |
12.88 IN |
Nameplate Specifications
| Output HP: |
3/0.75 Hp |
Output KW: |
2.2 kW |
| Frequency: |
60 Hz |
Voltage: |
460 V |
| Current: |
4.1/1.8 A |
Speed: |
1760/875 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
182T |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
None |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
Technical Specifications
| Electrical Type: |
Polyphase |
Starting Method: |
Across The Line |
| Poles: |
4/ 8 |
Rotation: |
Reversible |
| Mounting: |
Rigid base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
13.69 in |
| Frame Length: |
9.50 in |
Shaft Diameter: |
1.25 in |
| Shaft Extension: |
2.81 in |
