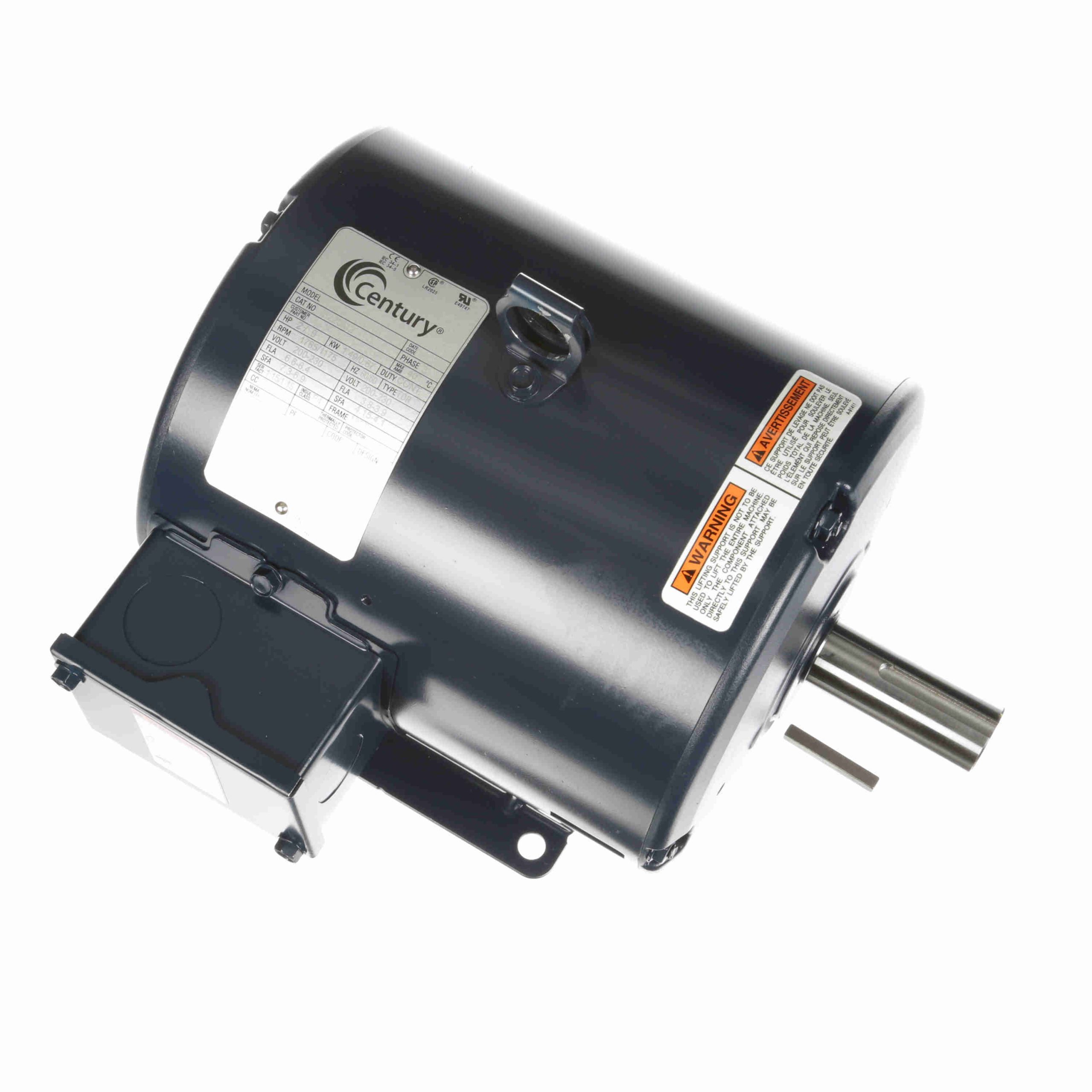

M220M2 – Century 2/0.9 HP 2 speed General Purpose Motor, 3 phase, 1800/1200 RPM, 200-230 V, 182T Frame, ODP – M220M2

M220M2 – Century 2/0.9 HP 2 speed General Purpose Motor, 3 phase, 1800/1200 RPM, 200-230 V, 182T Frame, ODP – M220M2

M220M2 Century Three Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Ball bearings

Century Motors
Regal Beloit

Description

M220M2 – Century 2/0.9 HP 2 speed General Purpose Motor, 3 phase, 1800/1200 RPM, 200-230 V, 182T Frame, ODP – M220M2

M220M2 Century Three Phase ODP Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674067203 Weight: 59 LB
Packaged Length: 17.94 IN Packaged Width: 13.06 IN
Packaged Height: 12.88 IN

Nameplate Specifications

Output HP: 2/0.9 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 200-230 V
Current: 6.6-6.4/3.8-3.9 A Speed: 1765/1175 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: F
Frame: 182T Enclosure: Open Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Electrical Type: Polyphase Starting Method: Across The Line
Poles: 4/6 Rotation: Reversible
Mounting: Rigid base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.69 in
Frame Length: 8.50 in Shaft Diameter: 1.125 in
Shaft Extension: 2.81 in
